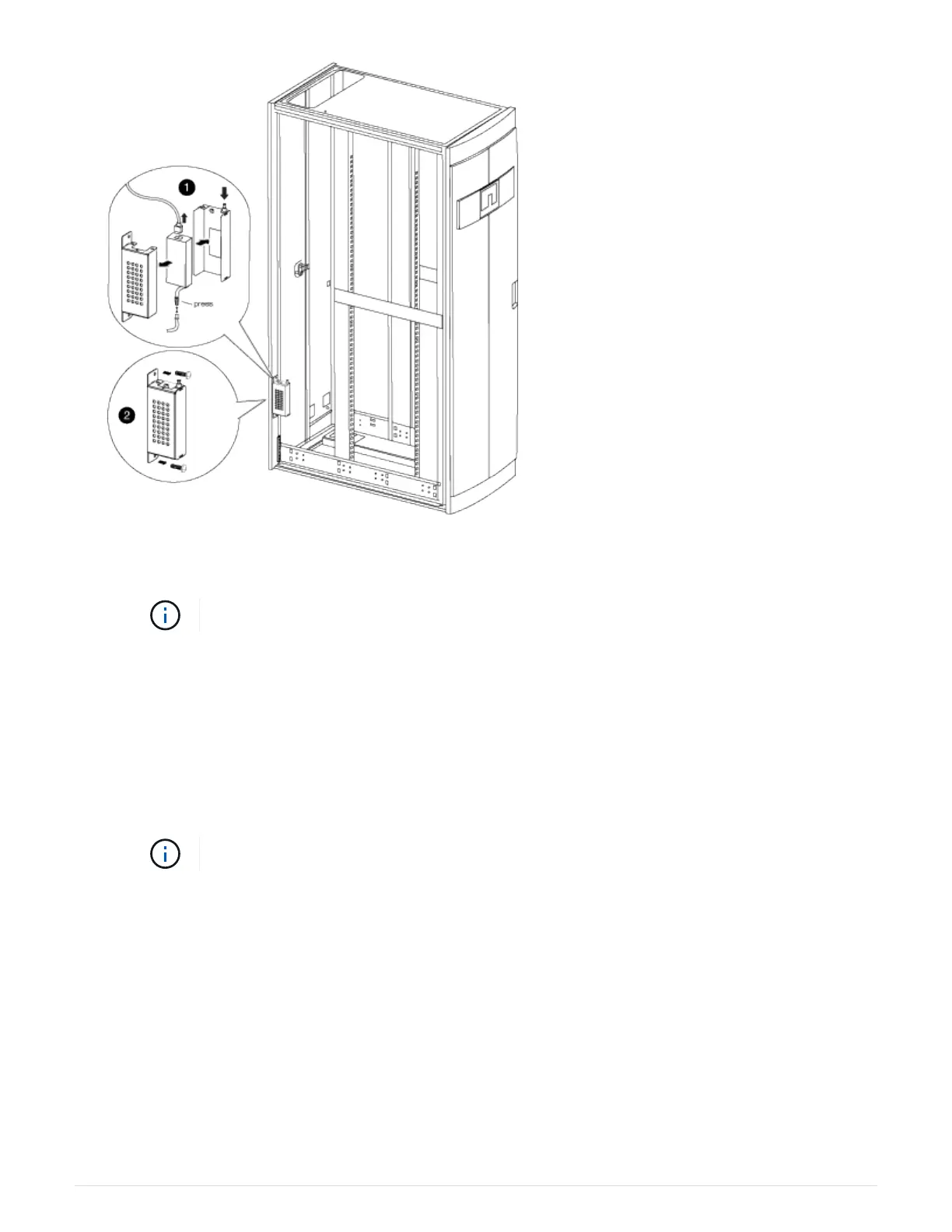

a. Lift the retaining pin on the power supply housing, and then remove the housing cover by rotating it
downward and lifting it off the rear power supply housing.
The power supply is attached to the power supply housing with a hook and loop patch.
b. Disconnect the power supply from the illuminated badge cable, and then set the power supply and
power supply cover to the side.
c. Remove the screws from the top and bottom of the power supply housing that is attached to the system
cabinet frame, and then remove the power supply housing.
3. Install the power supply and power supply housing on the opposite side of the system cabinet:
a. Locate the two screw holes next to each other on the cabinet frame, and then attach the top of the
power supply housing to the bottom-most of the two screw holes.
You might need to remove the bottom cable retention strap, if present.
b. Secure the bottom of the power supply housing to the system cabinet frame.
c. Install the power supply cover and power supply by aligning the cover hooks with the power supply
back, pulling the plunger up on the cover, rotating the plunger closed, and then releasing the plunger.
4. Remove the bezel power supply conduit by removing the conduit retaining clips from the retaining clips,
and then slide the conduit off the power cable.
Keep the retaining clips and screws for installing the conduit on the opposite side of the cabinet.
