Controller-to-stack cabling worksheets and cabling examples for common multipath HA configurations
- shelves with IOM12 modules
You can use the controller-to-stack cabling worksheets and cabling examples to cable
your HA pair as a multipath HA configuration.
• If needed, you can refer to
SAS cabling rules for information about supported configurations, the controller
slot numbering convention, shelf-to-shelf connectivity, and controller-to-shelf connectivity (including the use
of port pairs).
• If needed, you can refer to
How to read a worksheet to cable controller-to-stack connections for
multipathed connectivity
.

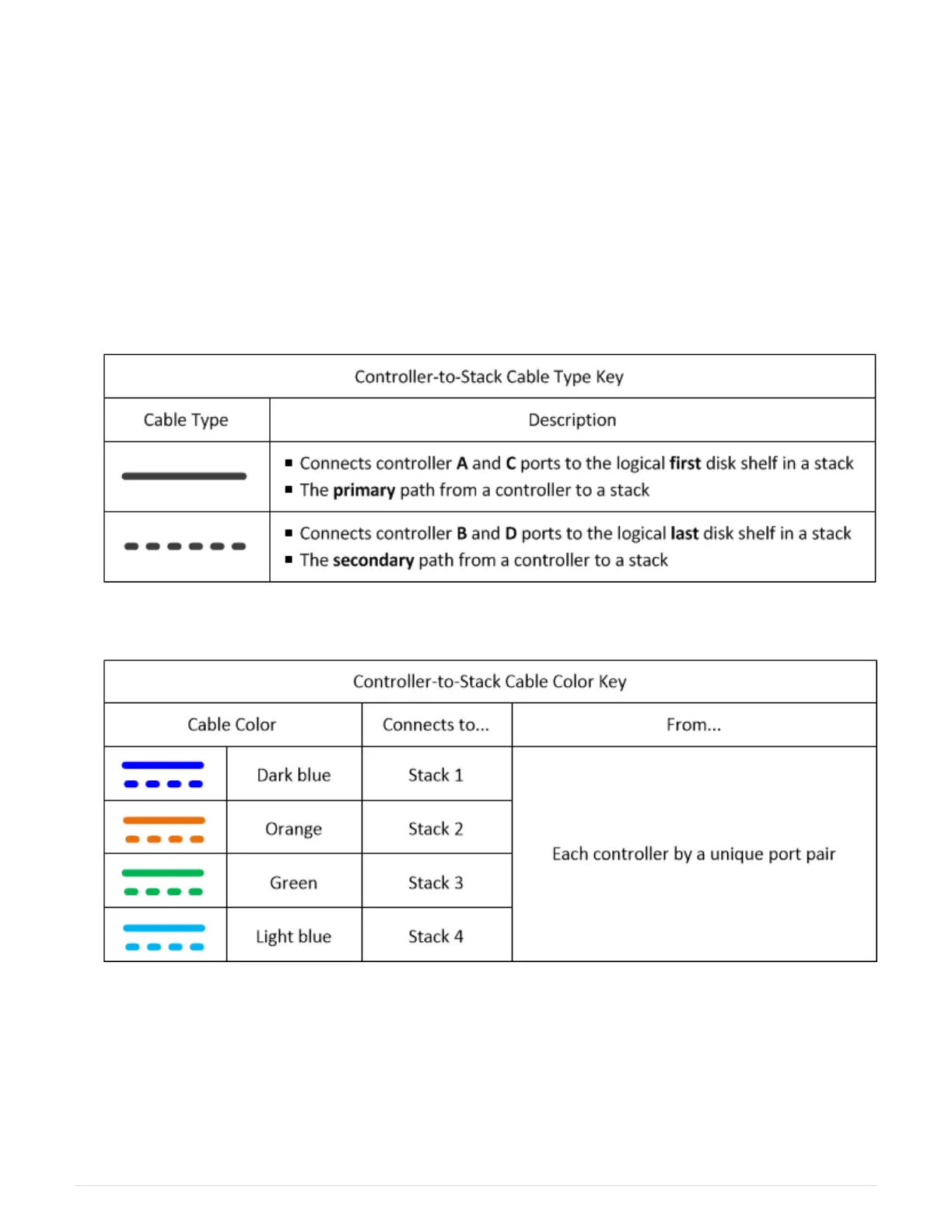

• Cabling examples show controller-to-stack cables as solid or dashed to distinguish controller A and C port
connections from controller B and D port connections.
• Cables in the cabling examples and their corresponding port pairs in the worksheets are color-coded to
distinguish connectivity to each stack in the HA pair.
• Worksheets and cabling examples show cabling port pairs in the order in which they are listed in the
worksheet.
Controller-to-stack cabling worksheets and cabling examples for multipath HA configurations with quad-port SAS HBAs
You can use the completed controller-to-stack cabling worksheets and cabling examples
to cable common multipath HA configurations that have quad-port SAS HBAs. These
controllers do not have onboard SAS ports.
