shelf: storage shelf location-led modify -shelf-name shelf_name -led-status on
A disk shelf has three location LEDs: one on the operator display panel and one on each IOM12 module.
Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same command,
but using the off option.
• If needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and
location of disk shelf LEDs on the operator display panel and FRU components.
• The DS460C drive shelf consist of five drive drawers (drive drawer 1 at the top through drive drawer 5 at
the bottom) that each contain 12 drive slots.

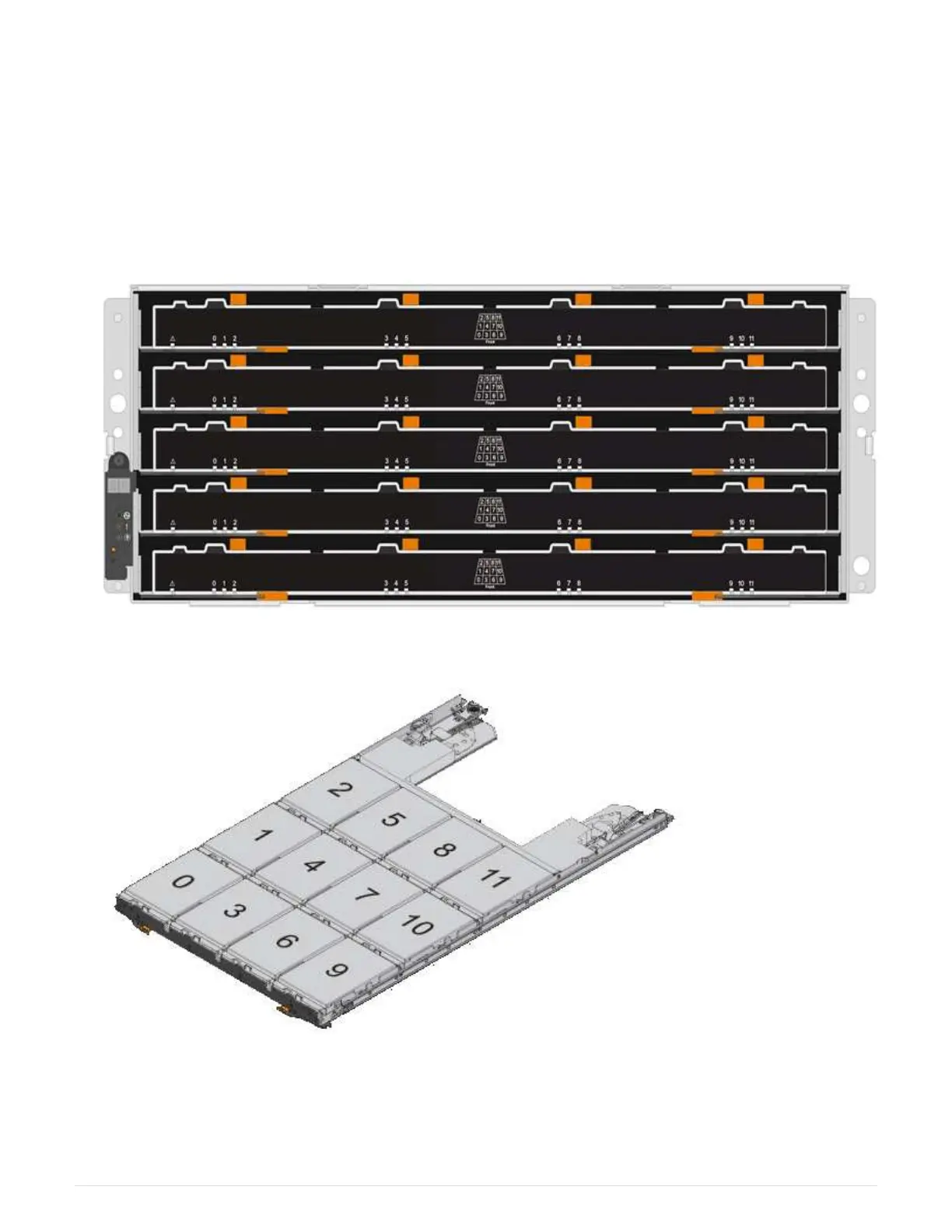

• The following illustration shows how the drives are numbered from 0 to 11 in each drive drawer within the
shelf.
Steps
1. If you want to manually assign disk ownership for the replacement disk drive, you need to disable
automatic drive assignment if it is enabled; otherwise, go to the next step.
1618
