c. While holding both release levers, pull the drive drawer toward you.
d. Remove the drive drawer from the drive shelf.
Installing a drive drawer
Installing a drive drawer into a drive shelf entails sliding the drawer into the empty slot,
installing the drives, and replacing the front bezel.
Before you begin
• You know where to install each drive.
• You have obtained the following items:
◦ Replacement drive drawer
◦ Flashlight
Steps
1. From the front of the drive shelf, shine a flashlight into the empty drawer slot, and locate the lock-out
tumbler for that slot.
The lock-out tumbler assembly is a safety feature that prevents you from being able to open more than one
drive drawer at one time.

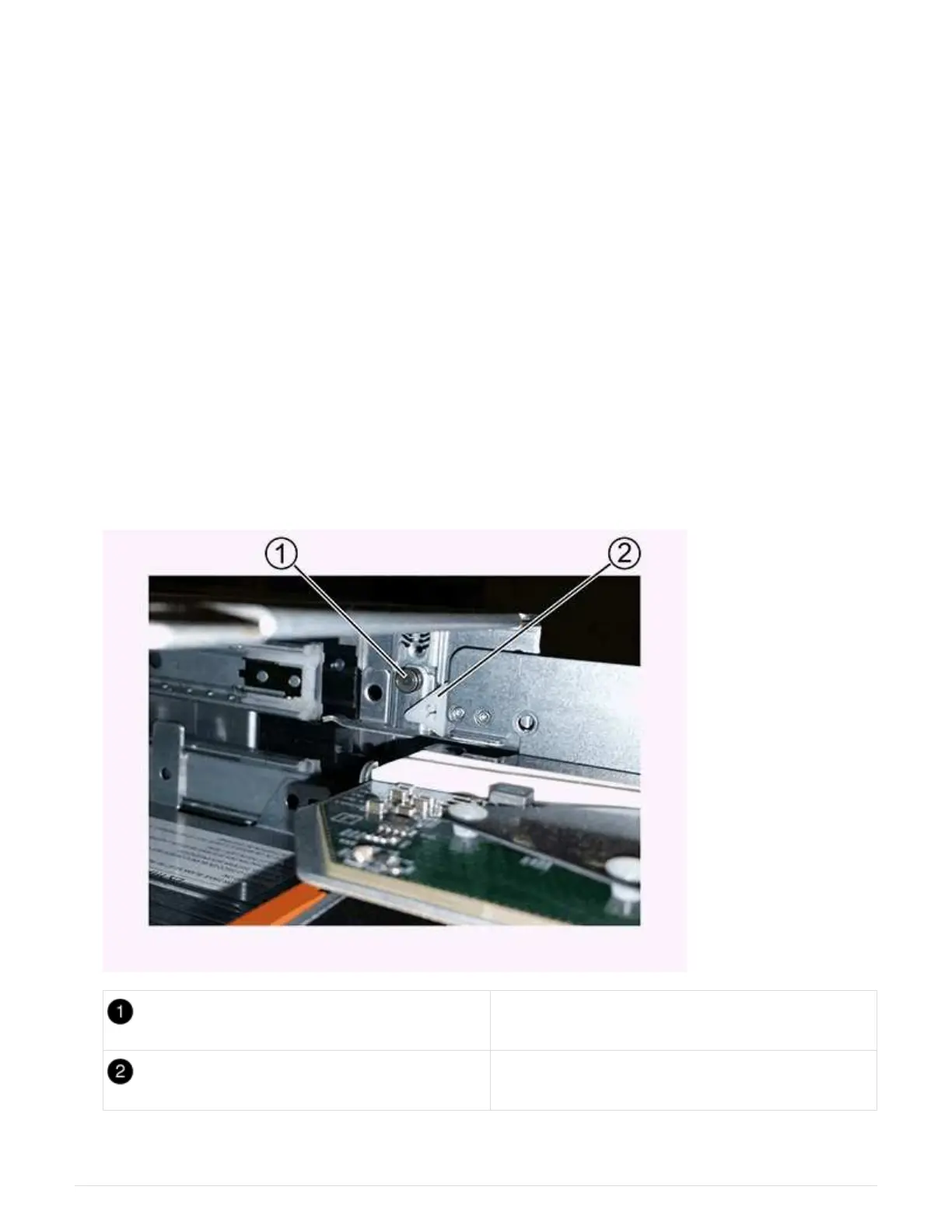

Lock-out tumbler
Drawer guide
2. Position the replacement drive drawer in front of the empty slot and slightly to the right of center.
1636
