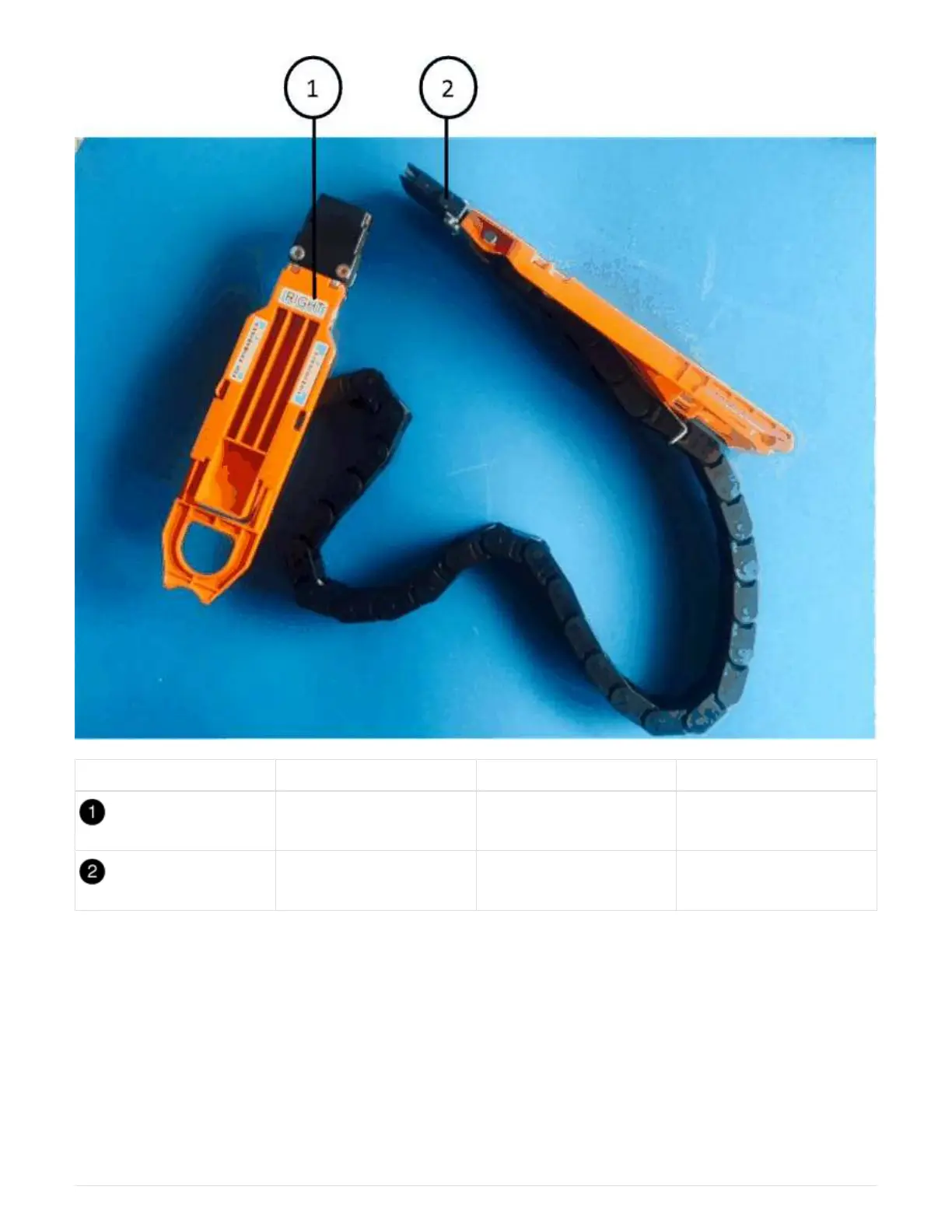

Callout Cable chain Connector Connects to
Right Horizontal Drive drawer
Right Vertical Midplane
Steps
1. Follow these steps to attach the left cable chain:
a. Locate the horizontal and vertical connectors on the left cable chain and the corresponding horizontal
and vertical brackets inside the enclosure.
b. Align both cable chain connectors with their corresponding brackets.
c. Slide the cable chain’s horizontal connector under the guide rail on the horizontal bracket, and push it
in as far as it can go.
The figure shows the guide rail on the left side for the second drive drawer in the enclosure.
1641
