of the bezel:
Replacing the chassis
1. If you are not already grounded, properly ground yourself.
2. Unplug the controller module power supplies from the source.
3. Release the power cable retainers, and then unplug the cables from the power supplies.

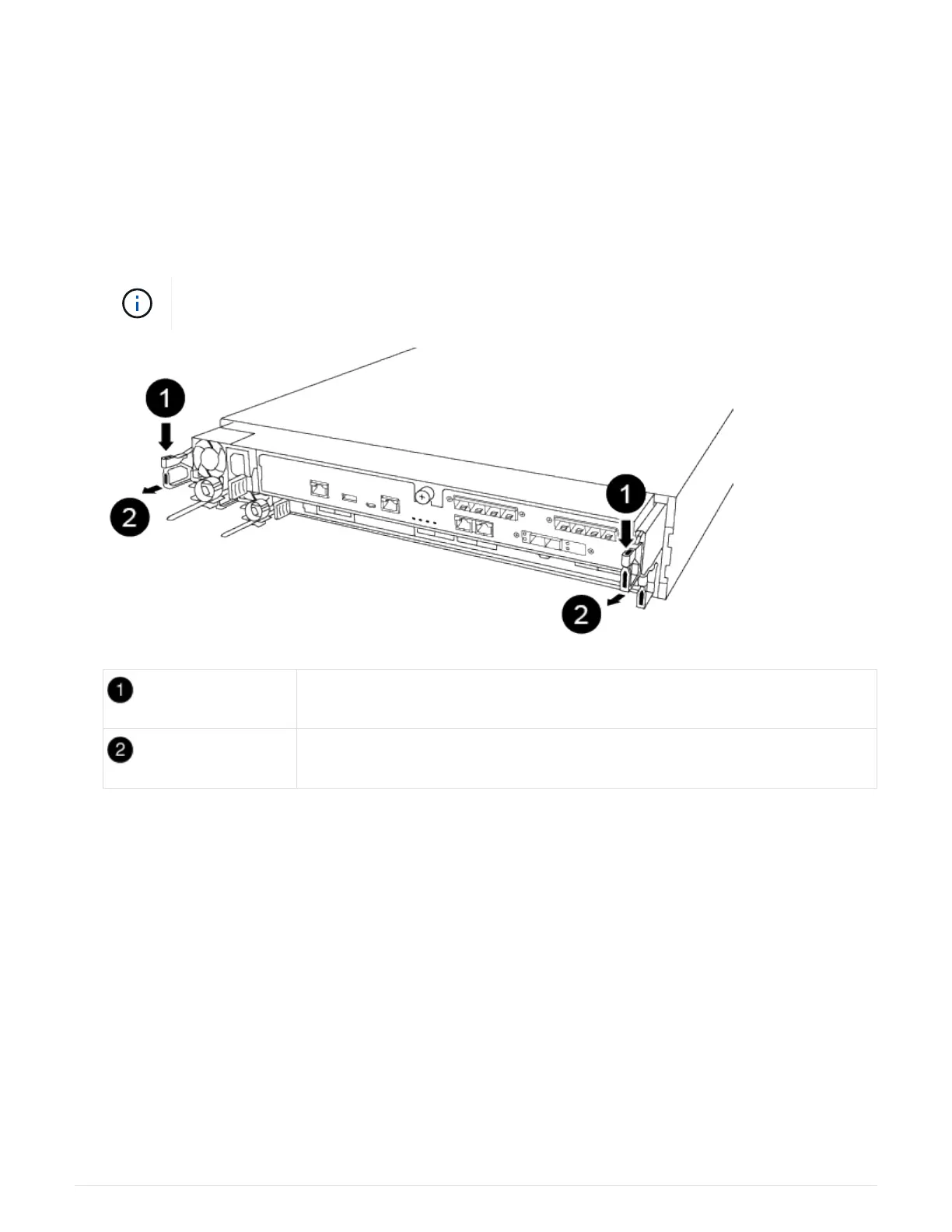

4. Insert your forefinger into the latching mechanism on either side of the controller module, press the lever
with your thumb, and gently pull the controller a few inches out of the chassis.
If you have difficulty removing the controller module, place your index fingers through the
finger holes from the inside (by crossing your arms)
Lever
Latching mechanism
5. Using both hands, grasp the controller module sides and gently pull it out of the chassis and set it on a flat,
stable surface.
6. Set the controller module aside in a safe place, and repeat these steps for the other controller module in
the chassis.
Step 2: Move drives to the new chassis
You need to move the drives from each bay opening in the old chassis to the same bay
opening in the new chassis.
1. Gently remove the bezel from the front of the system.
2. Remove the drives:
a. Press the release button at the top of the carrier face below the LEDs.
b. Pull the cam handle to its fully open position to unseat the drive from the midplane, and then gently
slide the drive out of the chassis.
215
