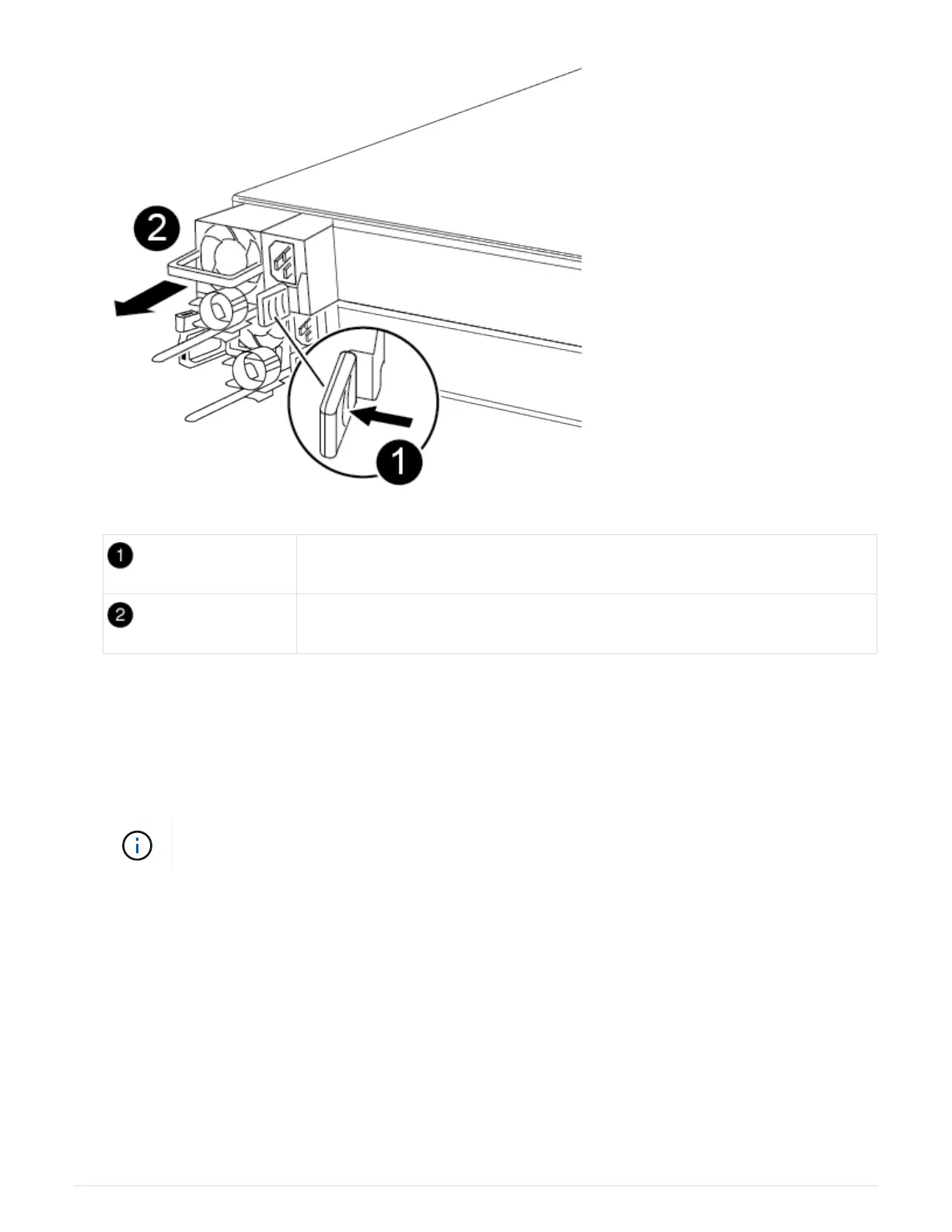

Blue power supply locking tab
Power supply
3. Move the power supply to the new controller module, and then install it.
4. Using both hands, support and align the edges of the power supply with the opening in the controller
module, and then gently push the power supply into the controller module until the locking tab clicks into
place.
The power supplies will only properly engage with the internal connector and lock in place one way.
To avoid damaging the internal connector, do not use excessive force when sliding the
power supply into the system.
Step 3: Move the fans
You must move the fans from the impaired controller module to the replacement module
when replacing a failed controller module.
1. Remove the fan module by pinching the side of the fan module, and then lifting the fan module straight out
of the controller module.
224
