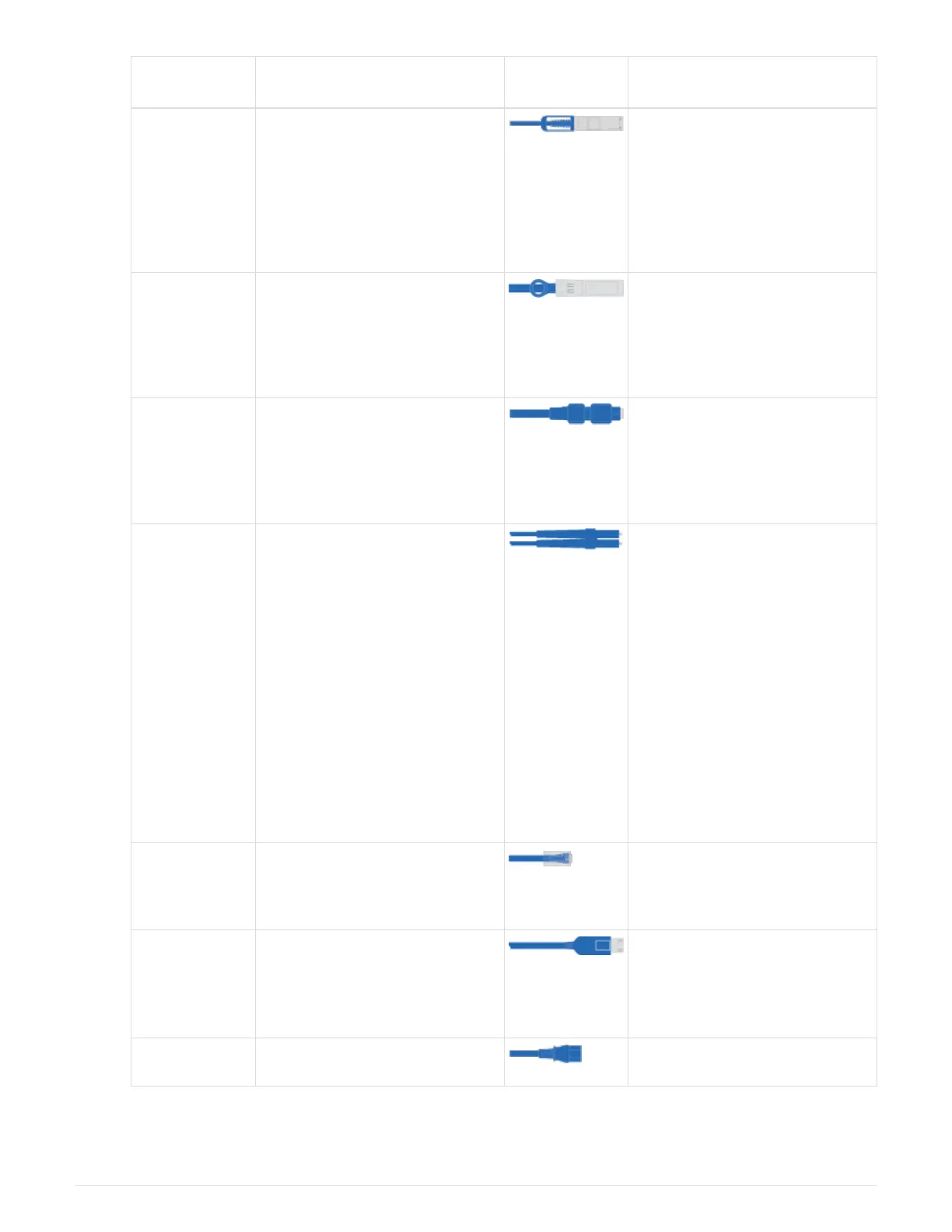

Type of
cable…
Part number and length Connector
type
For…
100 GbE cable
(QSF(28)
X66211A-05 (112-00595), 0.5m
X66211A-1 (112-00573), 1m
X66211A-2 (112-00574), 2m
X66211A-5 (112-00574), 5m
Storage, cluster
interconnect/HA, and Ethernet
data (order-dependent)
40 GbE cable X66211A-1 (112-00573), 1m;
X66211A-3 (112-00543),3m;
X66211A-5 (112-00576), 5m
Storage, cluster
interconnect/HA, and Ethernet
data (order-dependent)
Ethernet cable
- MPO
X66200-2 (112-00326), 2m
X66250-5 (112-00328), 5m
X66250-30 (112-00331), 30m
Ethernet cable (order
dependent)
Optical cables SR:
X6553-R6 (112-00188), 2m
X6554-R6 (112-00189), 15m
X6537-R6 (112-00091), 30m
LR:
X66250-3 (112-00342), 2m
X66260-5 (112-00344), 5m
X66260-30 (112-00354), 30m
FC configurations (order-
dependent)
RJ-45 (order
dependent)
X6585-R6 (112-00291), 3m
X6562-R6 (112-00196), 5m
Management network
Micro-USB
console cable
Not applicable Console connection used during
software setup if laptop or
console does not support
network discovery.
Power cables Not applicable Powering up the system
5. Download and complete the Cluster configuration worksheet.
