a. Insert your forefinger into the latching mechanism on either side of the controller module.
b. Press down on the orange tab on top of the latching mechanism until it clears the latching pin on the
chassis.
The latching mechanism hook should be nearly vertical and should be clear of the chassis pin.
a. Gently pull the controller module a few inches toward you so that you can grasp the controller module
sides.
b. Using both hands, gently pull the controller module out of the chassis and set it on a flat, stable
surface.
Step 3: Replace the NVDIMM
To replace the NVDIMM, you must locate it in the controller module using the NVDIMM
map label on top of the air duct or locating it using the LED next to the NVDIMM, and then
replace it following the specific sequence of steps.
The NVDIMM LED blinks while destaging contents when you halt the system. After the destage
is complete, the LED turns off.

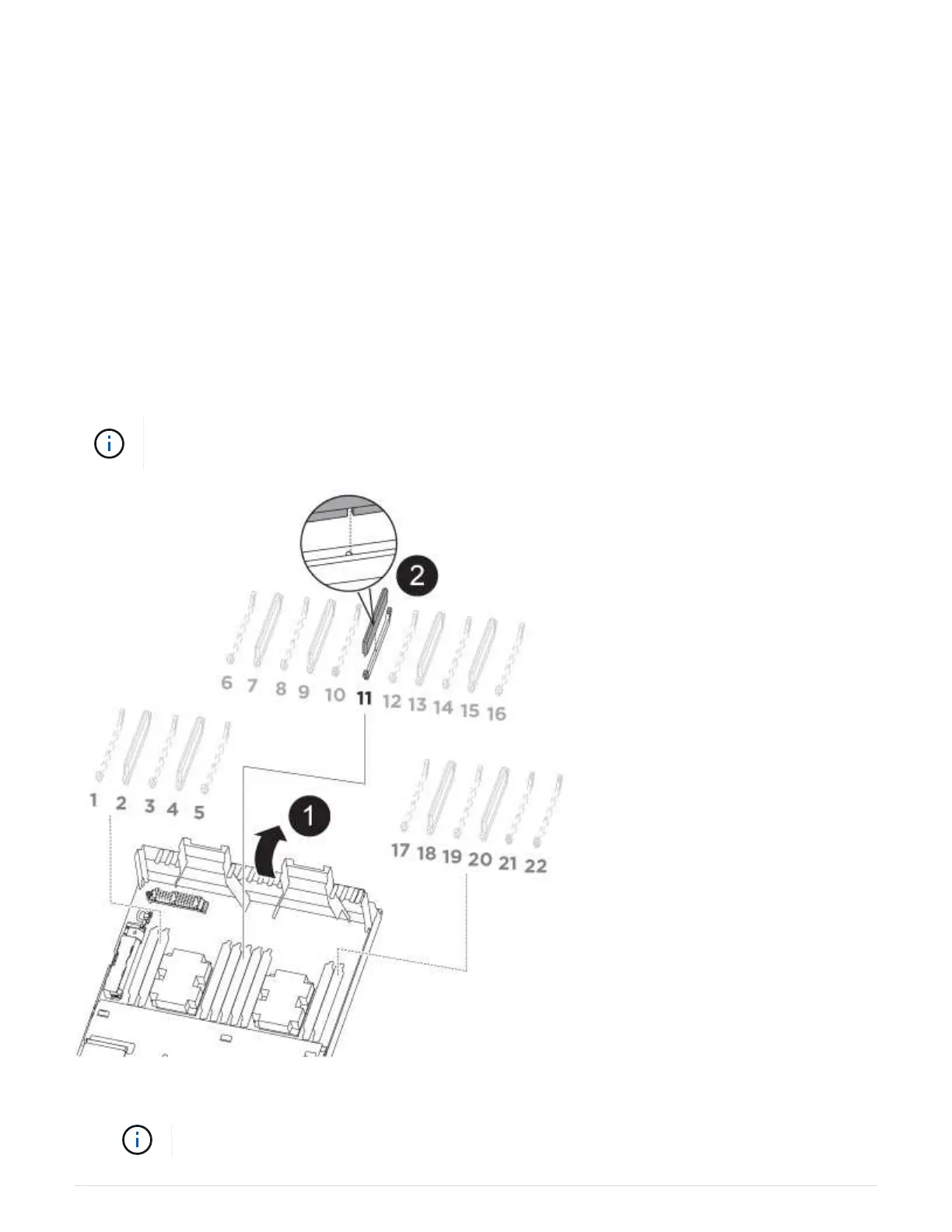

1. Open the air duct and then locate the NVDIMM in slot 11 on your controller module.
The NVDIMM looks significantly different than system DIMMs.
