As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. Use the following animation or illustration to cable your controllers to a single drive shelf.

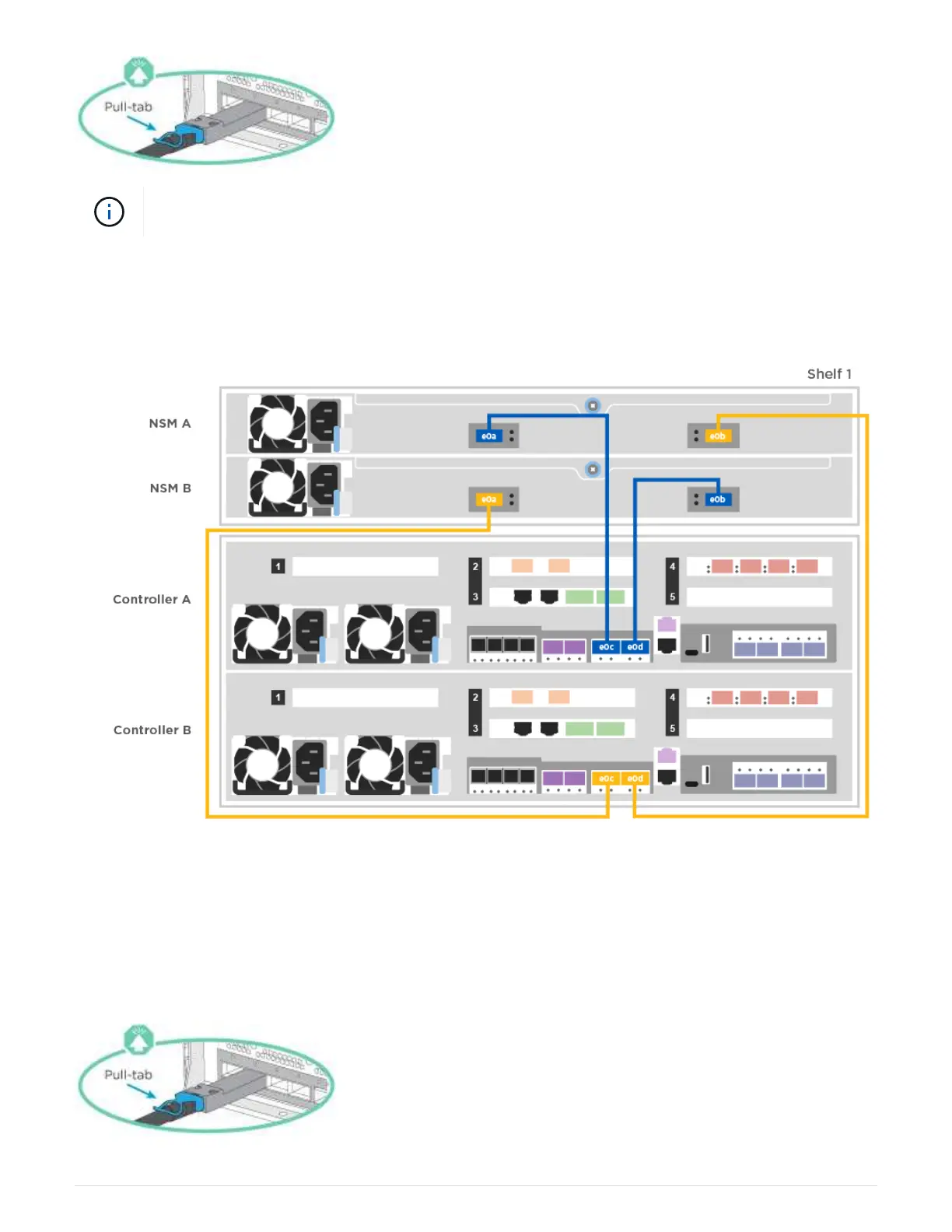

Cabling the controllers to one NS224 drive shelf
2. Go to Step 5: Complete system setup and configuration to complete system setup and configuration.
Option 2: Cable the controllers to two drive shelves
You must cable each controller to the NSM modules on both NS224 drive shelves.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab for
the NS224 are up.
479
