• The systems must have at least one X91148A module installed in slots 3 and/or 7 for each controller. The
animation or illustrations show this module installed in both slots 3 and 7.

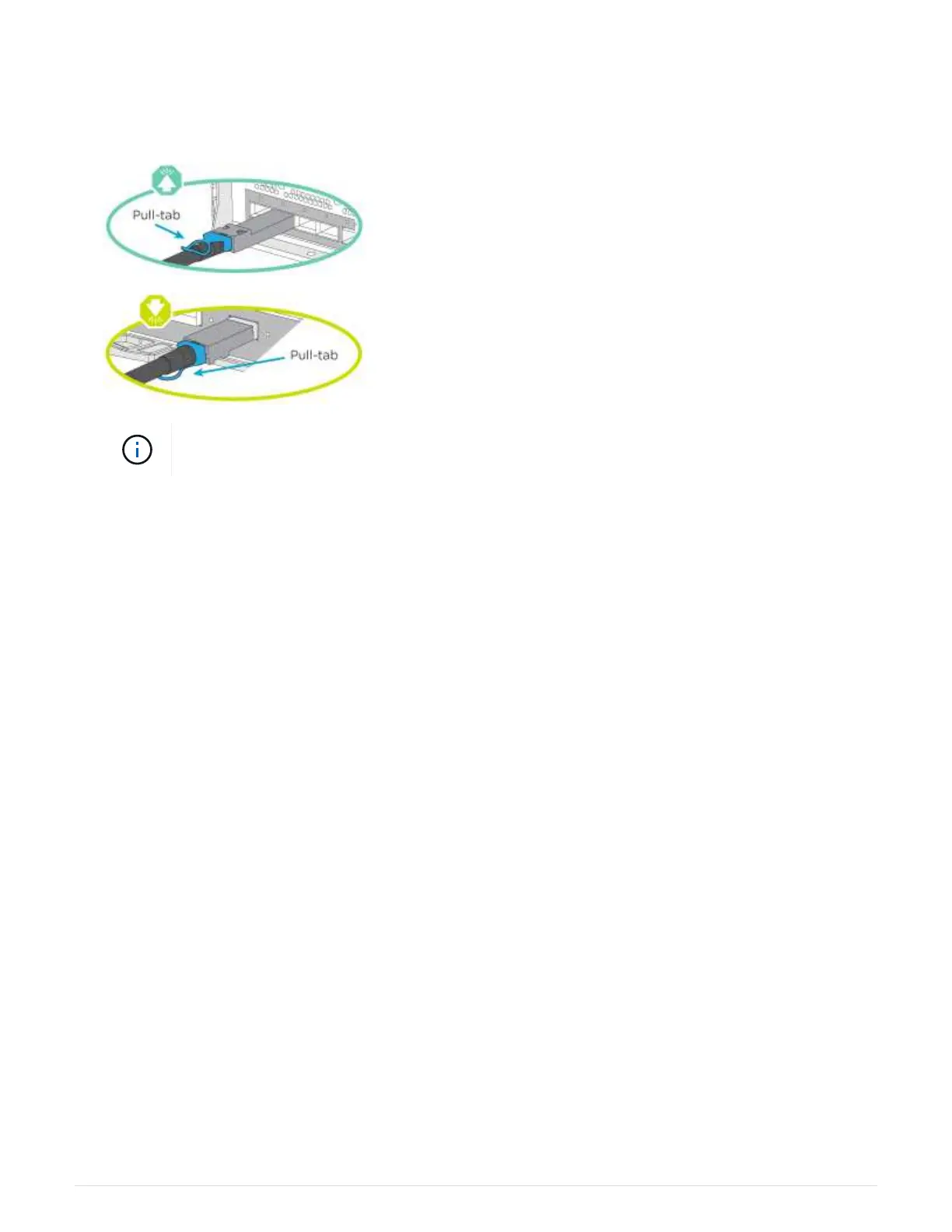

• Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab
for the storage modules are up, while the pull tabs on the shelves are down.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
Steps
1. Use the following animation or illustrations to cable your controllers with two X91148A storage modules to a
single NS224 drive shelf, or use the diagram to cable your controllers with one X91148A storage module to
a single NS224 drive shelf.
Cabling a single NS224 shelf - ONTAP 9.8 and later
