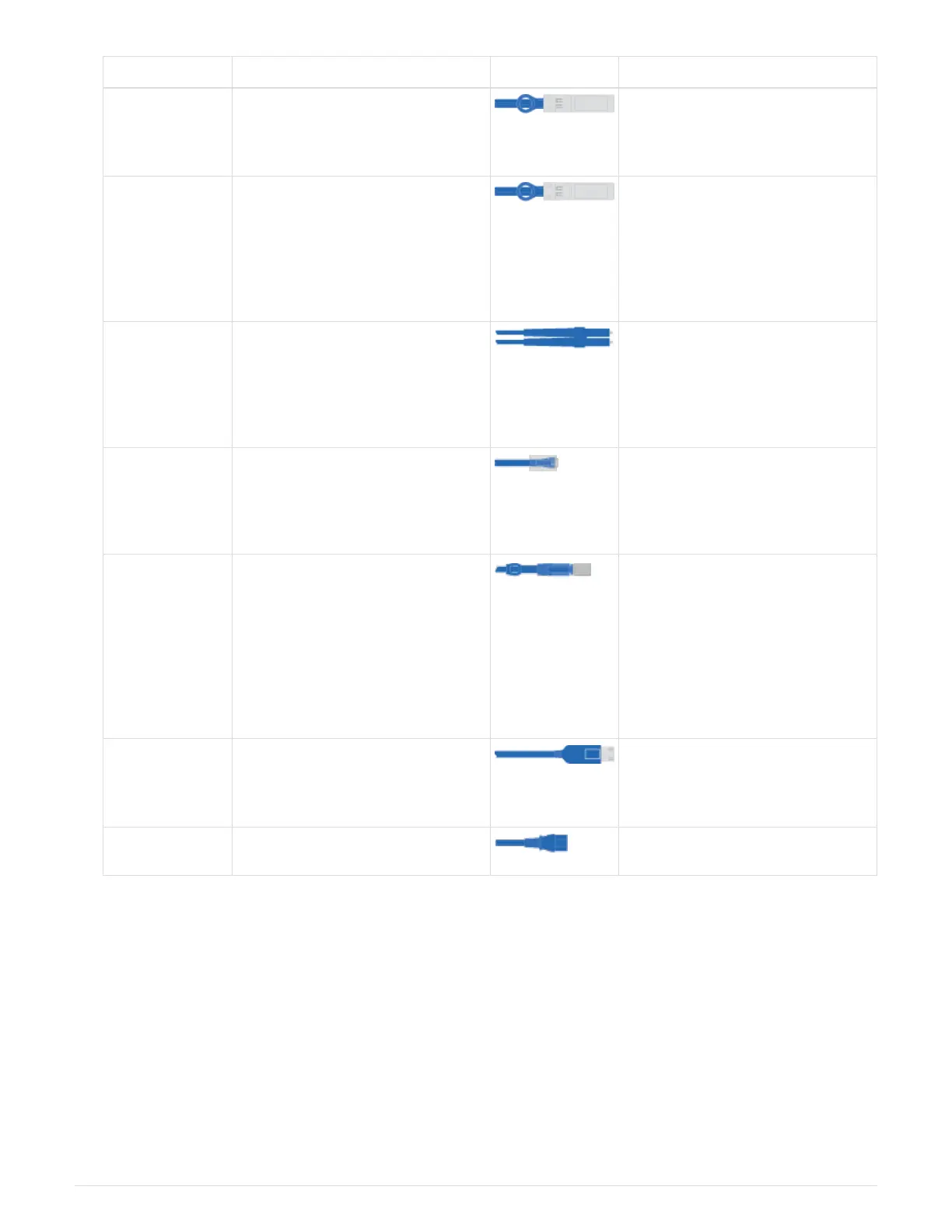

Type of cable… Part number and length Connector type For…
10 GbE cable
(order
dependent)
X6566B-05-R6 (112-00297), 0.5m
X6566B-2-R6 (112-00299), 2m
Cluster interconnect network
10 GbE cable
(order
dependent)
Part number X6566B-2-R6 (112-
00299), 2m
or X6566B-3-R6 (112-00300), 3m
X6566B-5-R6 (112-00301), 5m
Data
Optical network
cables (order
dependent)
X6553-R6 (112-00188), 2m
X6536-R6 (112-00090), 5m
X6554-R6(112-00189), 15m
FC host network
Cat 6, RJ-45
(order
dependent)
Part numbers X6585-R6 (112-
00291), 3m
X6562-R6 (112-00196), 5m
Management network and
Ethernet data
Storage (order
dependent)
Part number X66030A (112-
00435), 0.5m
X66031A (112-00436), 1m
X66032A (112-00437), 2m
X66033A (112-00438), 3m
Storage
Micro-USB
console cable
Not applicable Console connection during
software setup on non-Windows
or Mac laptop/console
Power cables Not applicable Powering up the system
6. Download and complete the Cluster configuration worksheet.
Cluster Configuration Worksheet
Step 2: Install the hardware
You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.
Steps
1. Install the rail kits, as needed.
2. Install and secure your system using the instructions included with the rail kit.
