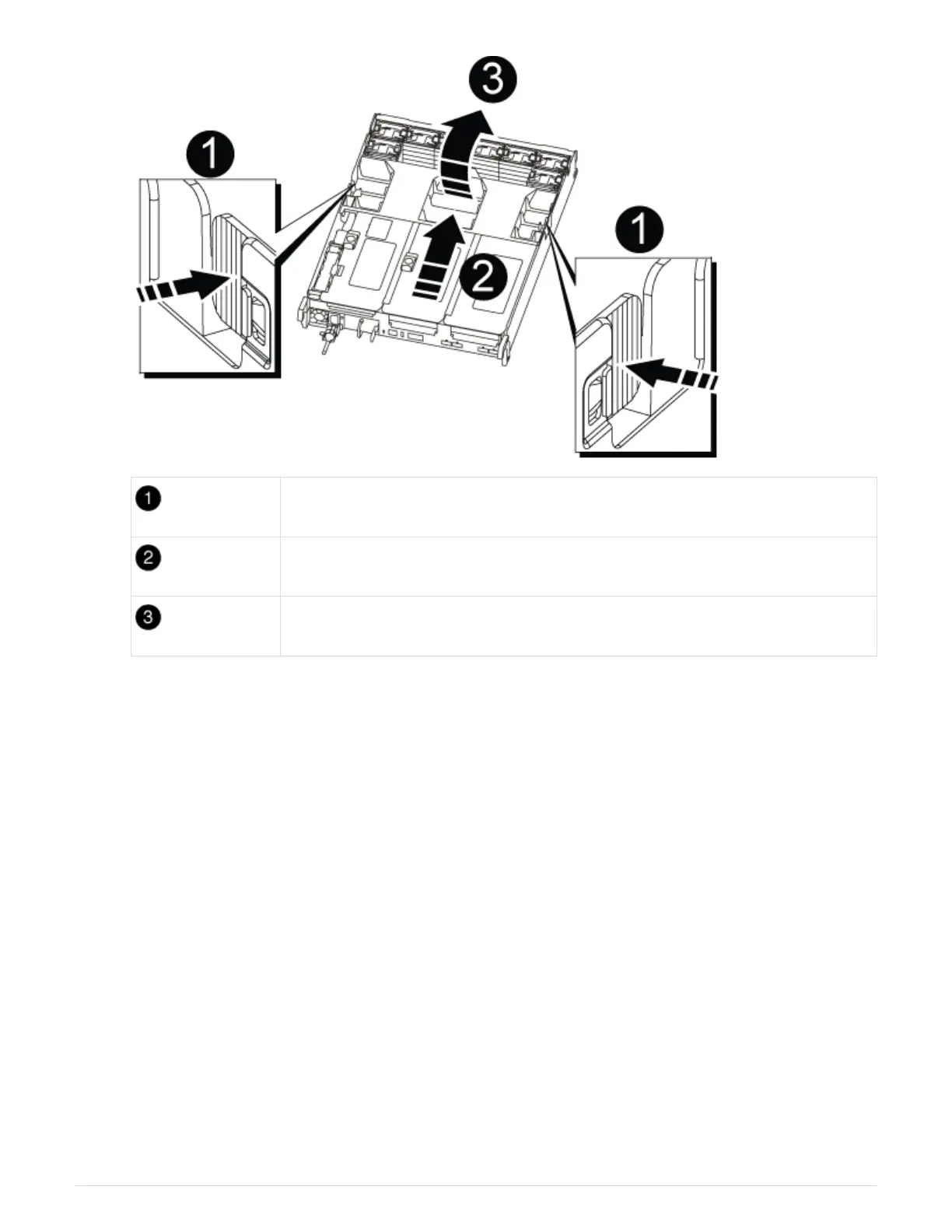

Air duct locking tabs
Risers
Air duct
Replacing a fan - AFF A700s
To replace a fan, remove the failed fan module and replace it with a new fan module.
1. If you are not already grounded, properly ground yourself.
2. Identify the fan module that you must replace by checking the console error messages or by locating the lit
LED for the fan module on the motherboard.
3. Remove the fan module by pinching the locking tabs on the side of the fan module, and then lifting the fan
module straight out of the controller module.
