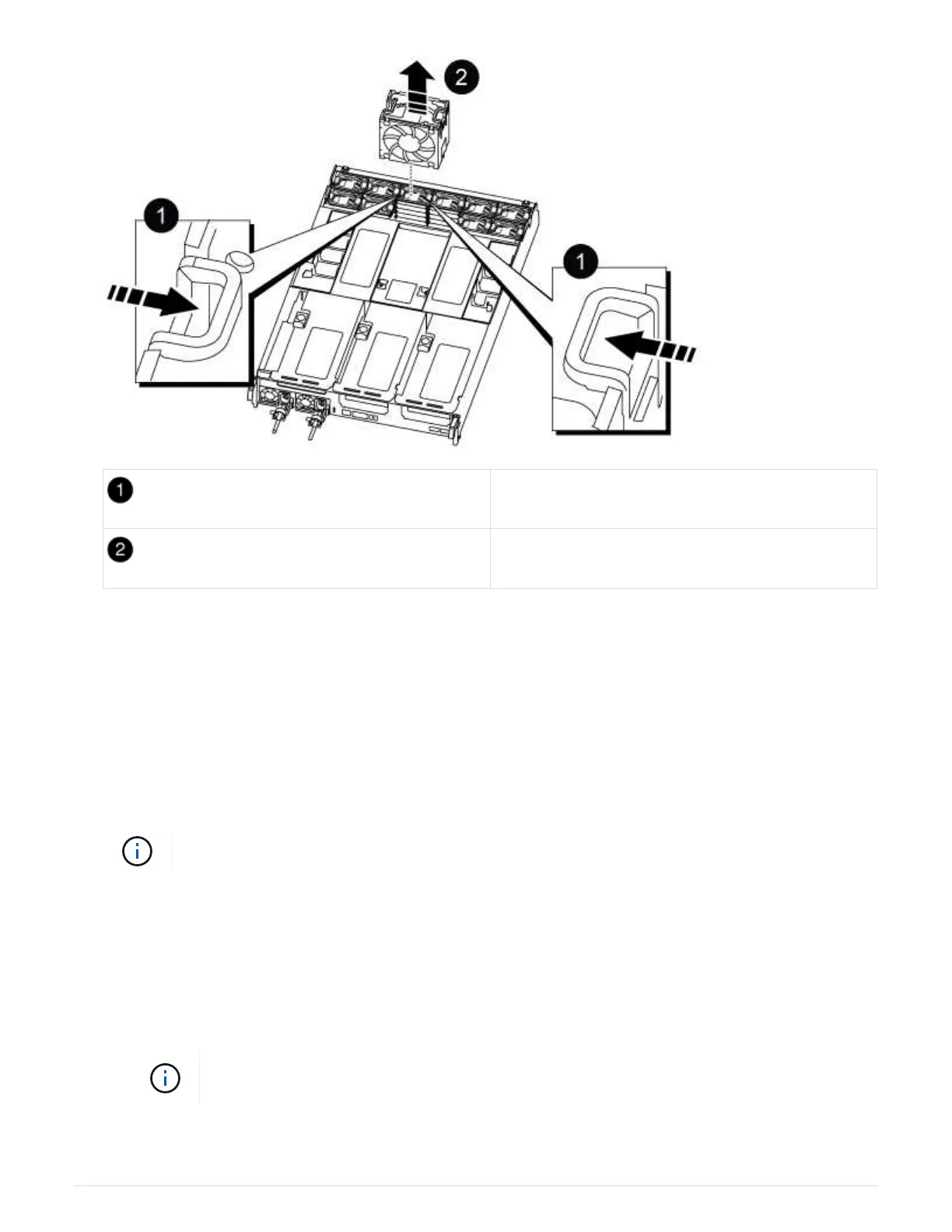

Fan locking tabs
Fan module
3. Align the edges of the replacement fan module with the opening in the controller module, and then slide the
replacement fan module into the controller module until the locking latches click into place.
Step 4: Reinstall the controller module
After you replace a component within the controller module, you must reinstall the
controller module in the system chassis and boot it.
1. Align the end of the controller module with the opening in the chassis, and then gently push the controller
module halfway into the system.
Do not completely insert the controller module in the chassis until instructed to do so.
2. Recable the system, as needed.
3. Plug the power cables into the power supplies and reinstall the power cable retainers.
4. Complete the reinstallation of the controller module:
a. Firmly push the controller module into the chassis until it meets the midplane and is fully seated.
The locking latches rise when the controller module is fully seated.
Do not use excessive force when sliding the controller module into the chassis to avoid
damaging the connectors.
The controller module begins to boot as soon as it is fully seated in the chassis.
