This command may not work if the boot device is corrupted or non-functional.
Remove the controller module, replace the boot media and transfer the boot image to the boot media -
AFF C190
To replace the boot media, you must remove the impaired controller module, install the replacement boot
media, and transfer the boot image to a USB flash drive.
Step 1: Remove the controller
To access components inside the controller module, you must first remove the controller
module from the system, and then remove the cover on the controller module.
Steps
1. If you are not already grounded, properly ground yourself.

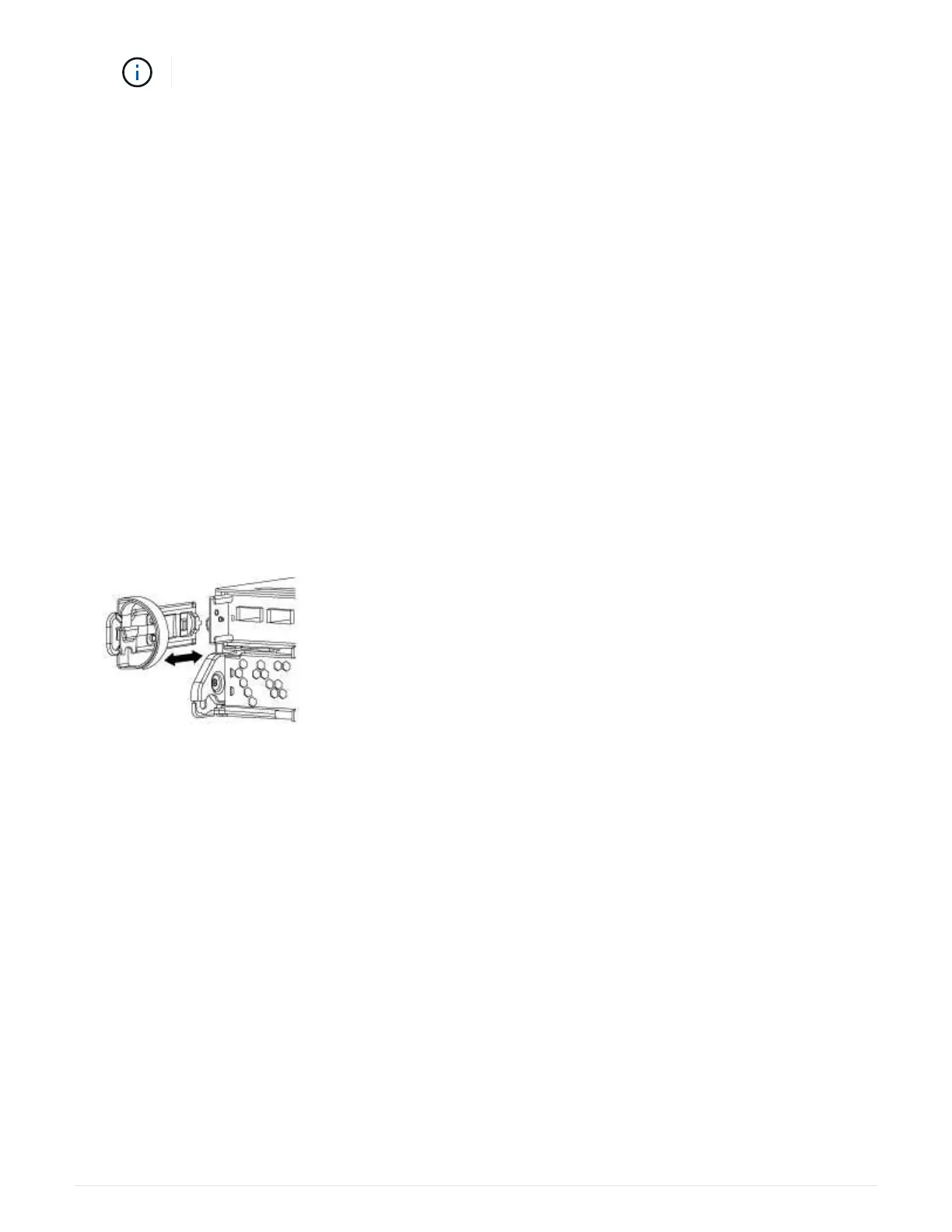

2. Loosen the hook and loop strap binding the cables to the cable management device, and then unplug the
system cables and SFPs (if needed) from the controller module, keeping track of where the cables were
connected.
Leave the cables in the cable management device so that when you reinstall the cable management
device, the cables are organized.
3. Remove and set aside the cable management devices from the left and right sides of the controller module.
4. Squeeze the latch on the cam handle until it releases, open the cam handle fully to release the controller
module from the midplane, and then, using two hands, pull the controller module out of the chassis.
958
