NetApp DS224C User Manual

Callout LED name State Description
Attention Solid amber An error occurred with the
function of the disk drive.
Check event messages to
determine corrective
action to take.
Depending on your disk shelf model, disk drives are arranged vertically or horizontally in the disk shelf,
dictating the location of the two LEDs.

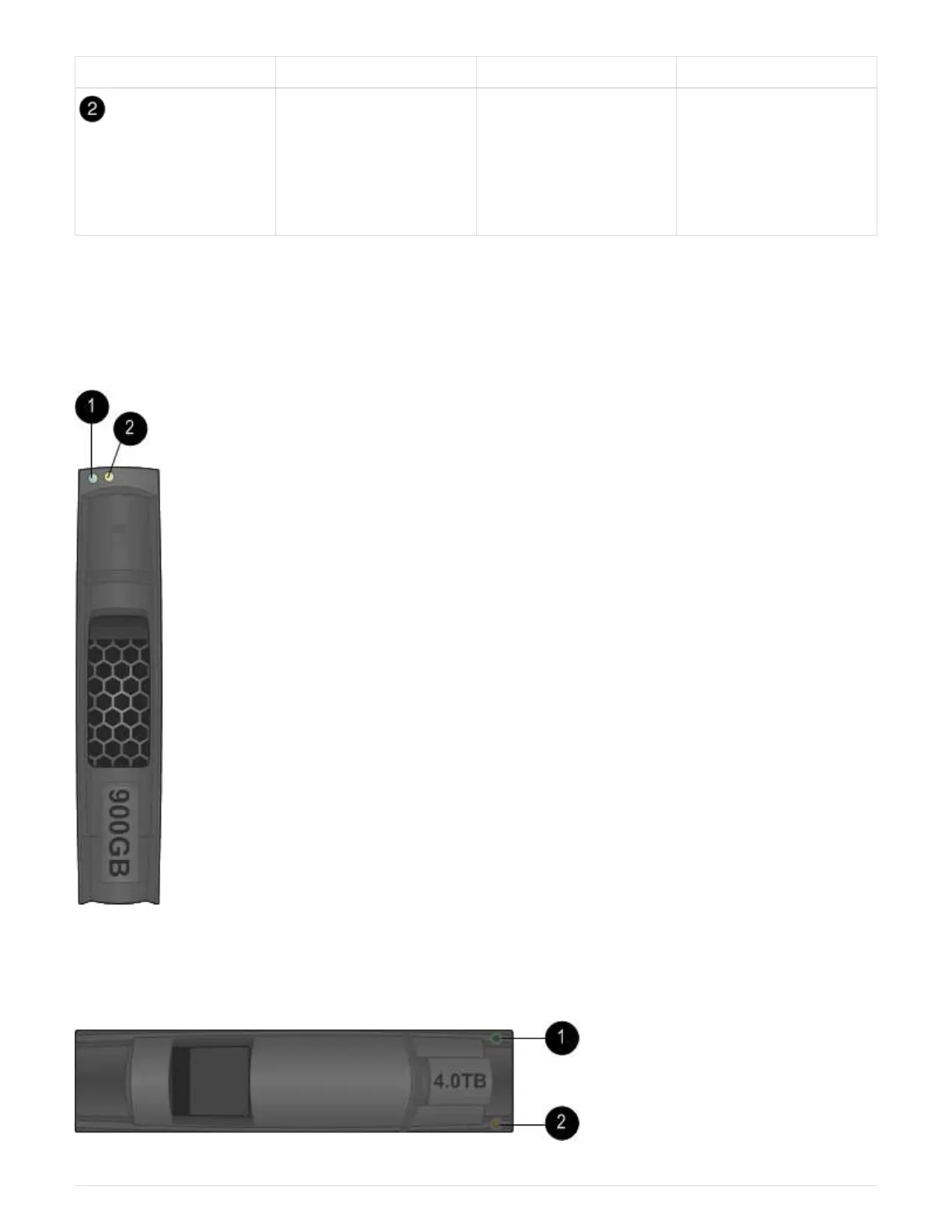

The following illustration is for a disk drive used in a DS224C disk shelf.
DS224C disk shelves use 2.5-inch disk drives arranged vertically in the disk shelf.
The following illustration is for a disk drive used in a DS212C disk shelf.
DS212C disk shelves use 3.5-inch disk drives or 2.5-inch disk drives in carriers arranged horizontally in the
disk shelf.
53

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
