Disk drive LEDs for DS460C disk shelves

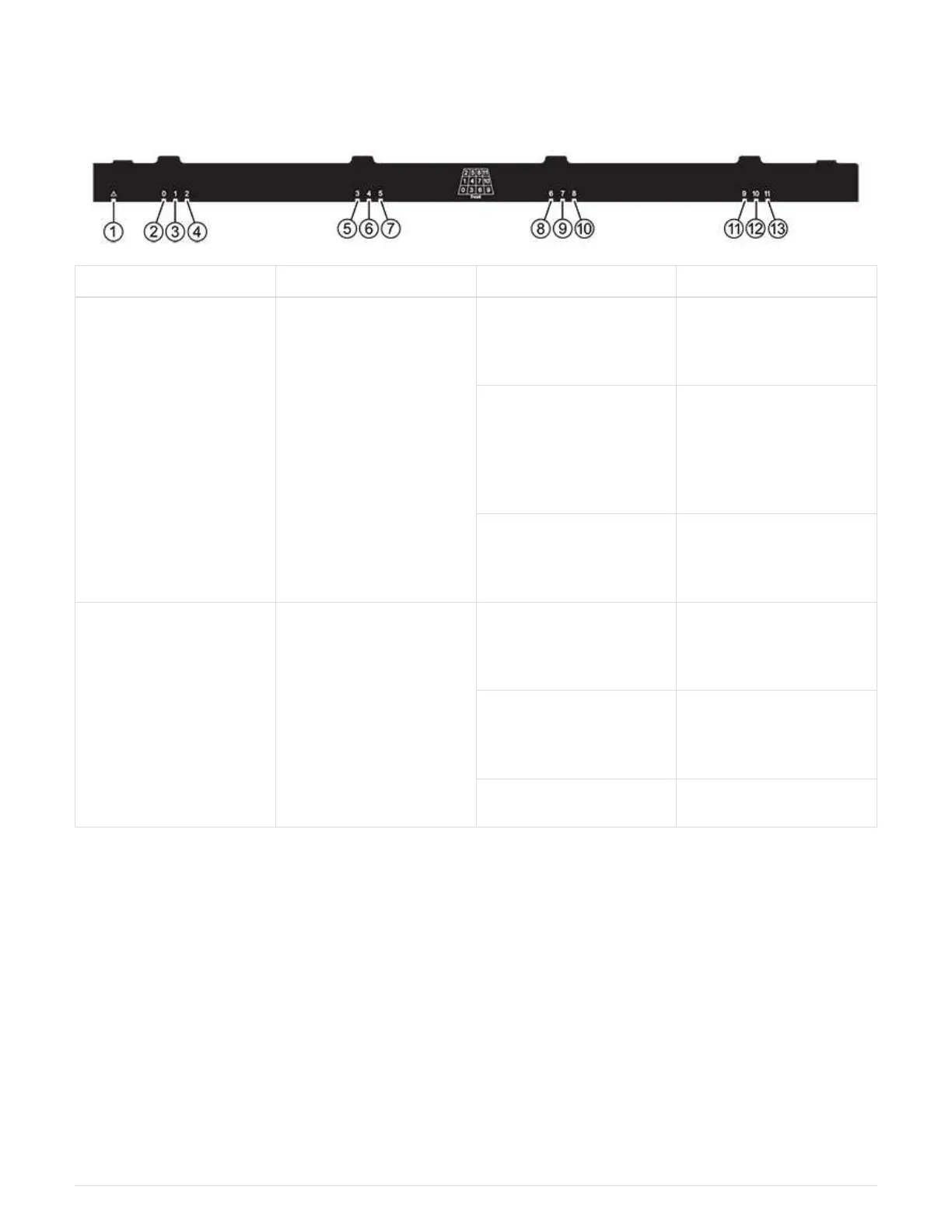

The following illustration and table describes the drive activity LEDs on the drive drawer and their operational
states:
Location LED Status indicator Description
1 Attention: Drawer
attention for each drawer
Solid amber A component within the
drive drawer requires
operator attention.
Off No drive or other
component in the drawer
requires attention and no
drive in the drawer has an
active locate operation.
Blinking amber A locate drive operation is
active for any drive within
the drawer.
2-13 Activity: Drive activity for
drives 0 through 11 in the
drive drawer
Green The power is turned on
and the drive is operating
normally.
Blinking green The drive has power, and
I/O operations are in
progress.
Off The power is turned off.
When the drive drawer is open, an attention LED can be seen in front of each drive.
54
