NetApp E Series Install And Setup

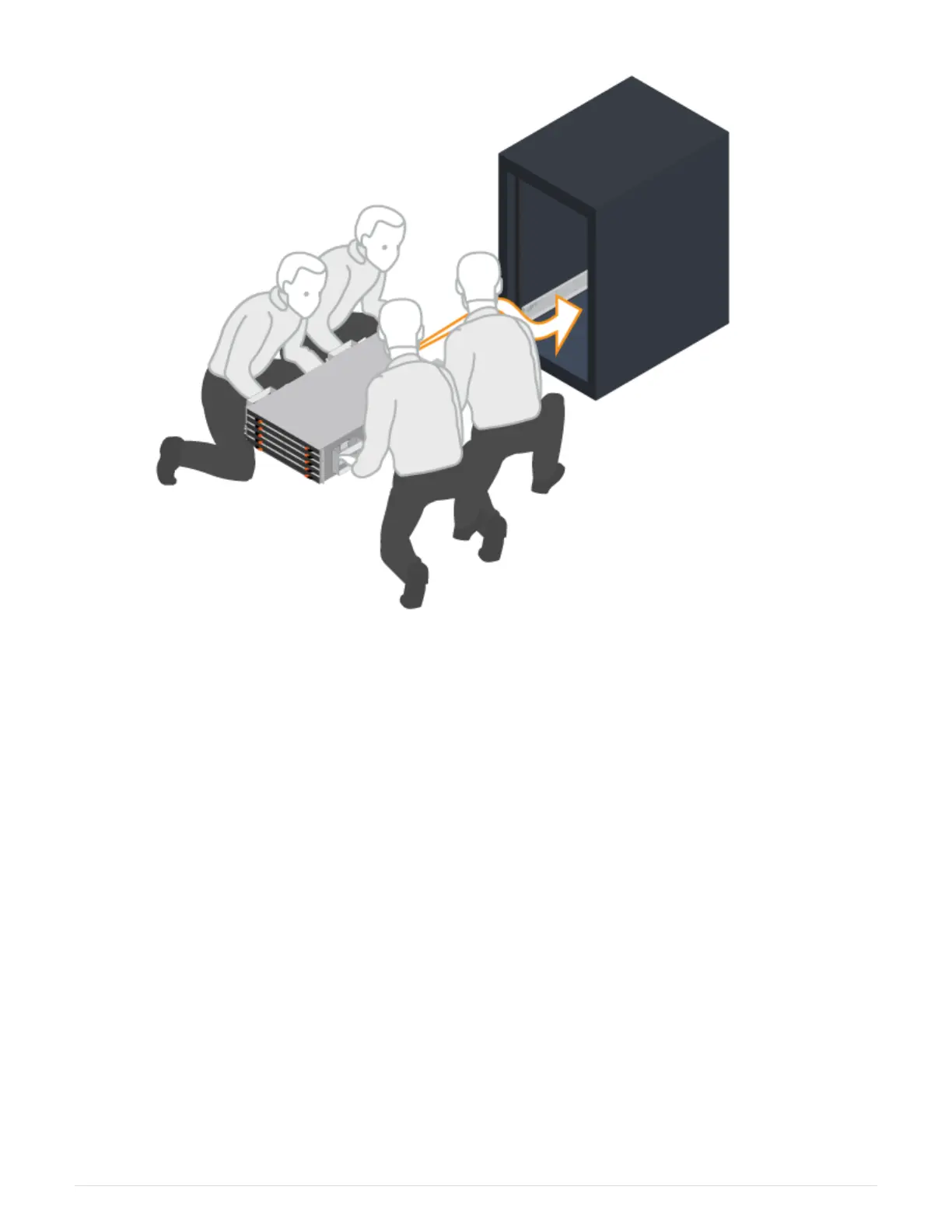

4. Secure the shelf.
Secure the shelf to the rack as directed in
Rack-mount hardware.
a. Insert screws into the first and third holes from the top of the shelf on both sides to secure it to the front
of the cabinet.
b. Place two back brackets on each side of the upper rear section of the shelf. Insert screws into the first
and third holes of each bracket to secure the back of the cabinet.
5

NetApp E Series Specifications

General

Form Factor	2U, 4U
Drive Types	SSD
Host Interface	SAS, iSCSI, FC, IB
RAID Levels	RAID 0, 1, 5, 6, 10
Operating System Compatibility	Windows, Linux, VMware
Management Software	SANtricity
