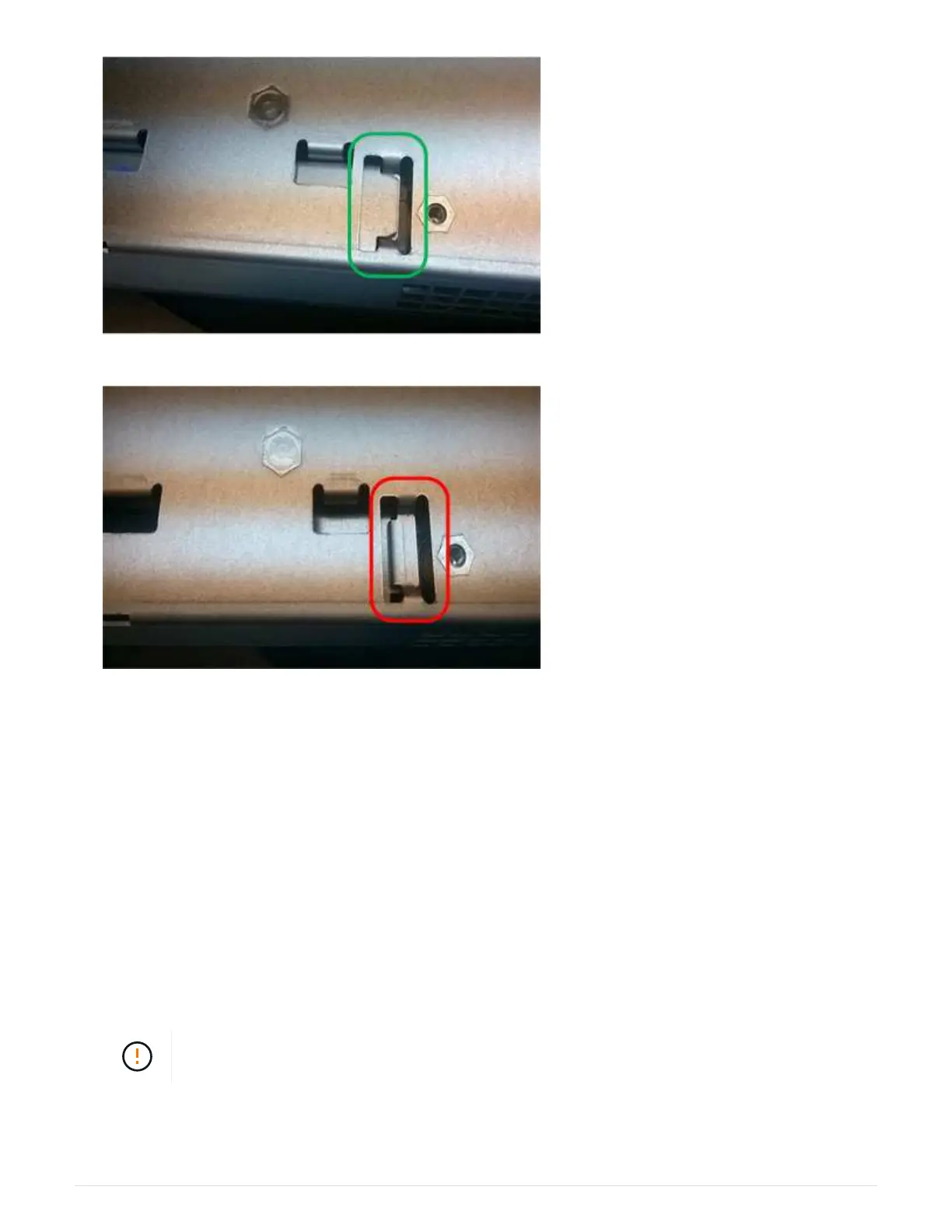

◦ Incorrect — The battery’s metal flange is not inserted into the slot on the controller:
Step 3b: Install host interface card (duplex)
If you removed a HIC from the original controller canister, you must install that HIC in the new controller
canister.
Steps
1. Using a #1 Phillips screwdriver, remove the four screws that attach the blank faceplate to the replacement
controller canister, and remove the faceplate.
2. Align the three thumbscrews on the HIC with the corresponding holes on the controller, and align the
connector on the bottom of the HIC with the HIC interface connector on the controller card.
Be careful not to scratch or bump the components on the bottom of the HIC or on the top of the controller
card.
3. Carefully lower the HIC into place, and seat the HIC connector by pressing gently on the HIC.
Possible equipment damage — Be very careful not to pinch the gold ribbon connector for
the controller LEDs between the HIC and the thumbscrews.
138
