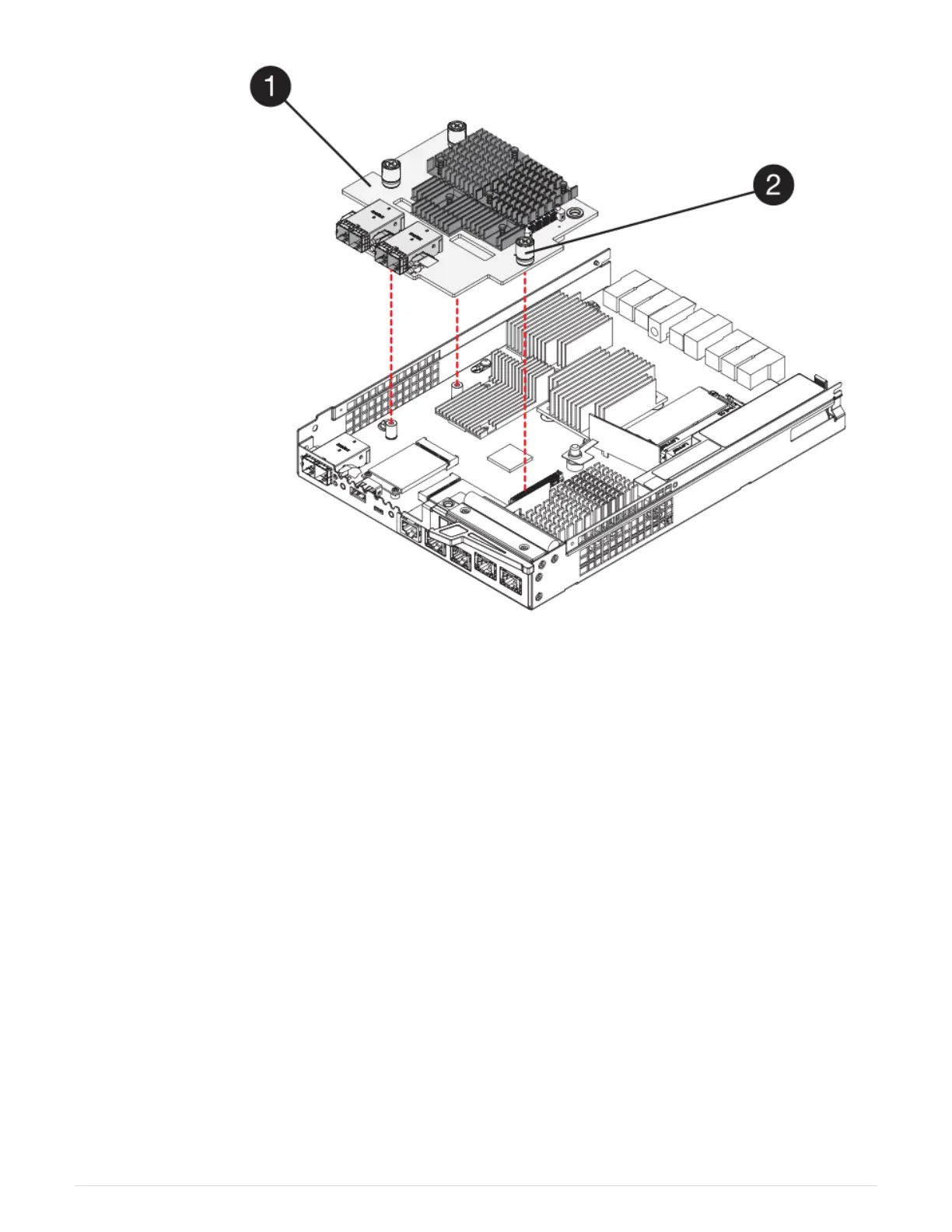

(1) Host interface card (HIC)
(2) Thumbscrews
4. Hand-tighten the HIC thumbscrews.
Do not use a screwdriver, or you might over tighten the screws.
5. Using a #1 Phillips screwdriver, attach the HIC faceplate you removed from the original controller canister
to the new controller canister with four screws.
139
