NetApp E Series Hardware Maintainence Manual

Step 3c: Install new controller canister (duplex)

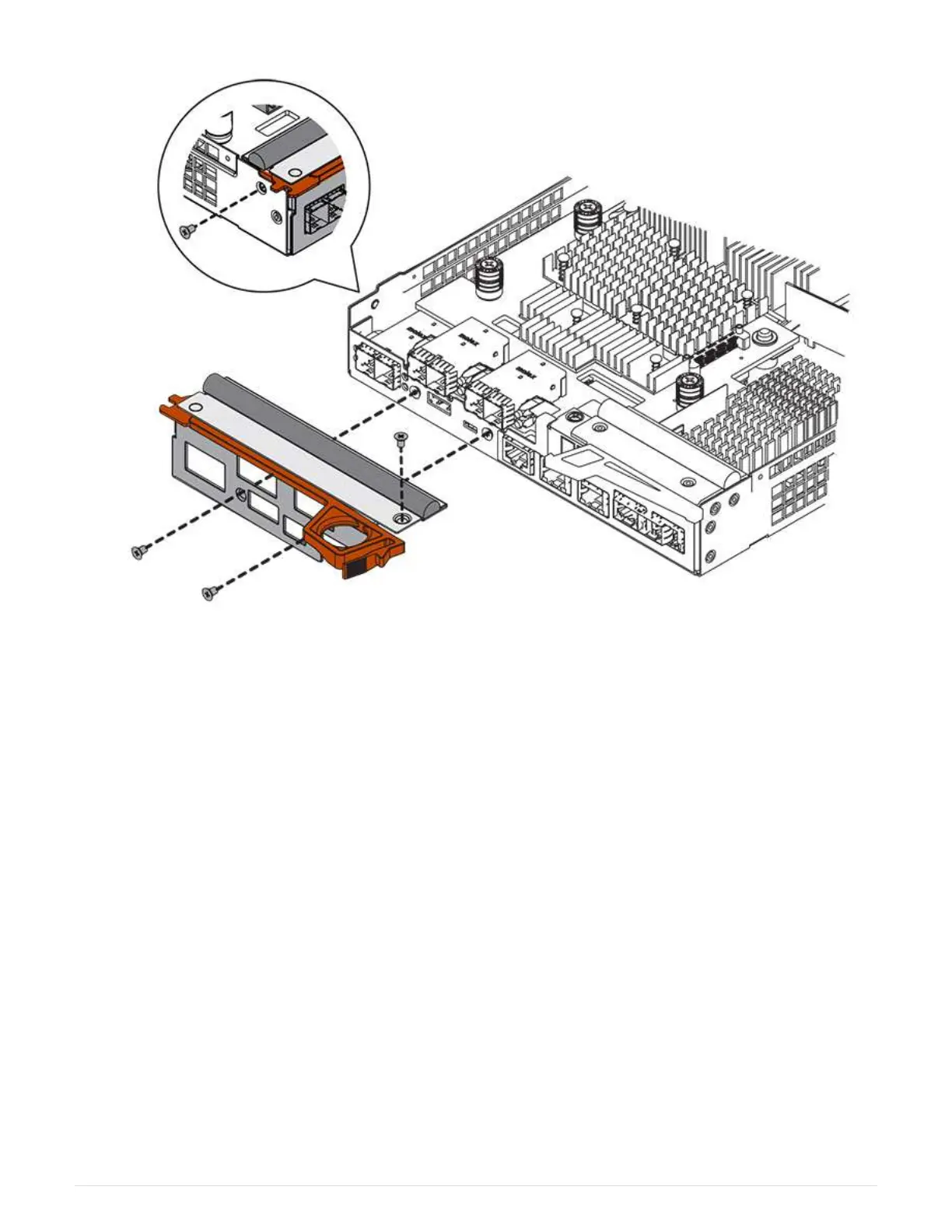

After installing the battery and the host interface card (HIC), if one was initially installed, you can install the new
controller canister into the controller shelf.
Steps
1. Reinstall the cover on the controller canister by sliding the cover from back to front until the button clicks.
2. Turn the controller canister over, so that the removable cover faces down.
3. With the cam handle in the open position, slide the controller canister all the way into the controller shelf.
140

NetApp E Series Specifications

General

Form Factor	2U, 4U
Drive Types	SSD
Host Interface	SAS, iSCSI, FC, IB
RAID Levels	RAID 0, 1, 5, 6, 10
Operating System Compatibility	Windows, Linux, VMware
Management Software	SANtricity
