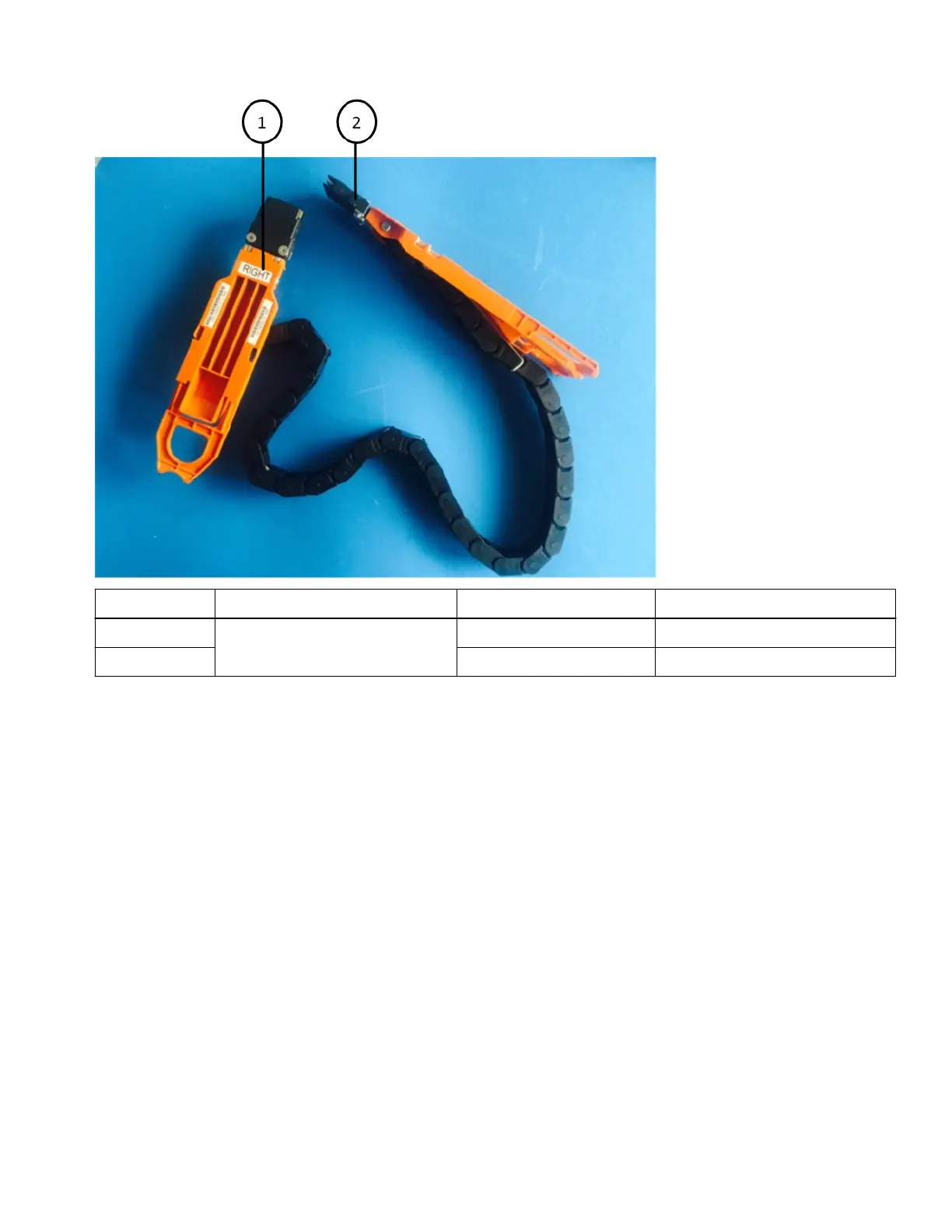

Callout Cable chain Connector Connects to
1 Right Horizontal Drive drawer
2 Vertical Midplane
Steps
1. From the back of the drive shelf, remove the fan canister on the right side, and set it aside.
2. If the shelf is powered on, ensure that the left fan goes to its maximum speed.
Attention: Possible equipment damage due to overheating – If the shelf is powered on, do not remove both fans at the
same time. Otherwise, the equipment might overheat.
3. Attach the right cable chain:
a. Locate the horizontal and vertical connectors on the right cable chain and the corresponding horizontal guide rail and
vertical guide rail inside the enclosure.
b. Align both cable chain connectors with their corresponding guide rails.
c. Slide the cable chain's horizontal connector onto the horizontal guide rail, and push it in as far as it can go.
The figure shows the horizontal and vertical guide rails for the second drive drawer in the enclosure.
