d. Raise the handle on the drive to vertical.
e. Align the two raised buttons on each side of the drive with the notches on the drawer.

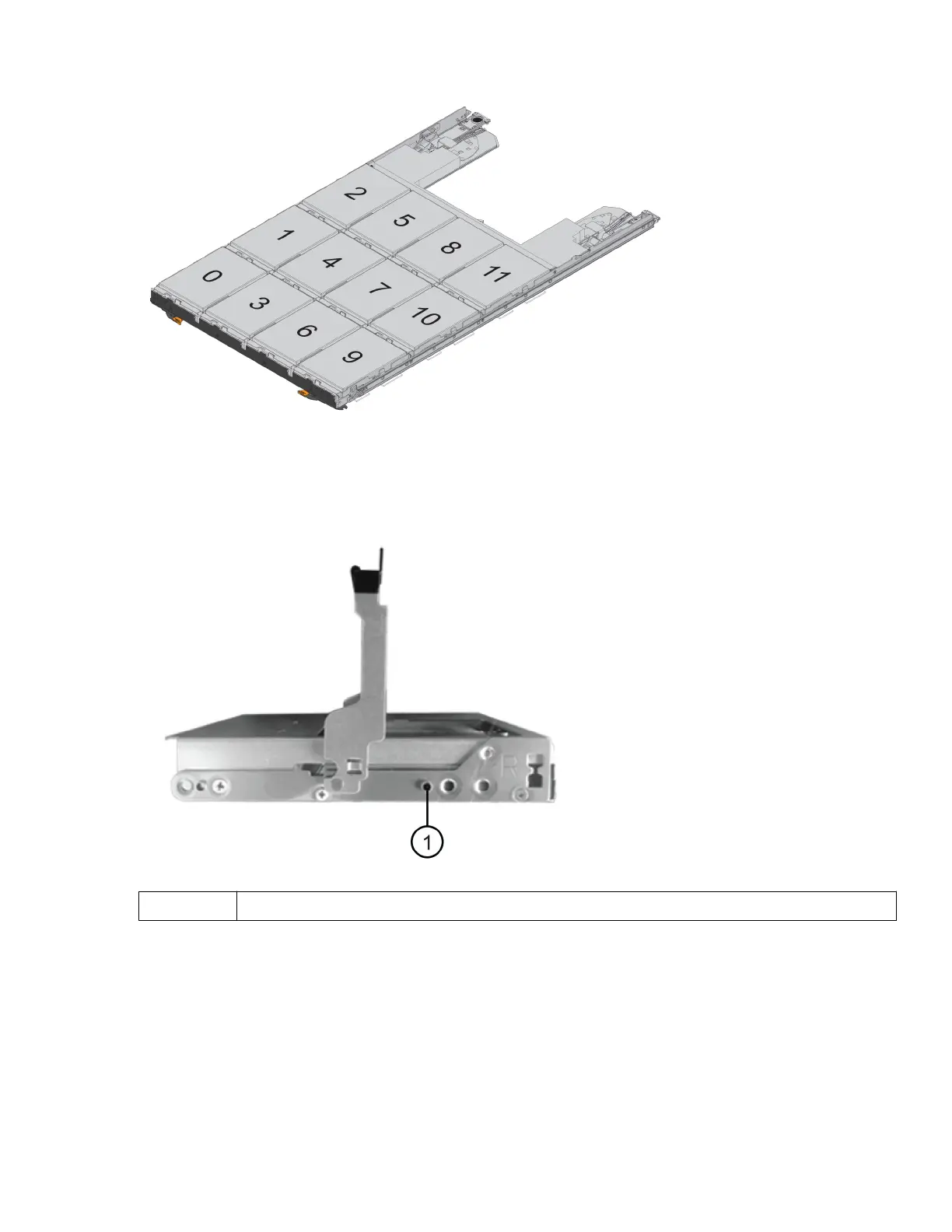

The figure shows the right side view of a drive, showing the location of the raised buttons.
1
Raised button on the right side of the drive.
f. Lower the drive straight down, making sure the drive is pressed all the way down into the bay, and then rotate the drive
handle down until the drive snaps into place.
