4 Replacing a Drive Drawer in a 60-Drive Tray
3 Use the fan canister handle to pull the right fan canister out of the drive tray. Figure 3 shows the area
with the fan canister removed.

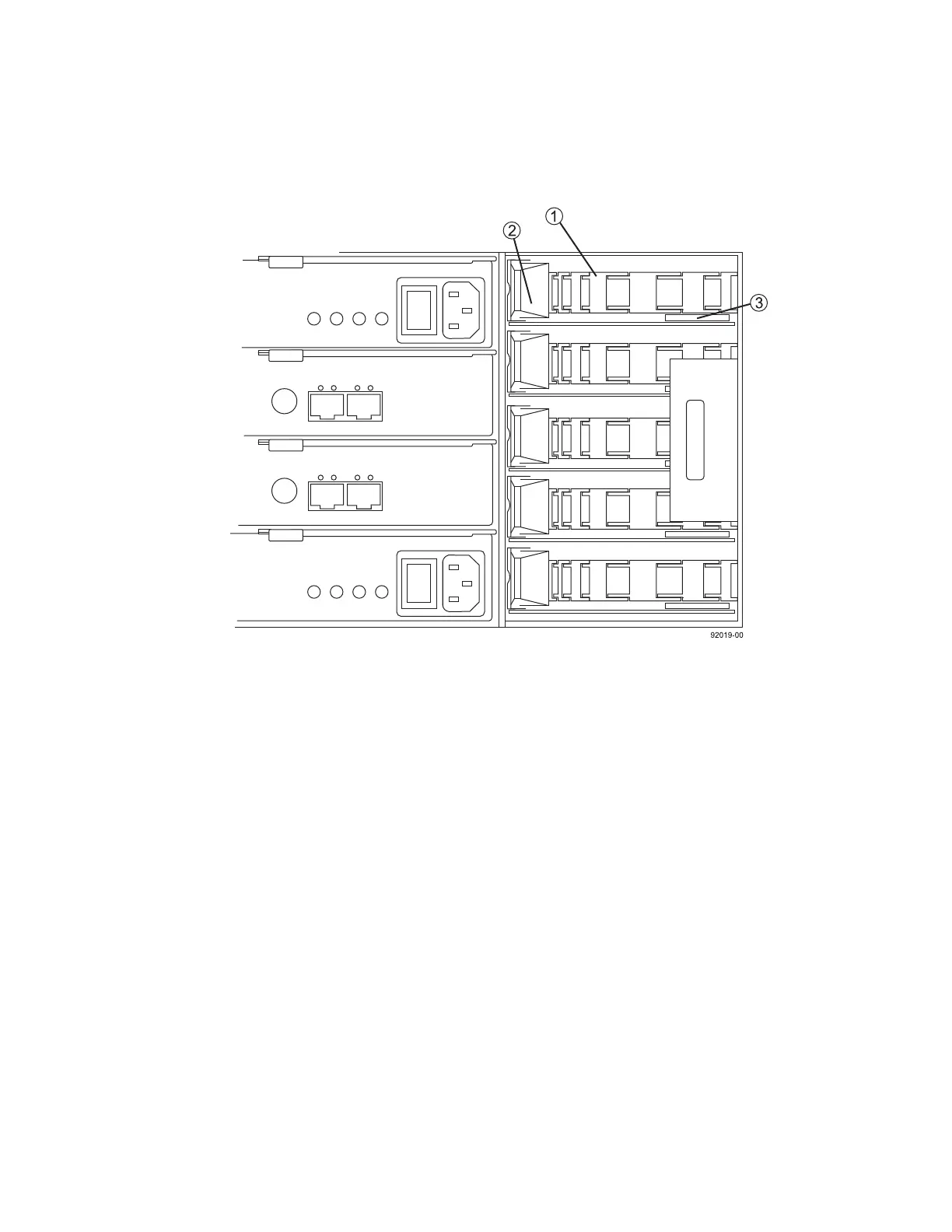

Figure 3 Rear View of the Drive Tray Shown with the Right Fan Canister Removed
1. Cable Chain
2. Mounting Bracket Connected to the Midplane
3. Mounting Bracket Connected to the Drive Drawer
NOTE If power is applied, a blue LED highlights the cable chain that you need to disconnect. If
power is not applied, you must manually determine which cable chain of the five cable
chains you must disconnect.
The top cable chain is attached to the drive drawer 1. The bottom cable chain is attached to the drive
drawer 5.
