NetGain Motors HyPer 9 IS User Manual

HyPer 9 IS User Manual Revision 06 NetGain Motors, Inc. Page 10 of 27

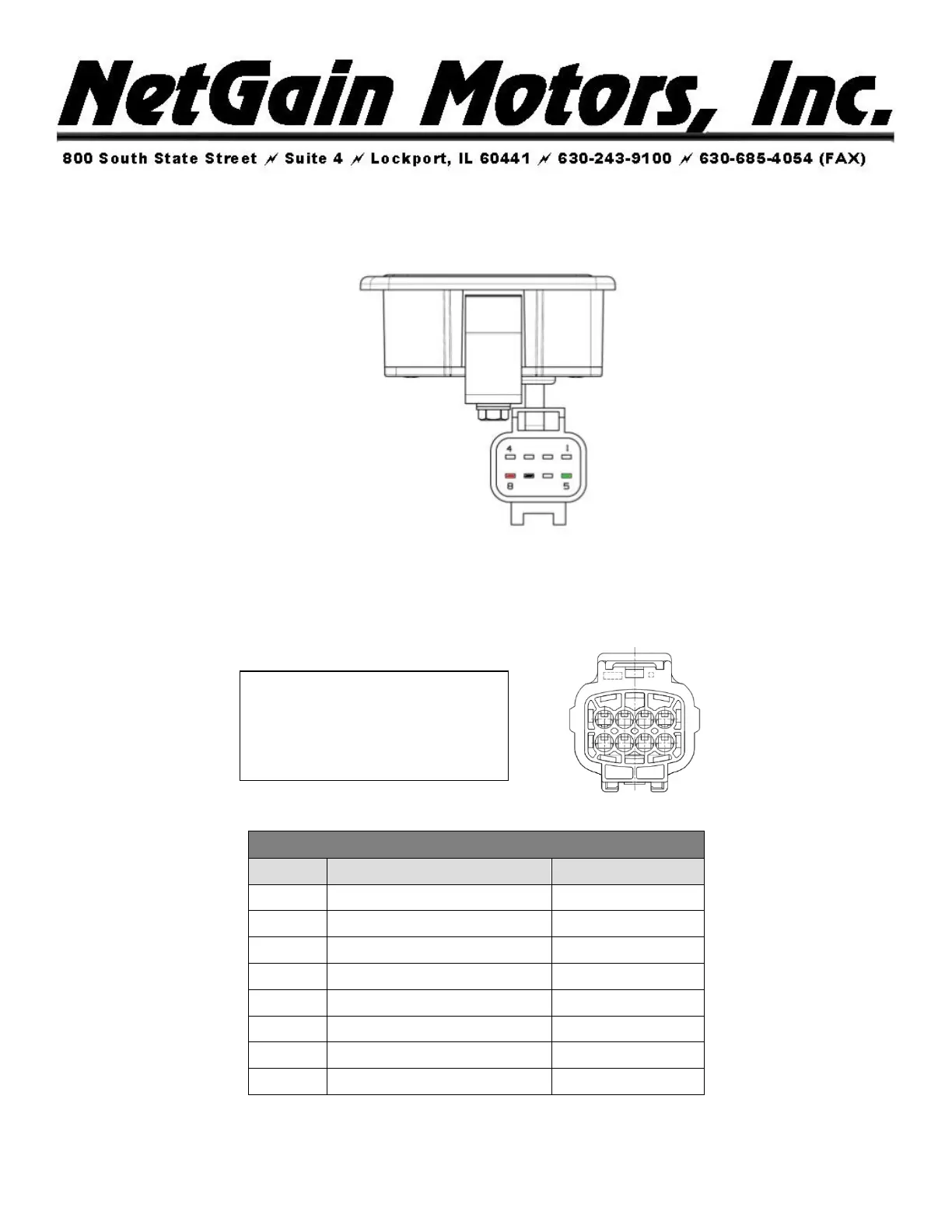

Compact Display Pinout
Compact Display Mating Female Plug
Compact Display - 8 Position Connector
Pin
Name
Position
8
+12V Out
K1-10
7
I/O Ground
K1-12
6
Not Connected
N/A
5
LIN-BUS
K1-15
4
Digital Input 1
TBD
3
Digital Input 2
TBD
2
Digital Input 3
TBD
1
Digital Input 4
TBD
Figure 3 Compact Display Male Connector
Add-On for HyPer 9 IS:
Econoseal .070 MK-II 8 POS
Plug Part# 2822393-1 or 174982-2
Pin Part# 171662-1 or 171630-1
Locking Plate Part Part# 174983
4 1
8 5
