HyPer 9 IS User Manual Revision 06
NetGain Motors, Inc.
Page 9 of 27

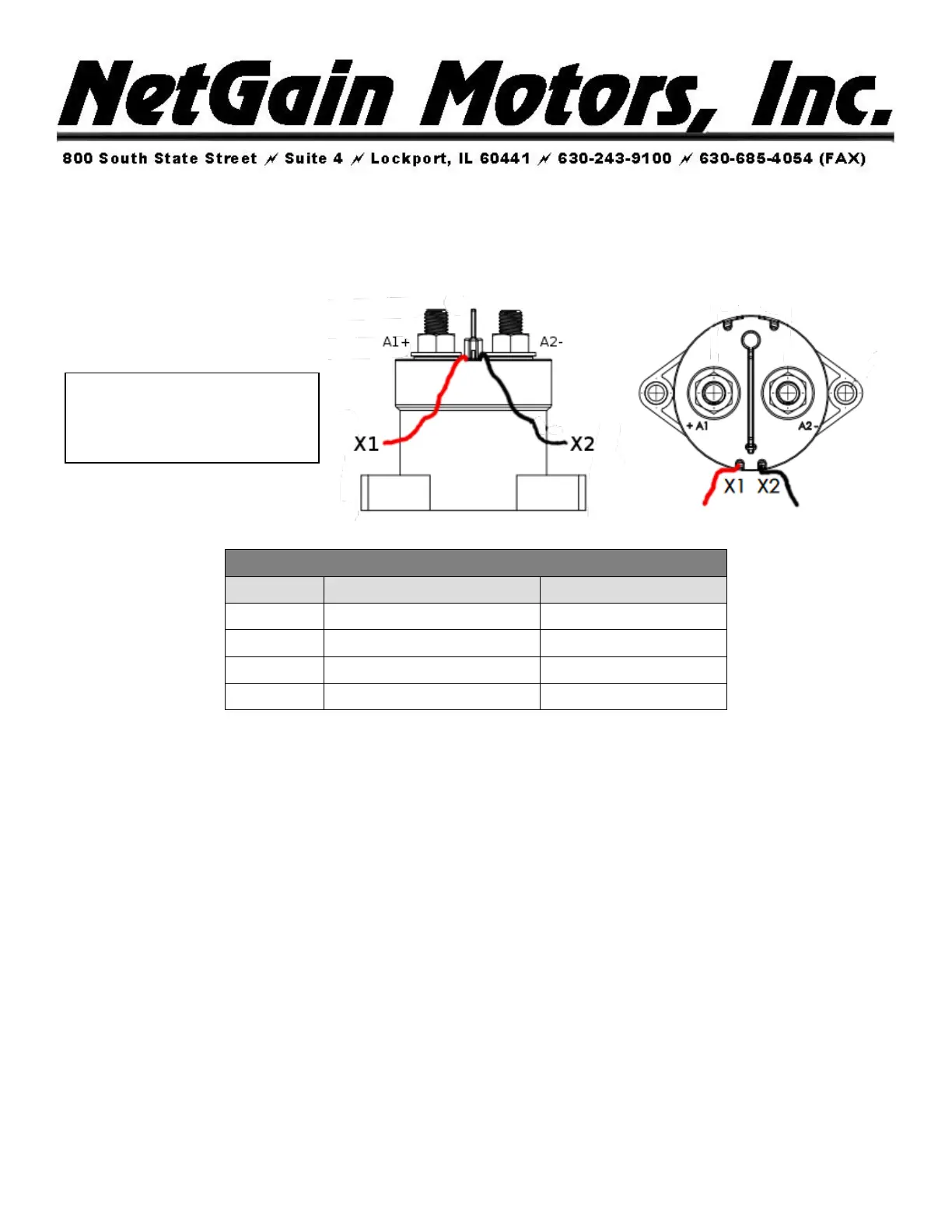

X1 Main Contactor Wiring
24/48V Coil Driver, High Voltage Contacts, and Key Switch In
X1 Main Contactor External PWM
Terminal
Name
X1 Position
X2
Driver Output 1
K1-26
X1
Coil Return
K1-25
A2-
Controller HV+
B+ Terminal*
A1+
100V B+ Precharge
K1-24**
* This HV circuit should include proper fuses and disconnect switches.
** Full battery pack voltage (100V nominal) is supplied to K1-24 (Key Switch In) when the Ignition Key is
switched on. This is the only wire on connector K1 that will see high voltage. Only applies to X1 controller K1-
24. Please see HyPer 9HV User Manual for X144 controller wiring instructions.
Included in HyPer 9 IS:
Gigavac 500+ Amp, 12-800Vdc
- 24/48V External PWM Coil
Part# GV200QA-1
