Chapter 1: Connecting to the Internet | 7
Mobile Broadband 11n Wireless Router MBR1000 User Manual
Router Front Panel

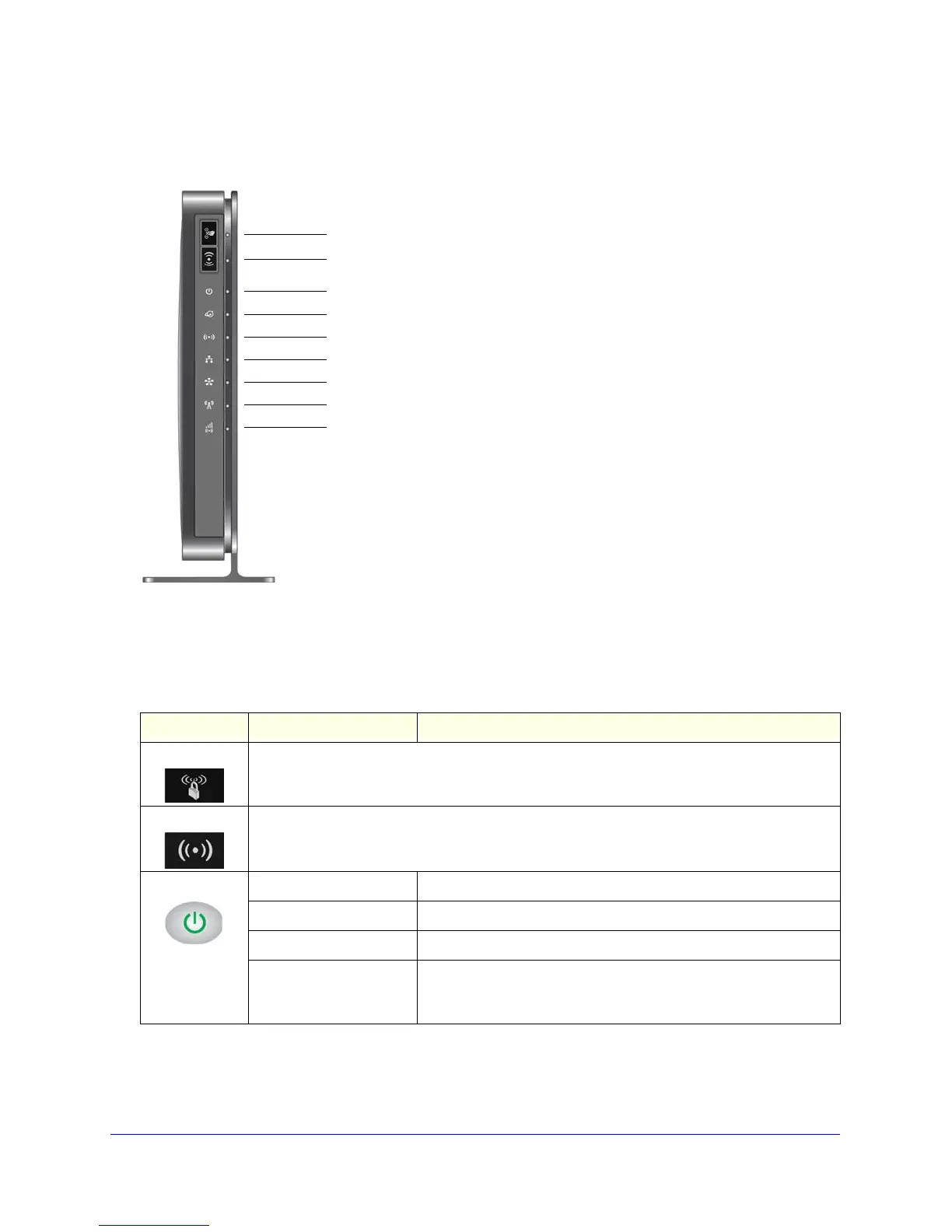

The router front panel shown in the following figure contains control buttons and status LEDs.
Figure 1.
You can use the LEDs to verify status and connections. The following table lists and
describes each LED and button on the front panel of the router.
Table 1. Front Panel Button and LED Descriptions
Button/LED Activity Description
WPS Press this button to open a 2-minute window for the router to connect with other WPS-enabled
devices. For more information about using the WPS method to implement security, see Using
Push 'N' Connect (WPS) to Configure Your Wireless Network on page 31.
Wi-Fi Turn the mobile broadband and Wi-Fi radios in the router on and off. Use the GUI to select
whether the mobile broadband radio or the Wi-Fi radio or both radios will be controlled by this
button. The default is the Wi-Fi radio only. Both radios are on by default.
Power Solid green The router is powered on and operating normally.
Solid amber POST (power-on self-test) in progress.
Off Power is not supplied to the router.
Restore Factory Settings
button
Press the reset button for 6 seconds. The Power LED lights briefly.
When the button is released, the LED blinks red three times and
then turns green as the router resets to the factory defaults.
Power
Signal Quality
Wi-Fi
2G/3G
WPS
Internet
LAN
Ethernet WAN
Mobile Broadband/Wi-Fi On/Off
