NETGEAR Nighthawk AX6 Series User Manual

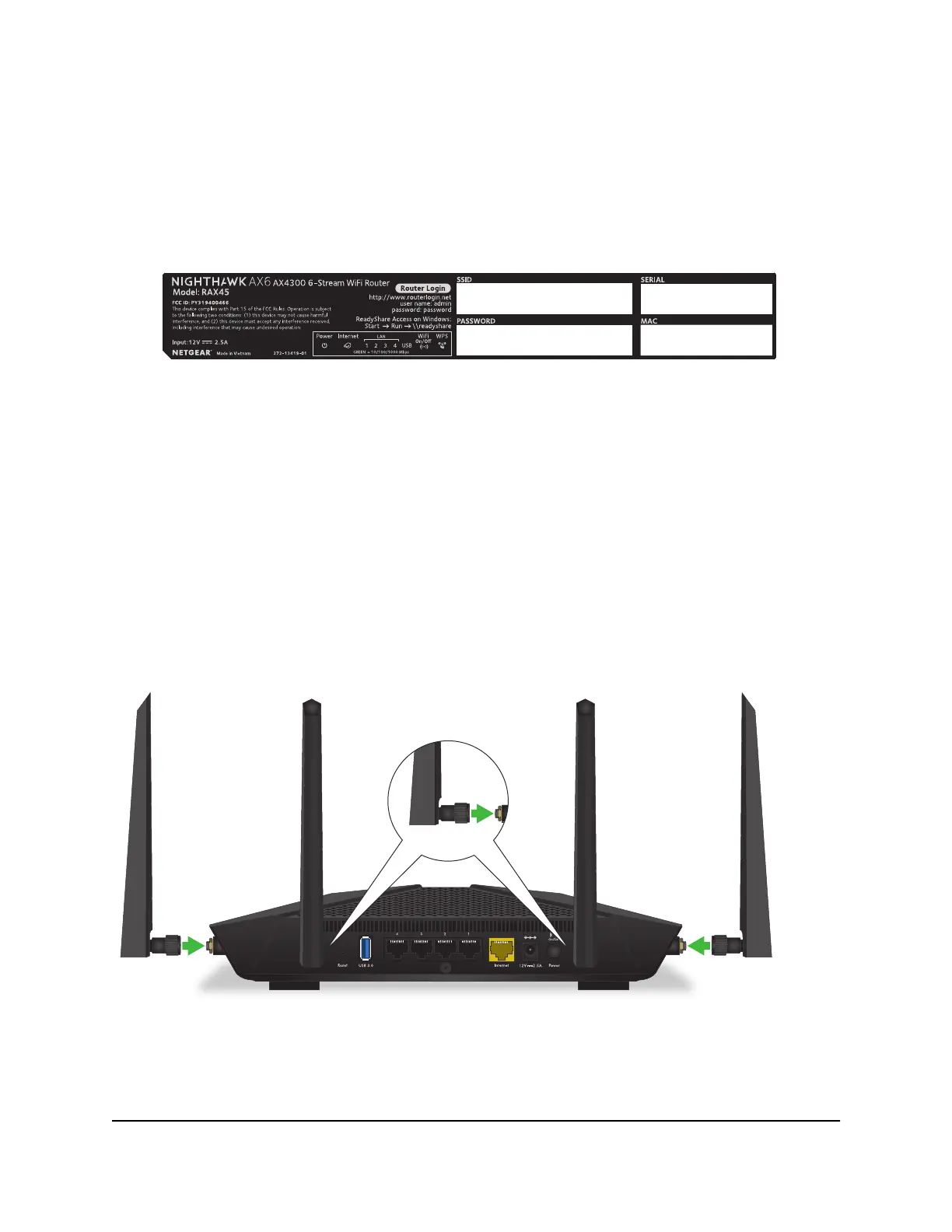

Router label
The router label shows the login information, WiFi network name (SSID), password,
serial number, and MAC address.
Figure 4. Router label
Attach and position the antennas
Before you install your router, attach the antennas to the router.
Note: Make sure to match the labels on the antennas with the labels on the router. The
antennas must be attached to the correct antenna post on the router.
After you are done attaching the antennas, position the antennas as shown.
Figure 5. Attach and position the antennas
User Manual13Hardware Setup
Nighthawk AX6 6-Stream AX4300 WiFi Router

NETGEAR Nighthawk AX6 Series Specifications

General

Beamforming	Yes
MU-MIMO	Yes
Model	RAX50
OFDMA	Yes
Processor	1.5 GHz quad-core
USB Ports	1 x USB 3.0
Security	Supports WPA3
Memory	512MB DDR3 RAM
WiFi Technology	Wi-Fi 6 (802.11ax)
Antenna	4 x external antennas
