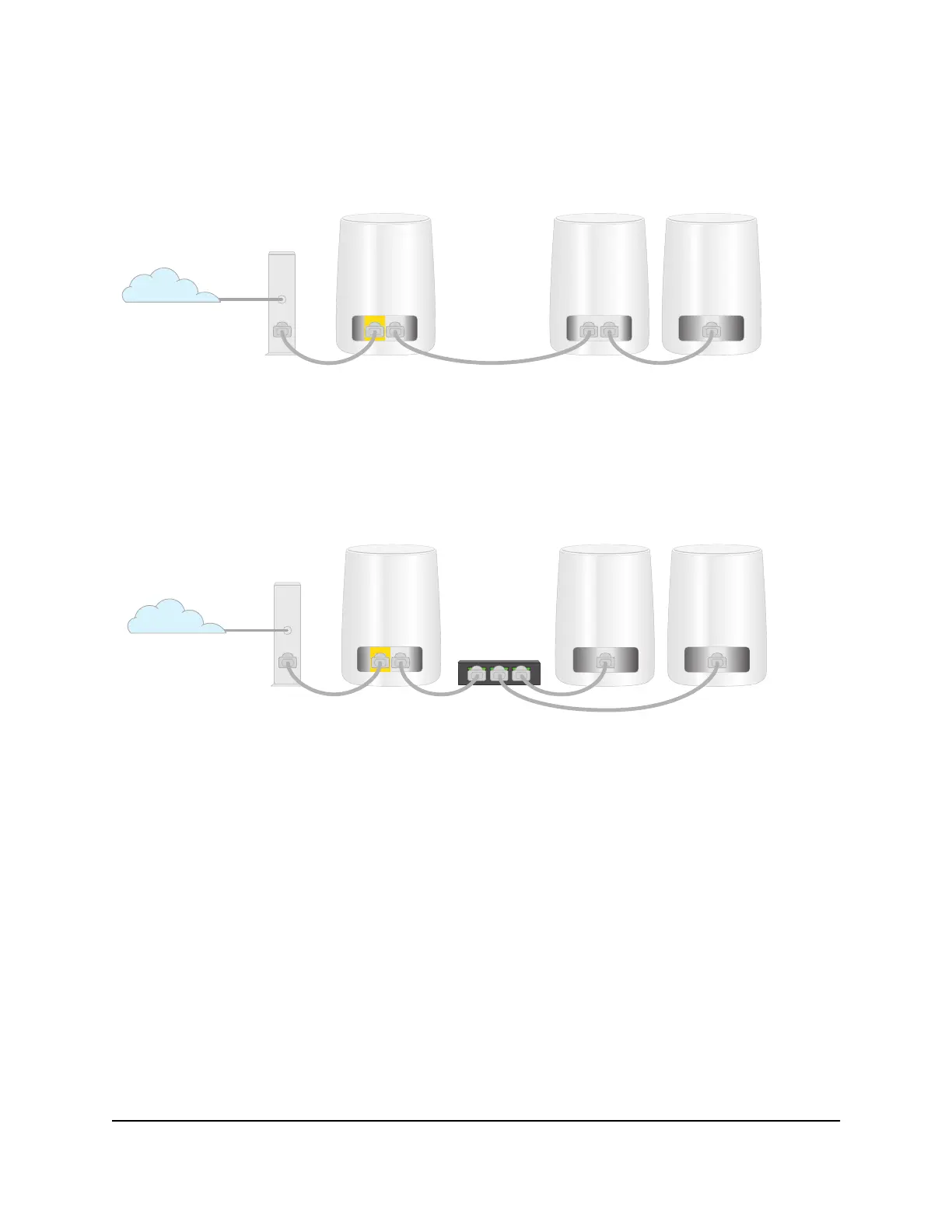

The following figure shows another way to connect your Orbi satellites to your Orbi
router using a daisy chain topology to create an Ethernet backhaul connection.
Internet
Router
Modem
Satellite 1 Satellite 2
Figure 5. Daisy chain topology: Satellite 1 connected to router and satellite 2 connected to satellite 1
The following figure shows how to connect your Orbi satellites to your Orbi router
through an Ethernet switch.
Switch
Internet
Router
Modem
Satellite 1 Satellite 2
Figure 6. Ethernet backhaul connection using a switch
User Manual23Overview and Setup
Whole Home Quad-Band Mesh WiFi 7 System
