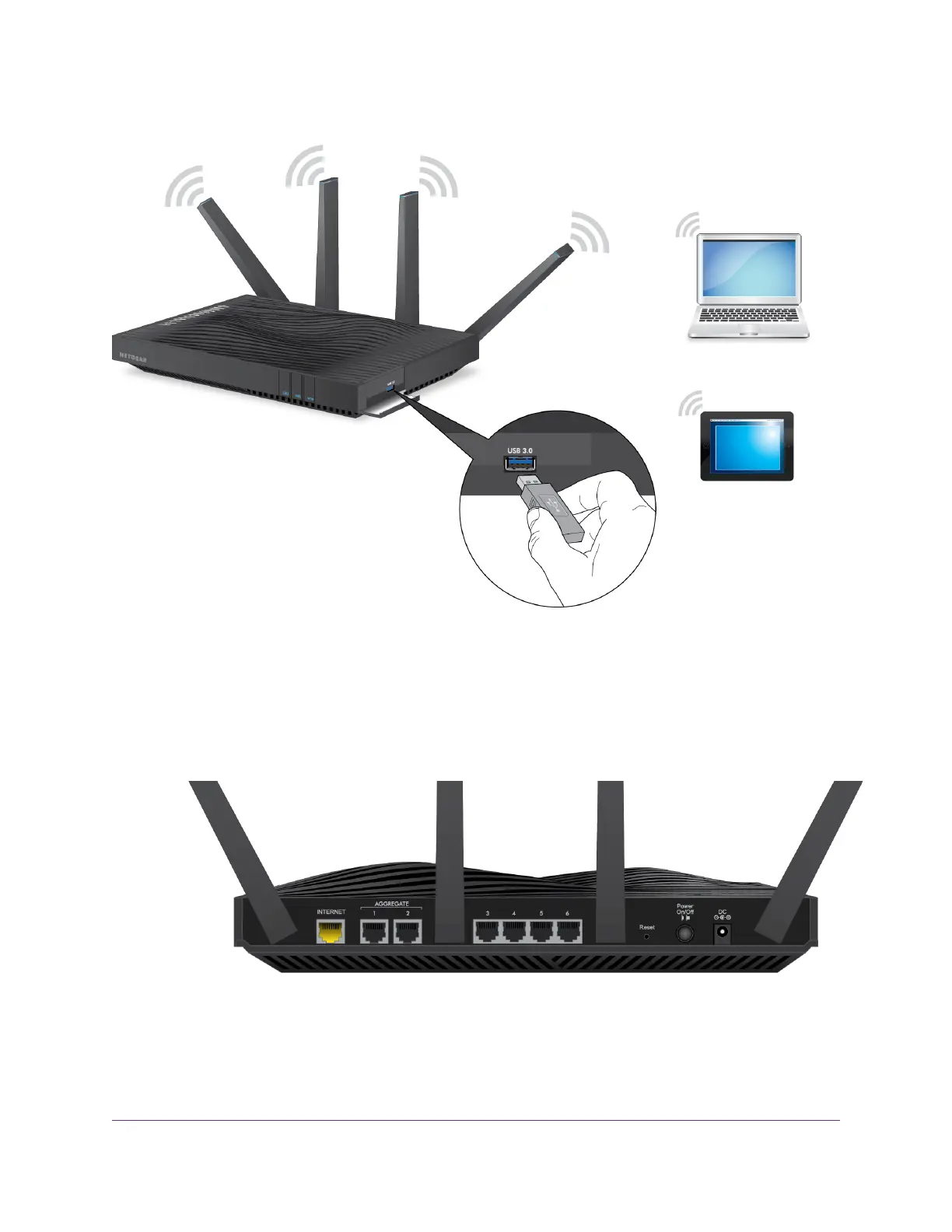

Figure 3. A USB 3.0 port is located on the right
Rear Panel
The rear panel connections and buttons are shown in the following figure.
Figure 4. Rear panel
You can use Ethernet AGGREGATE ports 1 and 2 to cable a device to the router that supports Ethernet port
aggregation. For information about Ethernet port aggregation, see Set Up Ethernet Port Aggregation on page 70 .
Hardware Setup
12
Nighthawk X8 AC5000 Tri-Band WiFi Router
