Getting to Know Your Wireless Router 3
Front Panel

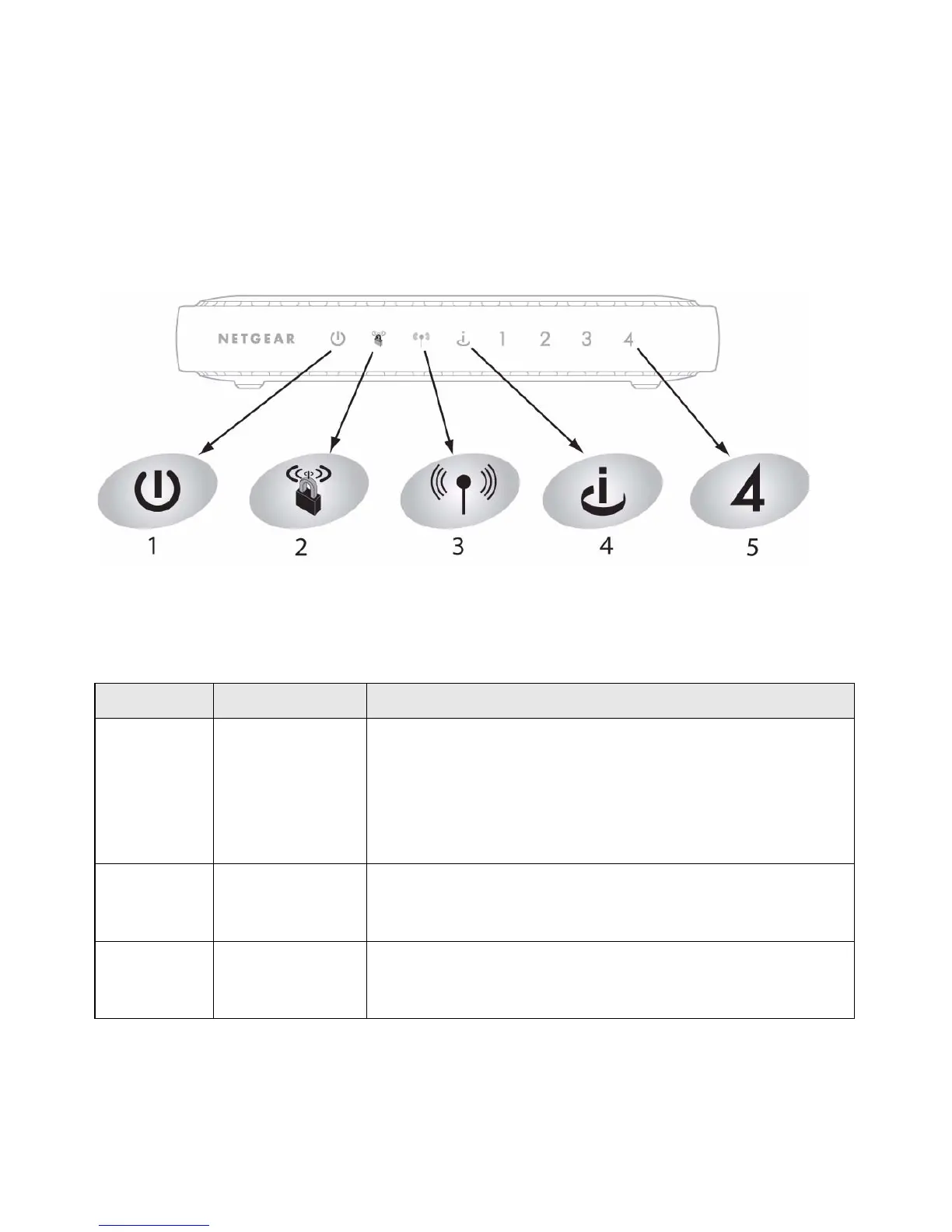

The router front panel, shown in Figure 2, contains status lights. (For more information on
interpreting the status lights, see “Verifying Your Connection” on page 17 and “Checking Basic
Router Functions” on page 30.)
You can use the status lights to verify various conditions.
Figure 2
Table 1. Status Light Descriptions
Label Activity Description
1. Power
Solid Amber
Solid Green
Blinking–Amber
Blinking–Green
Off
The router is performing the power-on self-test diagnostic.
The power is on and the router is ready.
A software update is in progress.
Firmware is corrupted. See “Checking Basic Router Functions” on
page 30 for instructions on restoring your router firmware.
Power is not being supplied to the router
2. Push 'N'
Connect
Solid Green
Blinking Green
Off
Indicates a (WPS) connection to a WPS-capable device.
WPS-capable device can associate with the router within 2 minutes.
No WPS connection exists.
3. Wireless
Solid Blue
Blinking Blue
Off
The wireless interface is enabled.
Data is being communicated over the wireless network.
The wireless interface is turned off.
