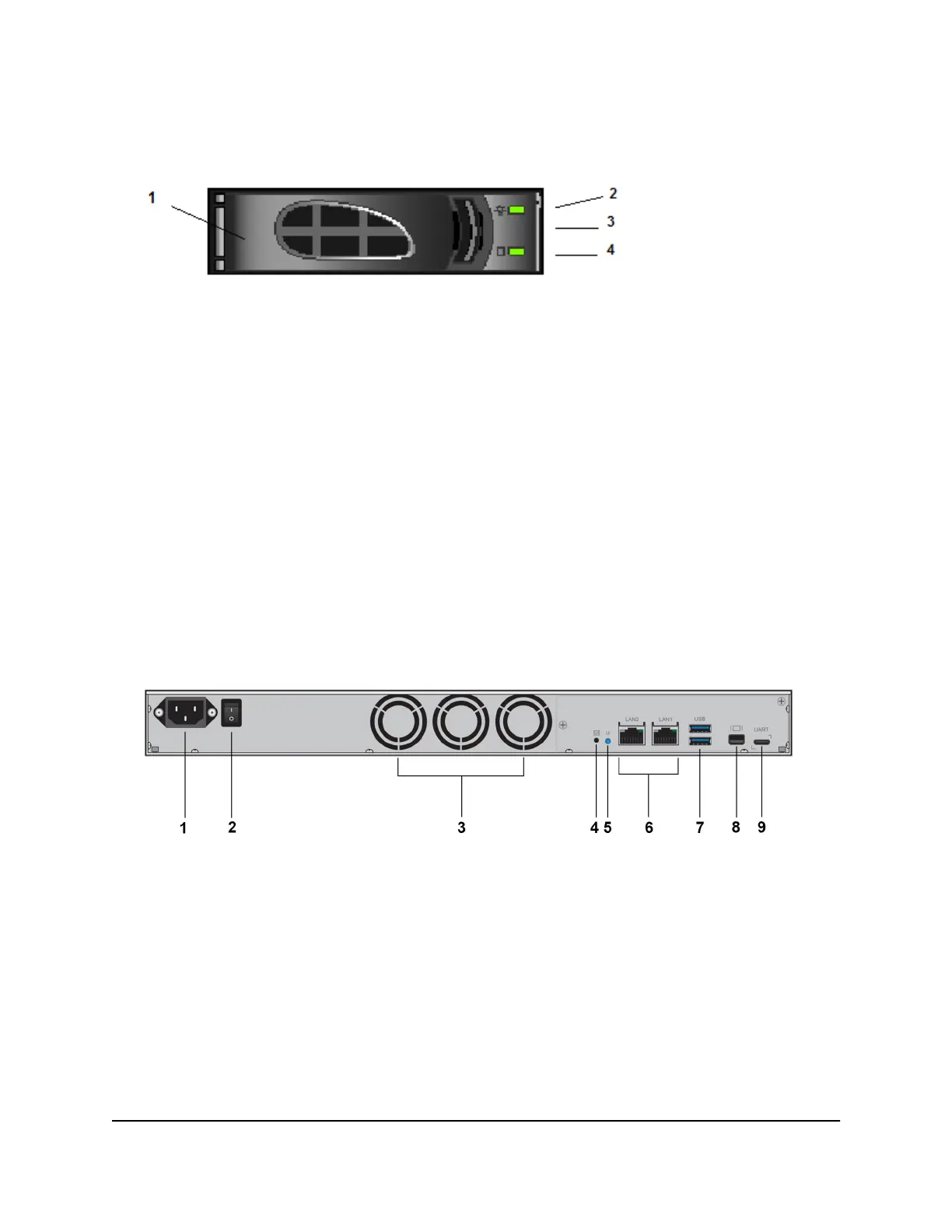

Figure 6. Drive bay
1. Disk tray handle
2. Disk Present LED
3. Disk tray release latch
4. Disk Activity or Fault LED
WARNING: No matter how many hard drives are installed in your system, ensure that
all drive trays remain in the drive bays to maintain proper airflow.
Rear Panel
The following figure shows the rear panel of the ReadyNAS 2304 storage system.
Figure 7. Rear panel
1. Power cable socket
2. Power switch
3. Three system exhaust fans
4. Unit Identifier (UID) button
5. Unit Identifier (UID) LED
6. Two 1-gigabit LAN ports with LED status indicators
7. Two USB 3.0 ports
Hardware Manual22ReadyNAS 2304
