3. Health LED
4. Power LED
5. 10GbE LED
6. GbE LED
7. Disk Drive Power LED
8. Disk Drive Activity and Fault LED
Each drive bay features a latch that releases the pop-out tray handle, as shown in the
following figure.

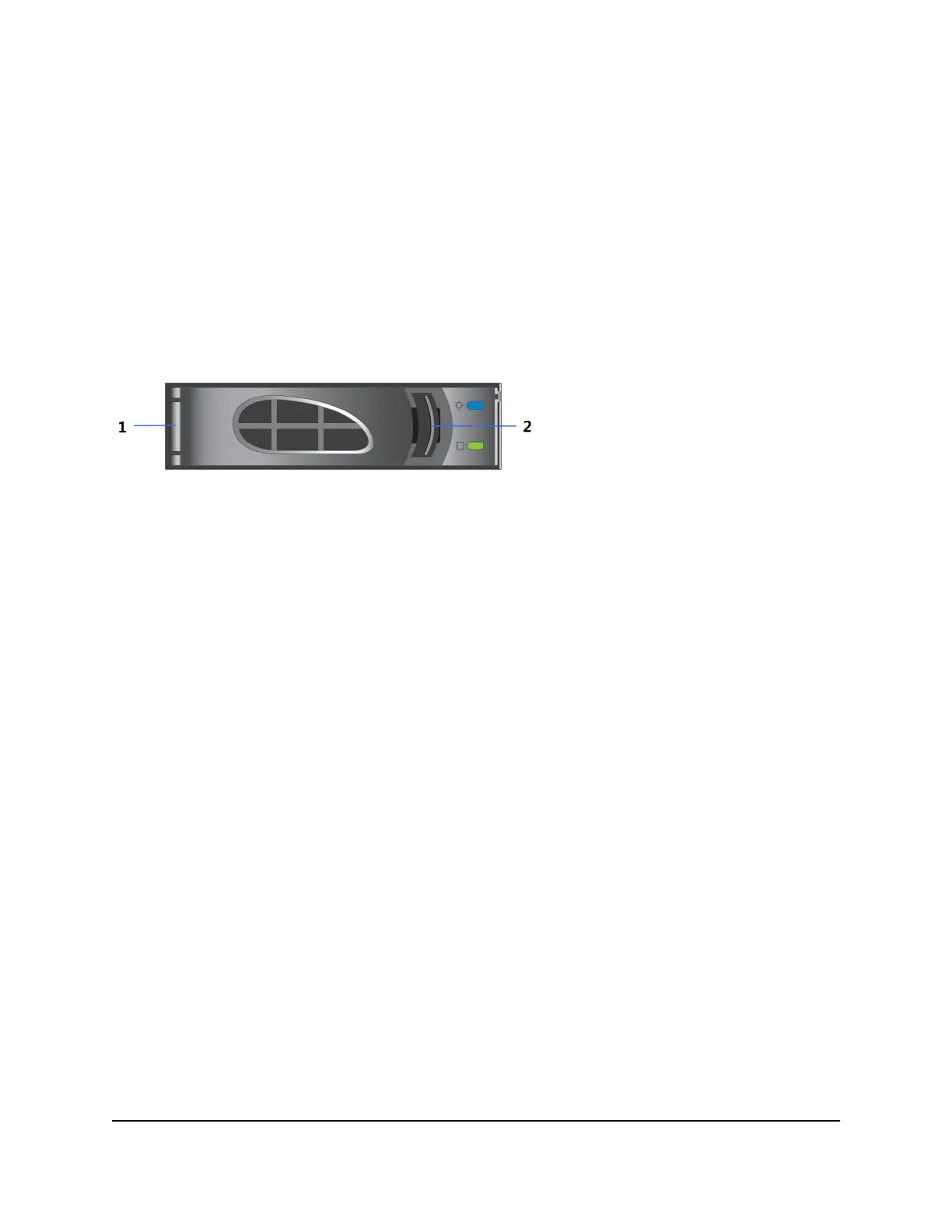

Figure 23. Disk tray handle and release latch
1. Disk tray handle
2. Disk tray release latch
WARNING: No matter how many hard drives are installed in your system, make sure
that all drive trays remain in the drive bays to maintain proper airflow.
Hardware Manual60ReadyNAS 3312, 3312 v2, 4312,
and 4312 v2
ReadyNAS OS 6
