Control Panel Status and Diagnostic Information

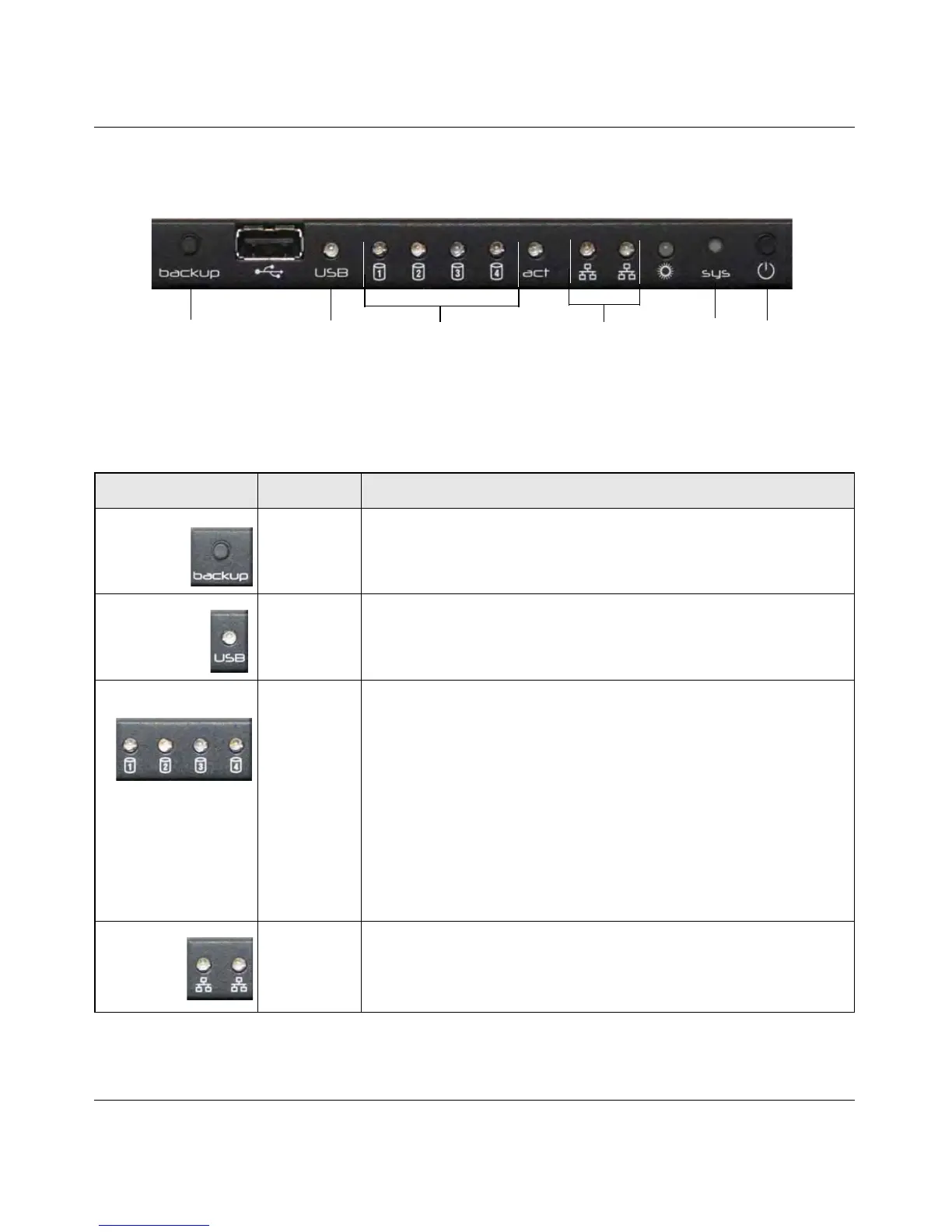

The function of each Control Panel item is described in the following table:
Figure 6-4
Table 6-1. LED Descriptions
Item Activity Description
1. Backup
Button.
Push button Backup: Push to initiate FrontView scheduled backup jobs.
Diagnostics: Toggles between boot menu options (see SYS Reset
below).
Boot Sequence: Press to initiate boot from external USB.
2. USB
Status
LED.
On (Green)
Blinking
(Green)
Off
On: A USB device is mounted.
Blink: USB device dismounting or scheduled backup running.
Off: USB device dismounted.
See SYS Reset below for other boot codes.
3. Disk LEDs.
On (Green)
Blink (Green)
Off
On: Disk installed
Blink: Disk resynching or disk failure.
“Marching” LEDs: volume expansion in progress.
Off: No disk installed
Diagnostics:
• 1 & 2 stay on if boot memory test fails
• 1 & 3 stay on if device not bootable
• Alternating between all Disk LEDs on and only Disk 2 LED on
means no disk detected.
• Alternating between all Disk LEDs on and only Disks 1 & 2 LED on
means boot failure, possible corrupted root.
• See SYS Reset below for other boot codes.
4.
LAN1
and
LAN2
Ports.
On (Green)
On (Amber)
Off
The LAN port is operating at 1,000 Mbps.
The LAN port is operating at 100 Mbps.
The LAN port is operating at 10 Mbps.
