NETGEAR SC101 Reference Manual

Reference Manual for the NETGEAR Storage Central SC101
2-4
v1.0, September 2005
Back Description
The Storage Central SC101 front and rear hardware functions are described on the back label
illustrated below.
The following table describes the rear label information:
• The power socket connects to the SC101 power adapter.
• The reset button is located between the Ethernet RJ-45 connector and the power socket.
Ethernet Status Light (Yellow) Ethernet LAN Link Activity Indicator
Off No power or no activity
On Powered on but no data traffic
Blink Data traffic

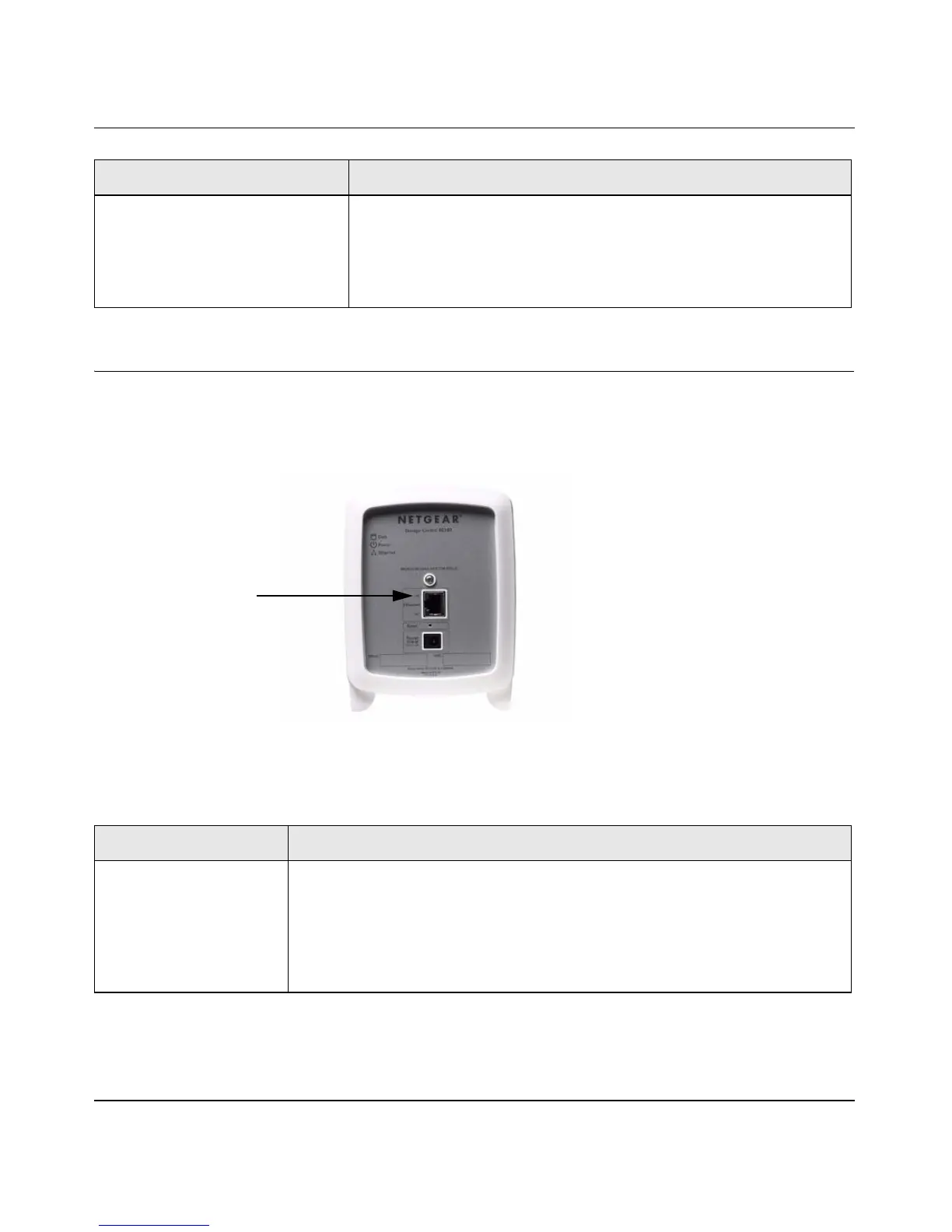

Figure 2-2
LED DESCRIPTION
Ethernet Status Ethernet LAN Link Activity Indicator
Off/
Green On
Indicates no power or no Ethernet link detected.
Ethernet link detected.
Yellow Off Indicates no power or no Ethernet link detected.
Yellow Blink Indicates data traffic on the Ethernet LAN.
ITEM DESCRIPTION
Ethernet Status LEDs

NETGEAR SC101 Specifications

General

Brand	NETGEAR
Model	SC101
Category	Storage
Language	English
