Reference Manual for the NETGEAR Storage Central SC101
3-3
v1.0, September 2005
Install the Hard Disk
Follow the steps below to install an IDE hard disk drive into you SC101.
Warning: Be sure to unplug the power cord from the SC101 before adding or removing
the disks. Failure to observe this precaution could render your disks useless.
1. Remove the cover.
a. Use a coin or screwdriver to
open the spring loaded cover
lock by turning it clockwise.
b. Remove the cover.

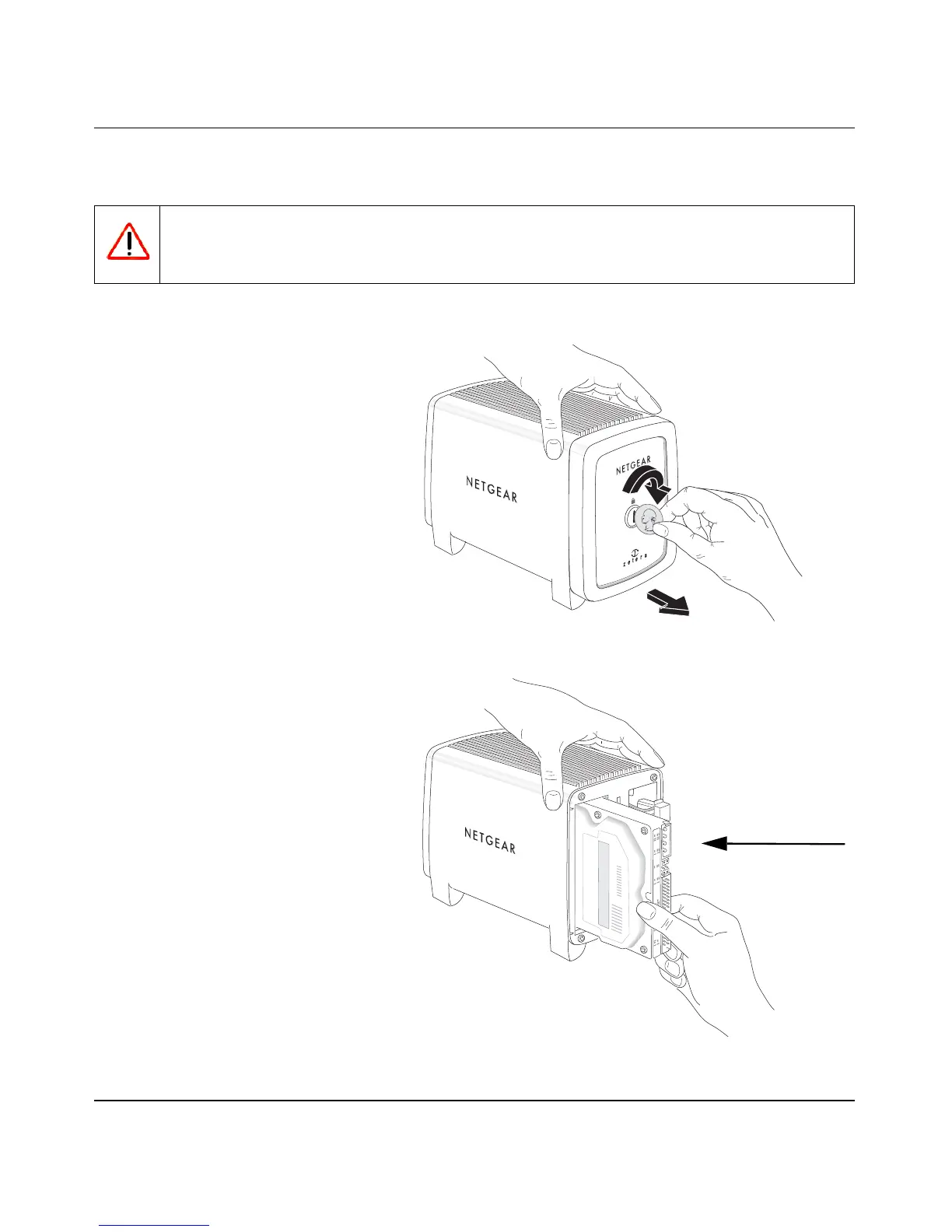

Figure 3-4
2. Insert the hard disk.
a. Position the hard disk so that
the D-shaped power socket is
on the top.
b. Slide the hard disk into either
slot.
Figure 3-5
D-shaped
power socket
