Hardware Features

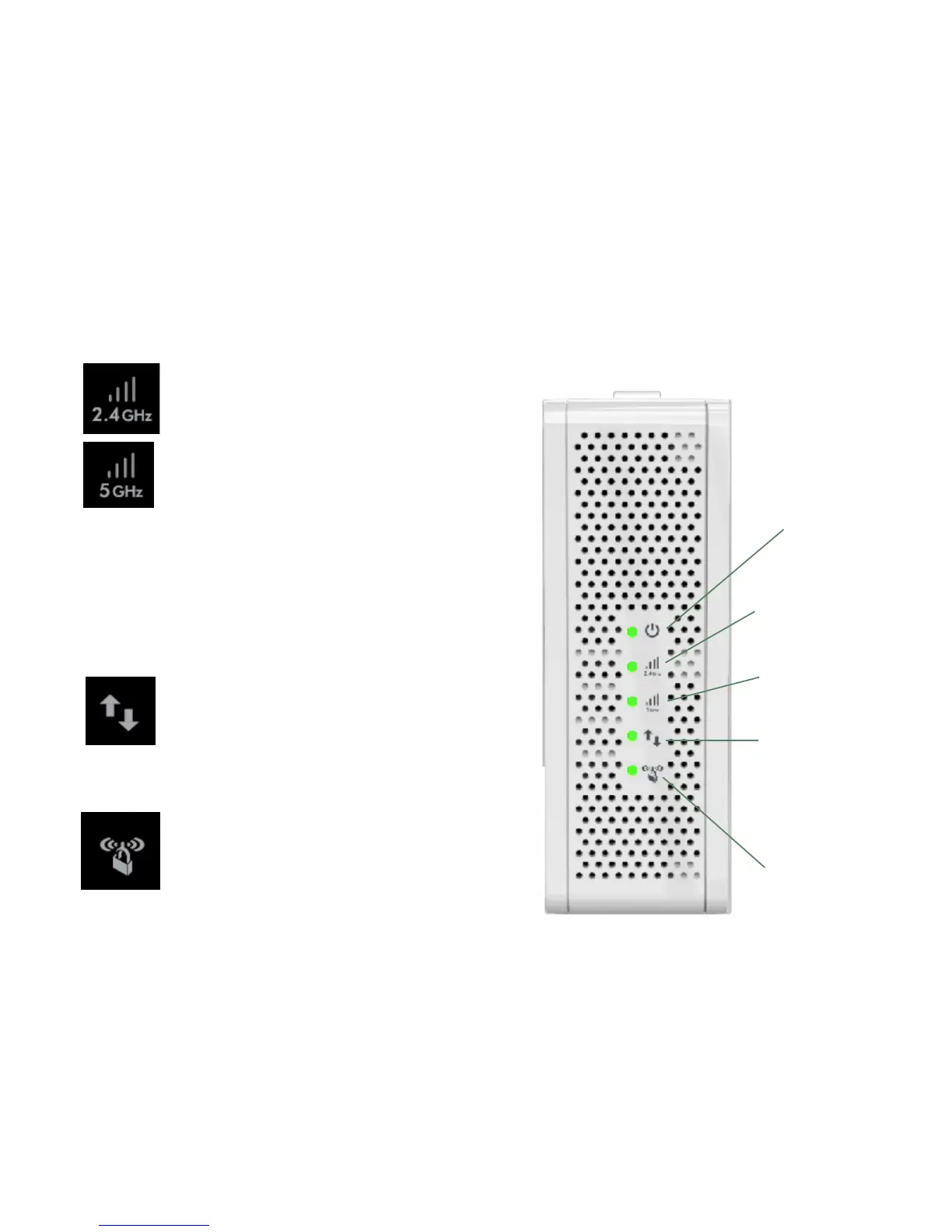

The LEDs on the front show how the extender is working.
Link Rate. Indicates a 2.4 GHz
or 5 GHz wireless connection
between the extender and a
router. The appropriate LED
lights to indicate the type of
connection:
• Green is best.
• Amber is good.
• Red is poor.
• Off. Not connected to router.
WPS
Link Rate
to
Extender
2.4 GHz
Wireless
Device
Link Rate
5 GHz
Power
On/Off
Wireless Device to Extender.
This LED is solid green when
the extender is connected to a
wireless device.
WPS. This LED indicates
a WPS wireless connection.
• Solid green. There is wireless
security (WPA or WPA2).
• Blinking green. A WPS
connection is in progress.
• Off. No wireless security.
