3DHD Home Theater Adapter WNHD3004 User Manual
Getting Started 1-3
v1.0, November 2010
Back Panel Connectors, Buttons, and Switches

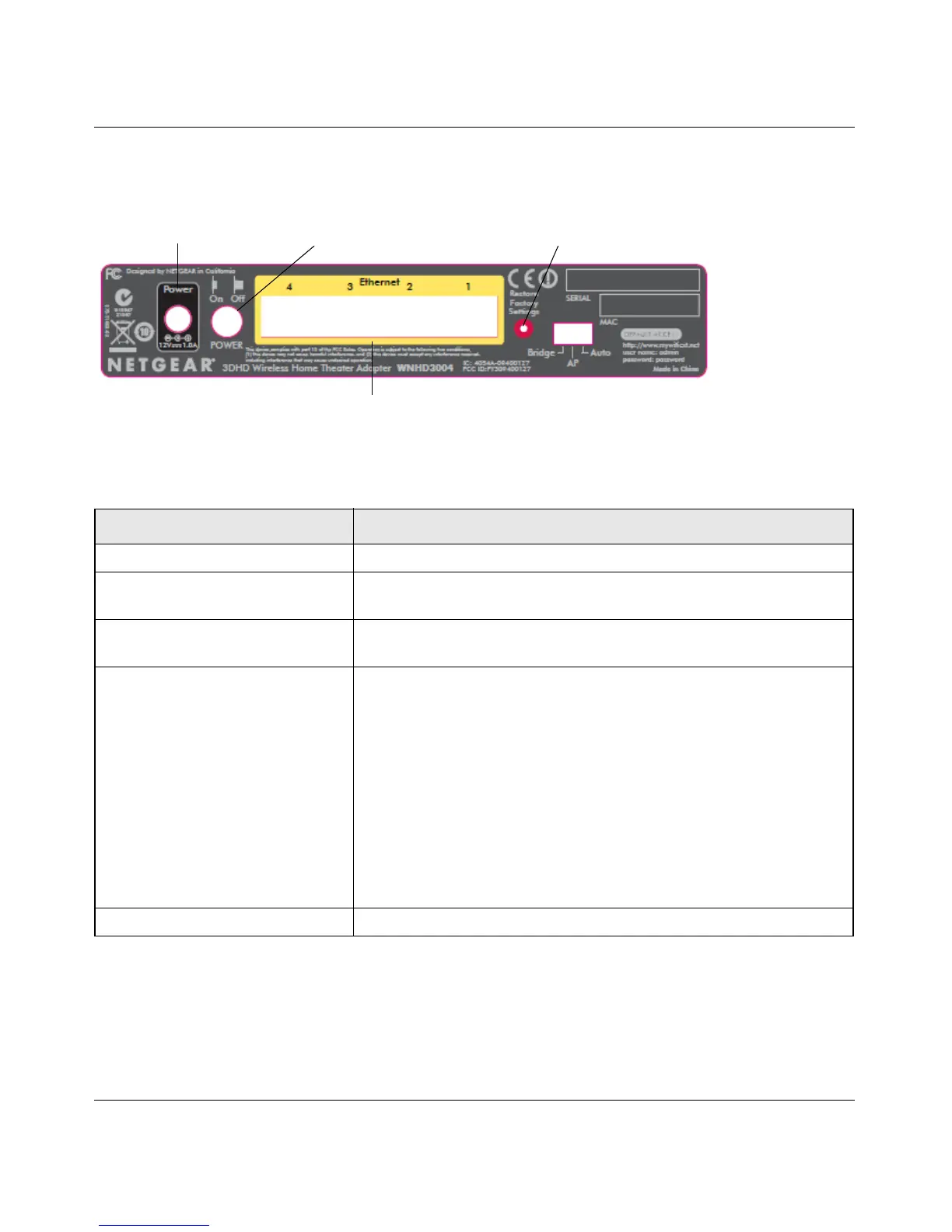

This illustration identifies the connectors and switches on the back of the unit.
Figure 1-2
Table 1-1. Connectors and Buttons
Connector or Button Description
Power connector Port for connecting the AC power adapter.
Four Mbps Ethernet ports For connecting the unit via Ethernet cables to other equipment like
switches, game consoles, media adapters, print servers, or a router.
Factory default reset button Restore factory settings button. Use a paper clip to press this button
for about 10 seconds to reset the unit to its factory default settings.
Mode switch settings • Auto. Auto is the factory default setting. In Auto mode, if it senses it
is connected to a router or gateway, it automatically sets itself to run
as an AP. Otherwise, if connected to any other wired device, it
automatically sets itself to run in Bridge mode.
• AP. When switched to AP (access point) mode, it acts as an access
point. In this mode, connect it to a router. The free Ethernet port can
be used to connect other equipment to your network via an Ethernet
cable.
• Bridge. In Bridge mode, connect devices to it via Ethernet cables
and they will connect to your wireless network. Typically, when a unit
is set to bridge mode, it will be paired with a WNHD3004 working in
AP mode.
On/Off button Press this button to turn the WNHD3004 on or off.
Power Connector
Ethernet Ports
On/Off Button
Factory Reset
