N300 Wireless Router with USB WNR2200 User Manual
Customizing Your Network Settings 5-10
v1.0, September 2010

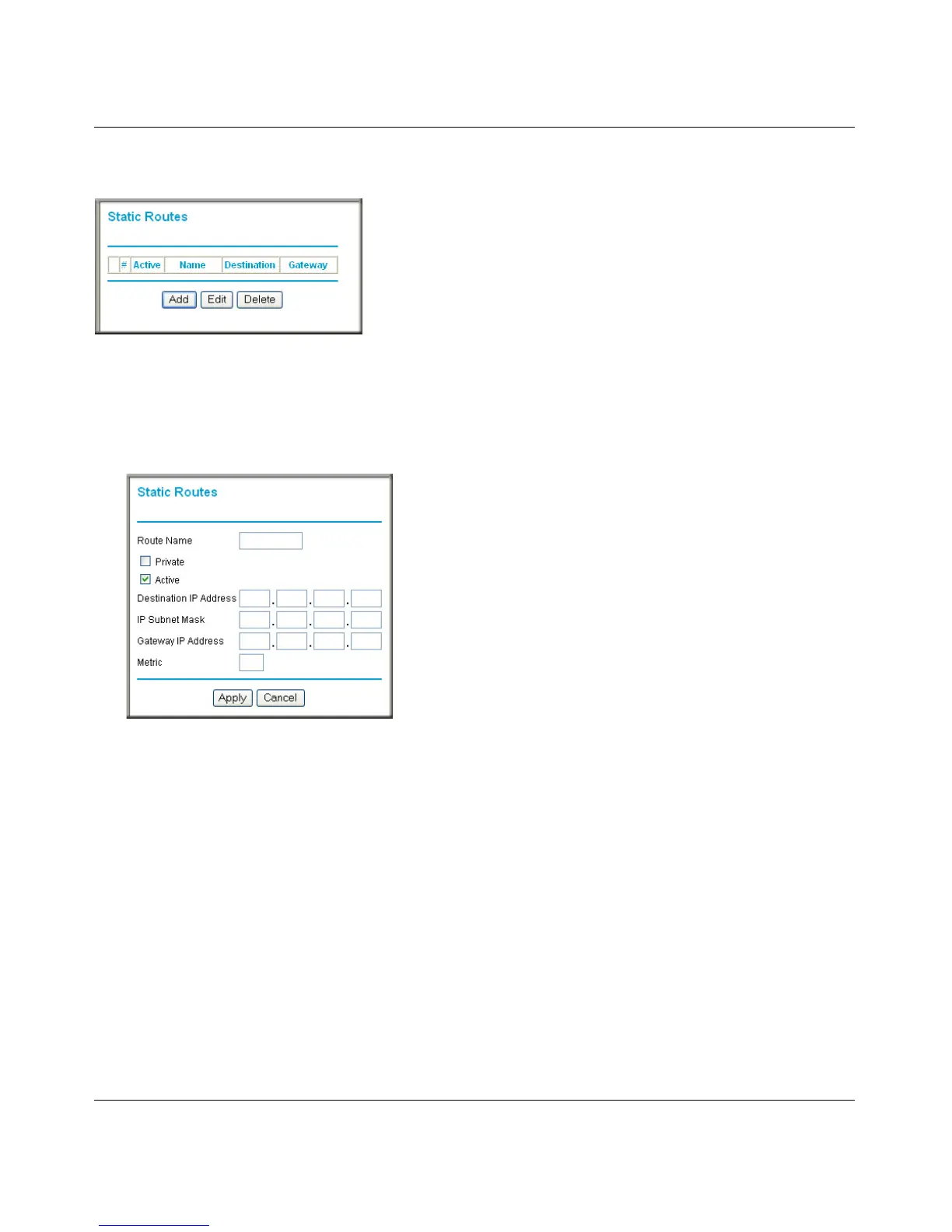

Select Static Routes under Advanced in the main menu. The Static Routes screen displays.
To add or edit a static route:
1. Click Add to open the Static Routes screen.
2. In the Route Name field, type a name for this static route. (This is for identification purposes
only.)
3. Select the Private check box if you want to limit access to the LAN only. If Private is selected,
the static route is not reported in RIP.
4. Select the Active check box to make this route effective.
5. Type the destination IP address of the final destination.
6. Type the IP subnet mask for this destination.
If the destination is a single host, type 255.255.255.255.
7. Type the gateway IP address, which must be a router on the same LAN segment as the
WNR2200 router.
Figure 5-4
Figure 5-5
