ADSL2+ Modem Router User Manual
22
VPI/VCI: enter the VPI/VCI provided by your ISP.
Channel Mode: Select “PPPoE” or “PPPoA”.
PPP Settings: Select “Continuous” or “Connect on demand” or “Manual”. (If the type is “connect
on demand”, you should also set the Idle Time.)
Encapsulation: For both PPPoA/PPPoE connection, you need to specify the type of Multiplexing,
either LLC or VC -Mux.
Default Route: Enable
Then click the “Add” button to setup a new connection, when the connection is setup, you can
show the router will obtain an IP address after the dial-up.

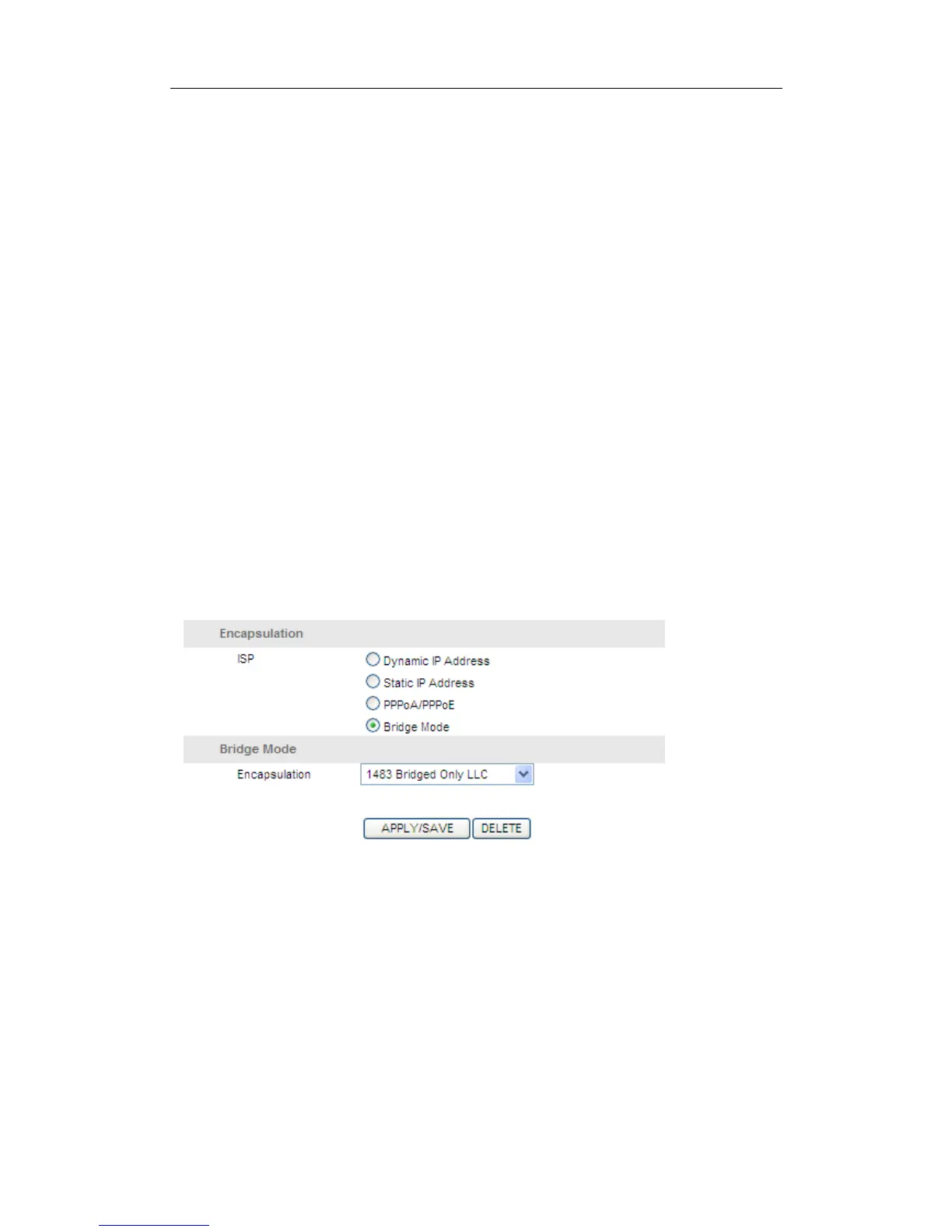

4. Bridge Mode
If you select this type of connection, the modem can be configured to act as a bridging
device between your LAN and your ISP. Bridges are devices that enable two or more
networks to communicate as if they are two segments of the same physical LAN.
Note: After you finish the internet configuration, please click APPLY/SAVE to make the settings
take effect.
4.3.1.2 Aoto PVC configuration
Click Auto PVC in the left pane, page shown in the following figure appears. In this page, you can
get PVC automatically through detecting function, and add or delete the PVC that you do not
want.
