ADSL2+ Modem Router User Manual
69

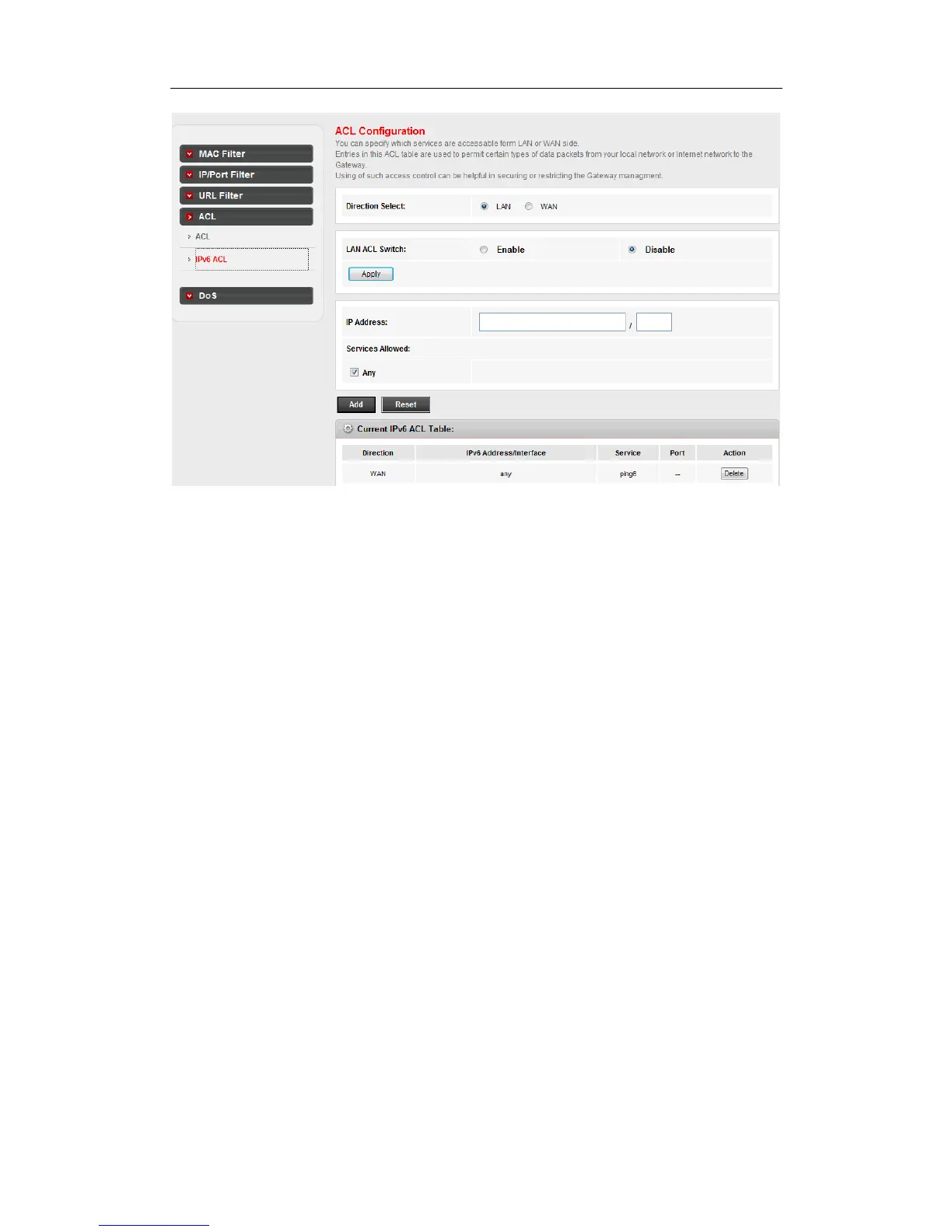

Direction Select: Select the router interface. You can select LAN or WAN. In this example, LAN is
selected
LAN ACL Switch: Select it to enable or disable ACL function.
IP Address: Enter the IPv6 address of the specified interface. Only the IPv6 address that is in the
same network segment with the IPv6 address of the specified interface can access the router.
Services Allowed: You can choose the following services from LAN: Web, Telnet, FTP, TFTP,
SNMP or PING. You can also choose all the services.
Add: After setting the parameters, click it to add an entryto the Current IPv6 ACL Table
Reset: Click it to refresh this page.
Set direction of the data packets to WAN, the page shown in the following figureappears
