Netis WF2322 User Manual

2
For step A)
For step B) to E)

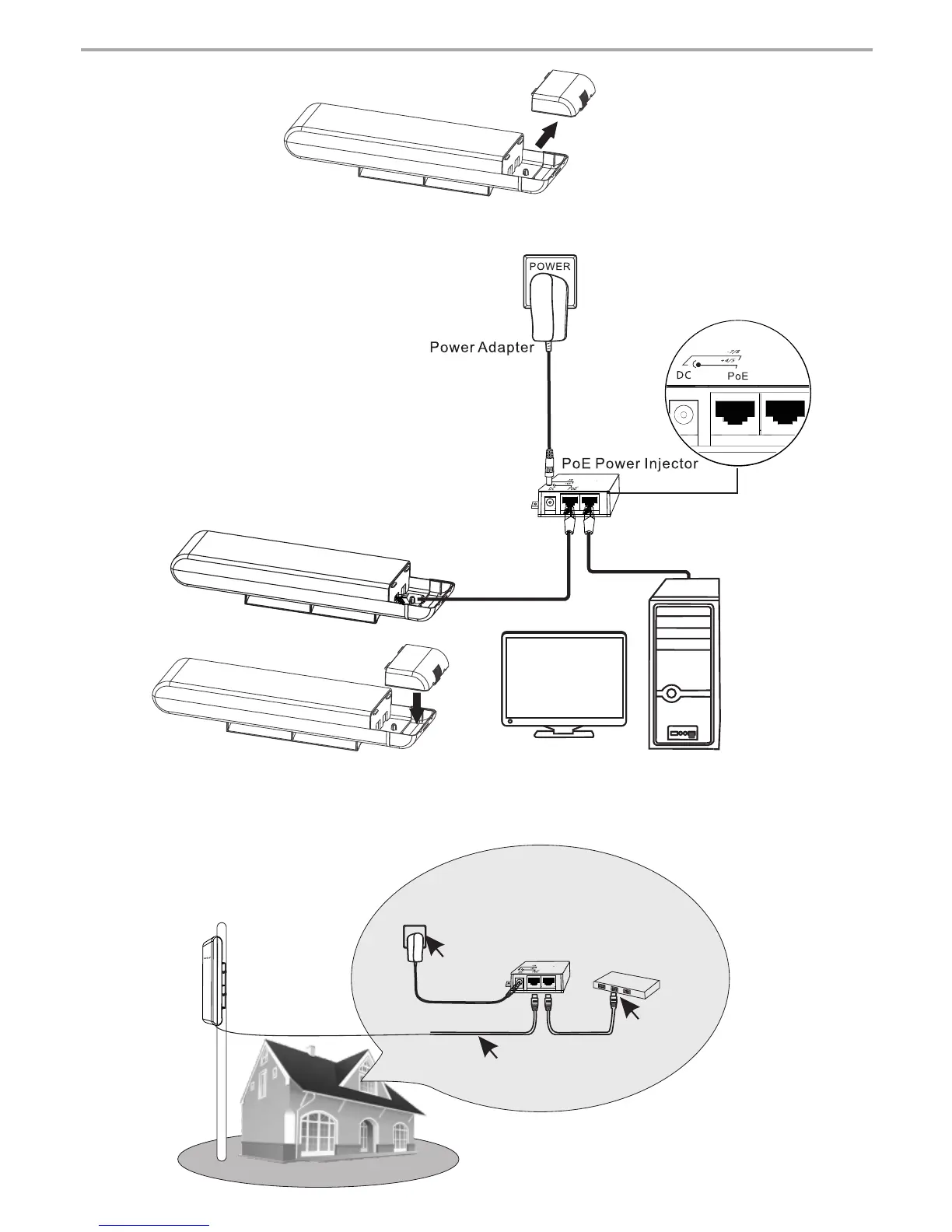

2. The connection will be similar to the figure below after the above steps are finished.
Computer
TO Switch or PC
Ethernet Cable
Main Electrical Supply
INDOOR
Power Cable
PoE Injector
POWER
netis Wireless High Power Outdoor AP Router Quick Installation Guide
LAN/WAN
LAN/WAN
LAN/WAN
Client

Netis WF2322 Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Transmitting power	30 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-99dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Supported network protocols	PPPoE, Static IP, L2TP, PPTP, WISP, DNS, PSE
Certification	FCC, CE
Product color	White
LED indicators	LAN, Power, WLAN
International Protection (IP) code	IP55
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	2
Security algorithms	128-bit WEP, 64-bit WEP, AES, SSID, TKIP, WDS, WPA-PSK, WPA2-PSK
Antenna features	Integrated antenna
Antenna gain level (max)	10 dBi
Output current	0.5 A
Output voltage	24 V
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 %
