Netis WF2322 User Manual

3. Configure the AP Router via Web Management Page
This device works in AP mode by default, so if you are intend to change the working mode or
any settings, please connect your computer to or Port of AP and set a static IP for
you computer as below steps:
3.1 Set a Static IP for PC
Manually set the IP address of the wired network adapter on your computer as below.
IP Address/ IPv4 Address: 192.168.1.x (1<x<255)
Subnet Mask: 255.255.255.0
Default Gateway/ Router: 192.168.1.1
For Windows 8/ 7/Vista
1) Go to “Settings” (for Windows 8)/“Start” (for Windows 7/Vista) > “Control Panel”.
2) Left-click on “Network and Internet” > “Network and Sharing Center” > “Change
adapter settings” (for Windows 8/ 7)/”Manage network connections” (for Windows Vista).
3) Right-click on “Local Area Connection” and left-click on “Properties”.
4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”.
5) Select “Use the following IP address” then left-click on “OK”.
For Windows XP/2000
1) Go to “Start” > “Control Panel”.
2) Left-click on “Network and Internet Connections” > “Network Connections”.
3) Right-click on “Local Area Connection” and left-click on “Properties”.
4) Double-click on “Internet Protocol (TCP/IP)”.
5) Select “Use the following IP address” then left-click on “OK”.
For MAC OS
1) Click on the “Apple” menu > “System Preferences”.
2) Click on the “Network” icon.
3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner.
4) In the top options, select “TCP/IP”.
5) In the pull-down menu next to “Configure IPv4” select “Manually”.
6) Fill in the “IPv4 Address/Subnet Mask/Router” parameters, and click “OK” then “Apply”.
4
netis Wireless High Power Outdoor AP Router Quick Installation Guide

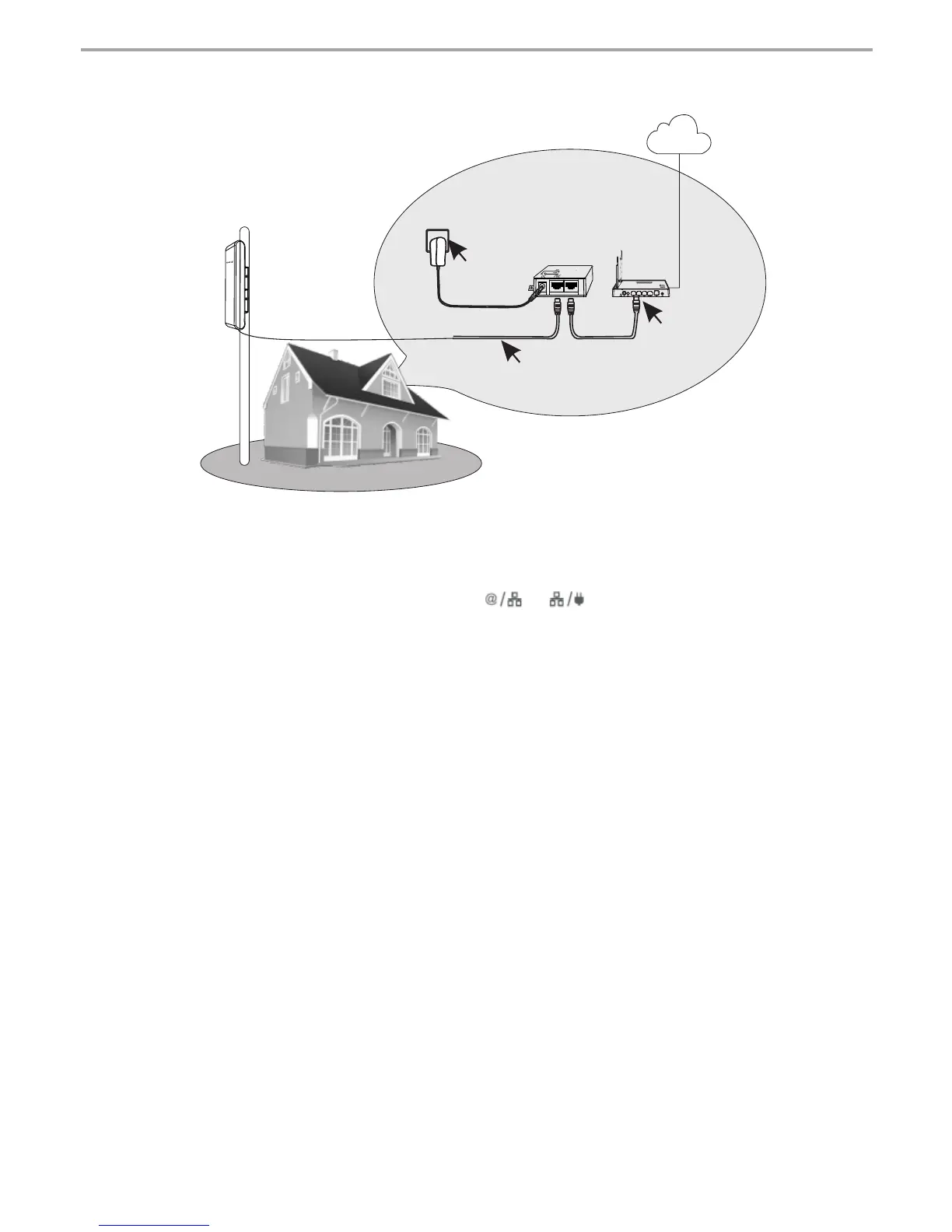

2. The connection will be similar to the figure below after the above steps are finished.
connect to xDSL or
Cable modem/router
Ethernet Cable
Main Electrical Supply
INDOOR
Power Cable
PoE Injector
POWER
Internet
LAN/WAN
AP/AP Router

Netis WF2322 Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Transmitting power	30 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-99dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Supported network protocols	PPPoE, Static IP, L2TP, PPTP, WISP, DNS, PSE
Certification	FCC, CE
Product color	White
LED indicators	LAN, Power, WLAN
International Protection (IP) code	IP55
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	2
Security algorithms	128-bit WEP, 64-bit WEP, AES, SSID, TKIP, WDS, WPA-PSK, WPA2-PSK
Antenna features	Integrated antenna
Antenna gain level (max)	10 dBi
Output current	0.5 A
Output voltage	24 V
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 %
