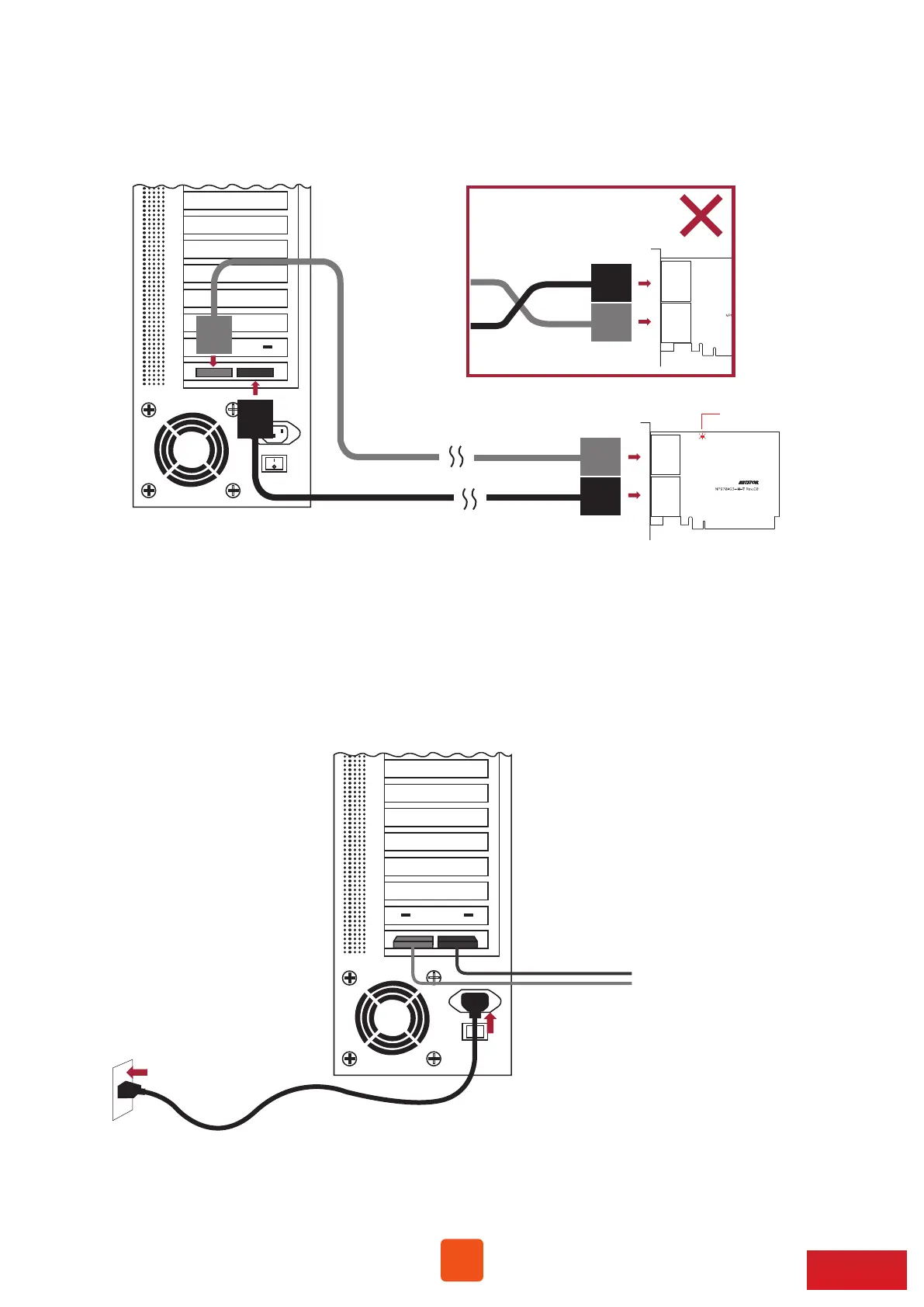

7. Connect one end of two data cables to PCIe connectors at rear of NA255A, and connect
the other end of two data cables to PCIe connectors on NP970AG3-H host card in computer.
8. Connect one end of power cord to NA255A’s power receptacle and the other end of power
cord to grounded outlet or power strip.
Note: Make straight cable connection between target card
in NA255A and host card in computer with mark ×8 to ×8,
and ×16 to ×16. Do NOT make cross cable connection.
X8
X16
NP970AG3-H Host card
Host - Red LED
X8X16
X8
X16
