Netstor NA255A - Switches Function and Location on NA255 A Slot Board

6
Go Top ↑
FAN SPEED HIGH
FAN SPEED LOW
NP952AG3 Rev.A0
SW1
。To set NA255A as Gen3 mode, turn switch to left position. (default)
。To set NA255A power on/off manually, turn SW2-1 switch to OFF position.
SW2-1
。To set NA255A power on/off by host computer, turn SW2-1 switch to ON position. (default)
。To set NA255A power on/off manually, turn SW2-1 switch to OFF position.
SW2-2
。To set 3.5 x 3.5 cm cooling fan speed on backplane to high,
turn SW2-2 switch to ON position.
。To set 3.5 x 3.5 cm cooling fan speed on backplane to low,
turn SW2-2 switch to OFF position. (default)

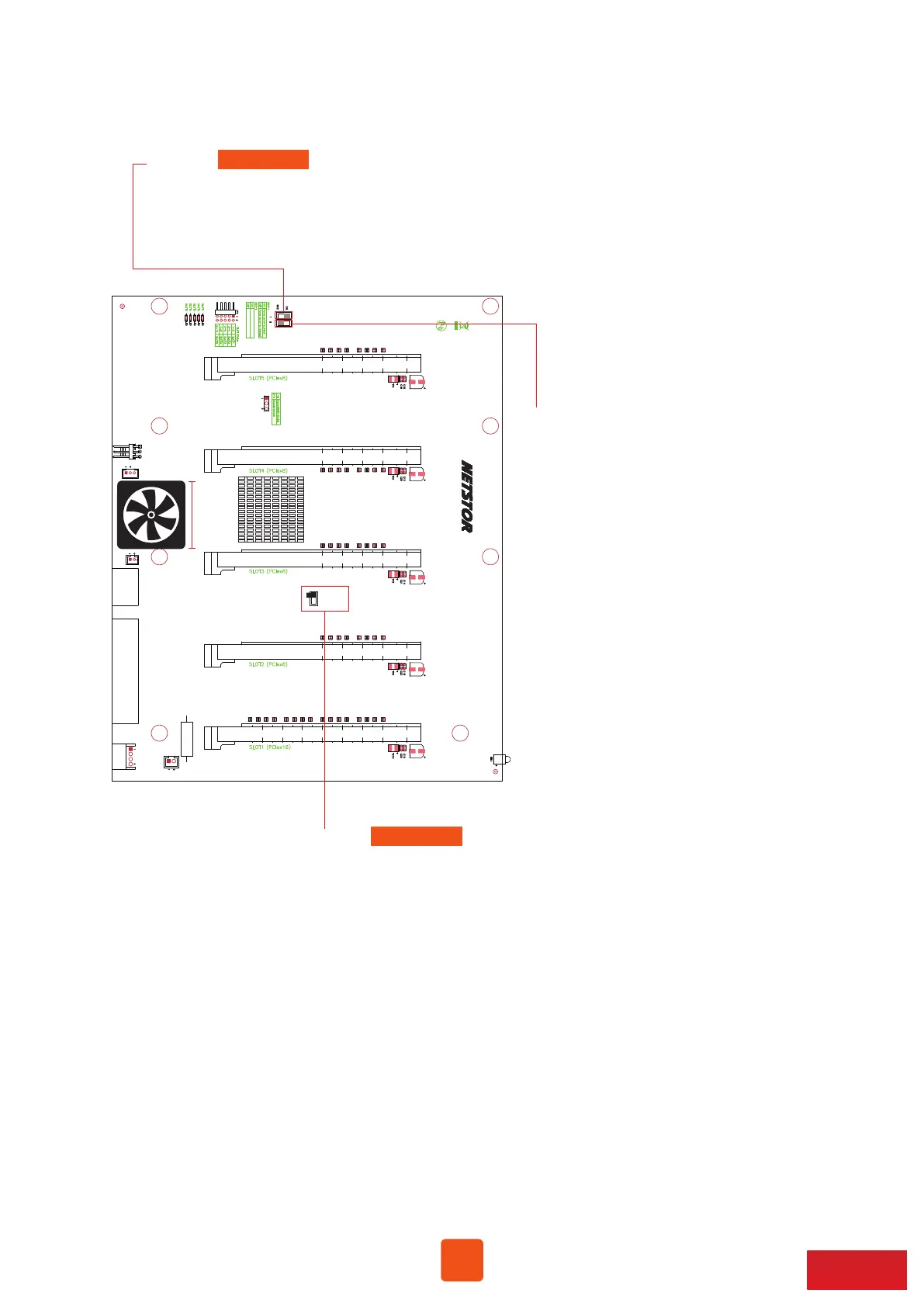

2.3 Switches Function and Location on NA255A Slot Board
Gen3
Gen2
※ SW2-1 and SW2-2 switches are near slot 5 on backplane.
3.5 x 3.5 cm
