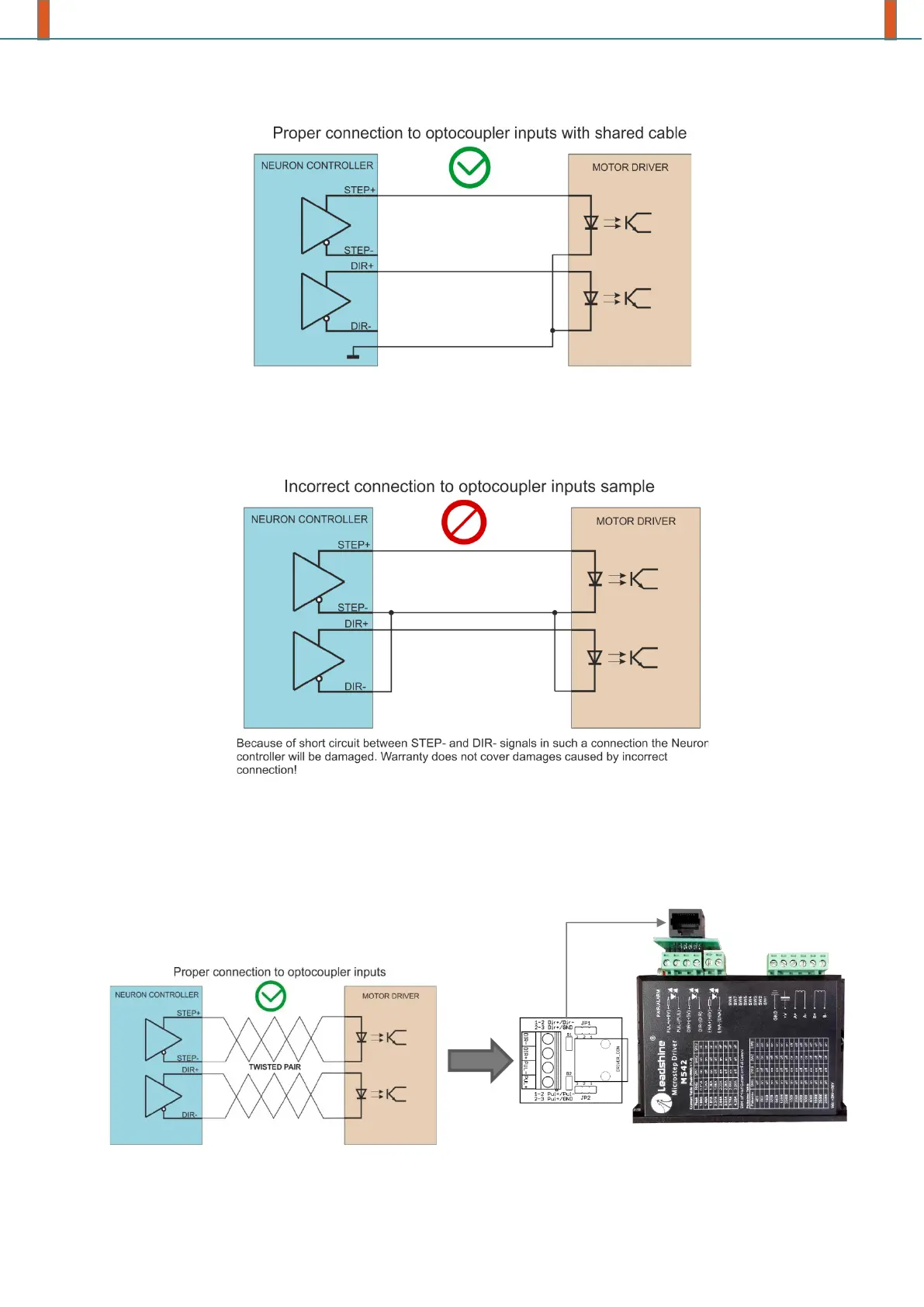

In this case, we do not use twisted cable and that is why the connection is more exposed to
the influence of interferences.
It is important to do not connect STEP- and DIR- pins with GND of the device because it
will cause short circuit and output stages damage.
THC kit has a special adapter PCB for connecting Neuron differential Pulse/Dir output to the
motor driver.
Set JP1, JP2 jumpers to 1-2 pins for differential connection:
