NEURON THC User Manual

USER MANUAL
Plasma system interface module
It provides precise, scaled feedback of the plasma arc voltage to the control module. It also
provides a convenient control signal interface to the Neuron.THC.
Operator Control Module
The Operator Control Module includes screw terminals for connection “Cutting Run/Stop” switch,
“Torch Up”, “Torch Down” buttons and an installed rotary/push knob selector for THC setup and
control.
Specifications
Input power
12V DC, 0.8A
Operating temperature
-10º C to 40º C
Operating humidity
95% relative humidity
Pulse/Dir interace
Open collector, protected +5V 100mA
Ethernet communication
Shielded RJ-45 Cat-5e, Up to 100 m (4-wire Cat-
5e), I/O transmission speed 10/100 Mbps auto-
negotiation
Parallel digital input
NO/NC dry contact
Lifter limit switches
Home switch, IHS switch and Ohmic sensor
Maximum Z axis speed
15000 mm/min
Voltage divider ratio
10:1(internal), 20:1 (Hypertherm cutter)
Arc voltage range
25-250V
Warranty
1 year

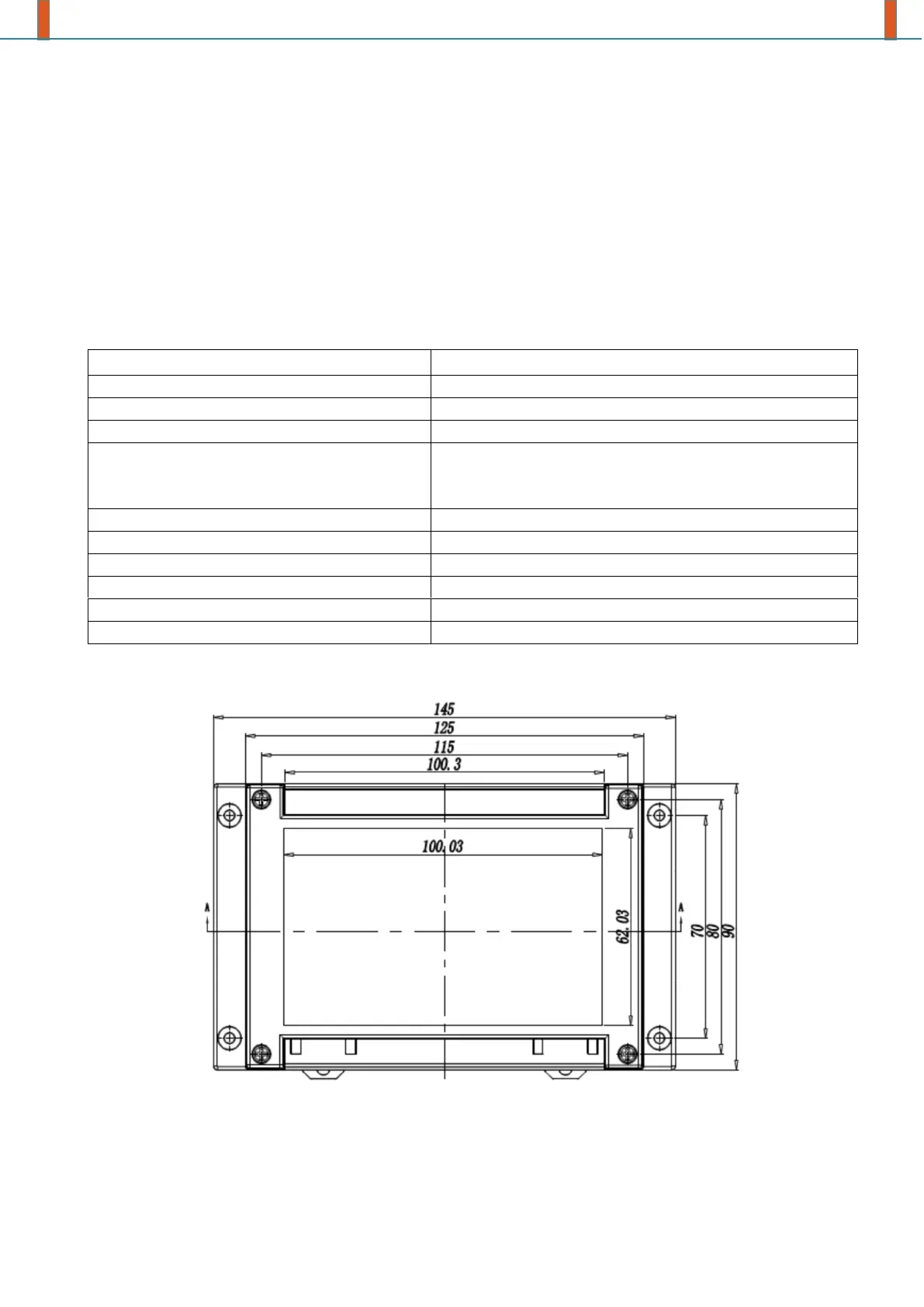

Control module has a size 145x90x45 mm with DIN mounting standard and can be easily
embedded inside the CNC box.
