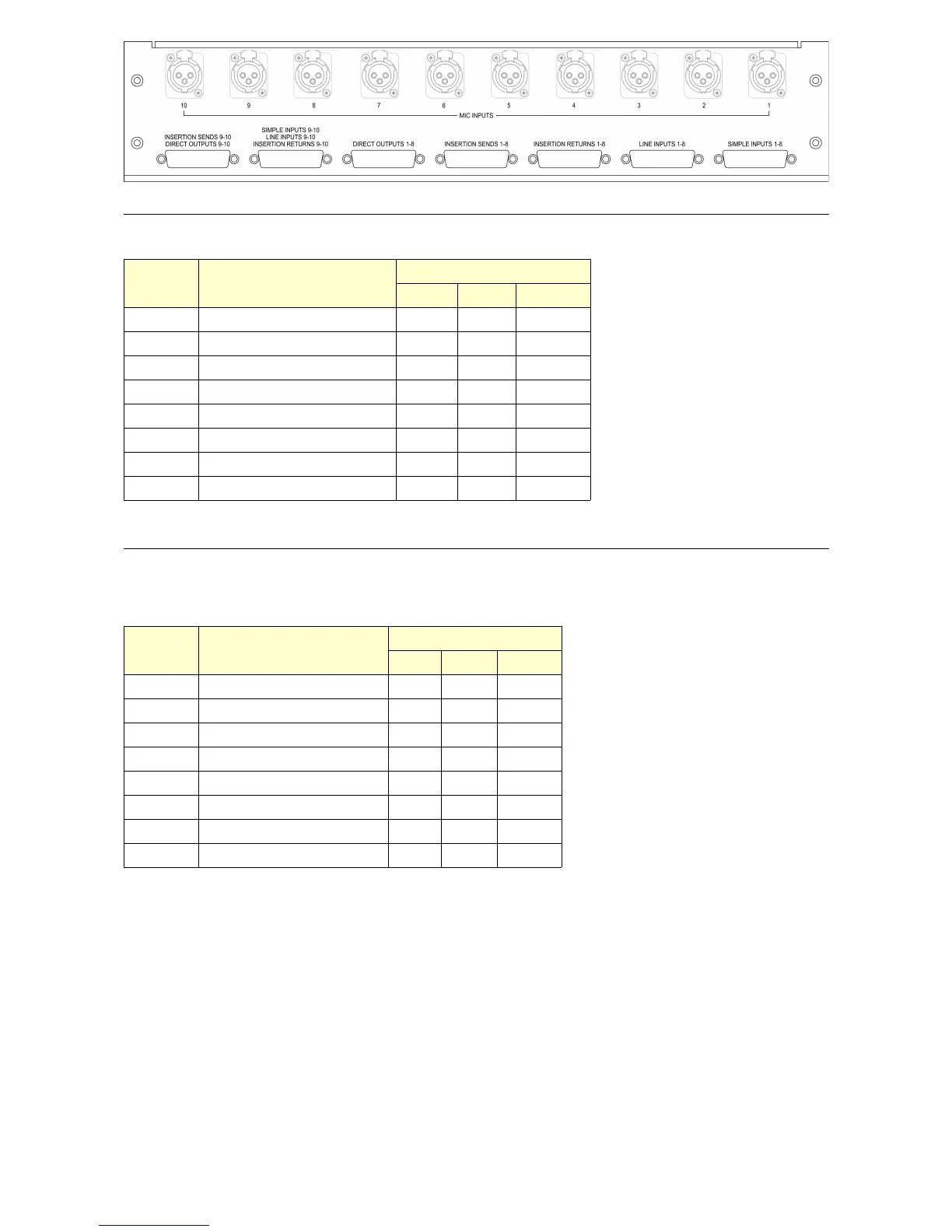

Neve BCM10/2 MK2 - Simple I;Ps 9 -10, Line I;Ps 9 -10, Insertion Returns 9 -10; Channel Insert Send 9 - 10, DAW Send (Direct O;P) 9 -10

Simple I/Ps 9 -10, Line I/Ps 9 -10, Insertion Returns 9 -10
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
1 Channel Insert Return 9 24 12 25
2 Channel Insert Return 10 10 23 11
3 Line I/P 9 21 9 22
4 Line I/P 10 7 20 8
5 Simple I/P 9 18 6 19
6 Simple I/P 10 4 17 5
Channel Insert Send 9 – 10, DAW Send (Direct O/P) 9 -10
(Insert sends and the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
1 Channel Insert Send 9 24 12 25
2 Channel Insert Send 10 10 23 11
3
4
5
6
7 DAW Send 9 15 3 16
8 DAW Send 10 1 14 2
- 13 -
