Neve BCM10/2 MK2 - Monitor Section Connectivity; XLR Output Pin Assignments; Direct and External Input Pin Assignments

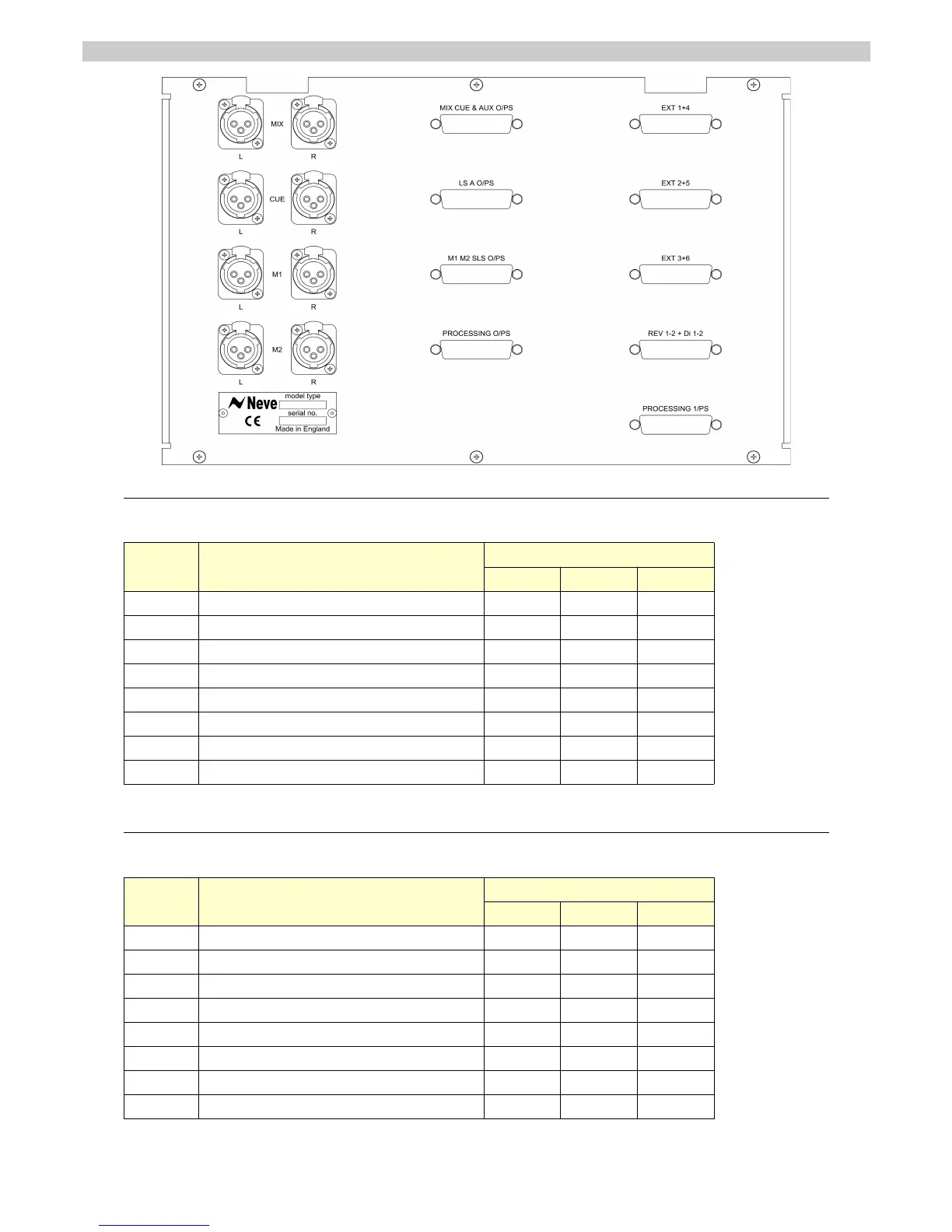

Monitor Section Connections
XLR O/Ps
(XLR PLG)
Signal Name
Pin
Hi Lo Screen
1 Mix O/P L 2 3 1
2 Mix O/P R 2 3 1
3 Cue O/P L 2 3 1
4 Cue O/P R 2 3 1
5 LS O/P M1 L 2 3 1
6 LS O/P M1 R 2 3 1
7 LS O/P M2 L 2 3 1
8 LS O/P M2 R 2 3 1
Direct & External Inputs
(25-way D-type SKT) Ext 1 & 4
Signal Name
Pin
Hi Lo Screen
1 EXT 1 L 24 12 25
2 EXT 1 R 10 23 11
3 EXT 1 C 21 9 22
4 EXT 1 S 7 20 8
5 EXT 1 LS 18 6 19
6 EXT 1 RS 4 17 5
7 EXT 4 L 15 3 16
8 EXT 4 R 1 14 2
- 7 -
