New Holland 200 Series - Loader Arm Pivot Points, Coupler Pins, and Cylinder Pins

7-MAINTENANCE
Loaderarmpivotpoints,couplerpins,andcylinderpins
UseTUTELAMOL YGREASEGR-75every10hoursofoperation.Lowerpinsmayrequiremorefrequentserviceinter-
valsifsubmergedinwater.

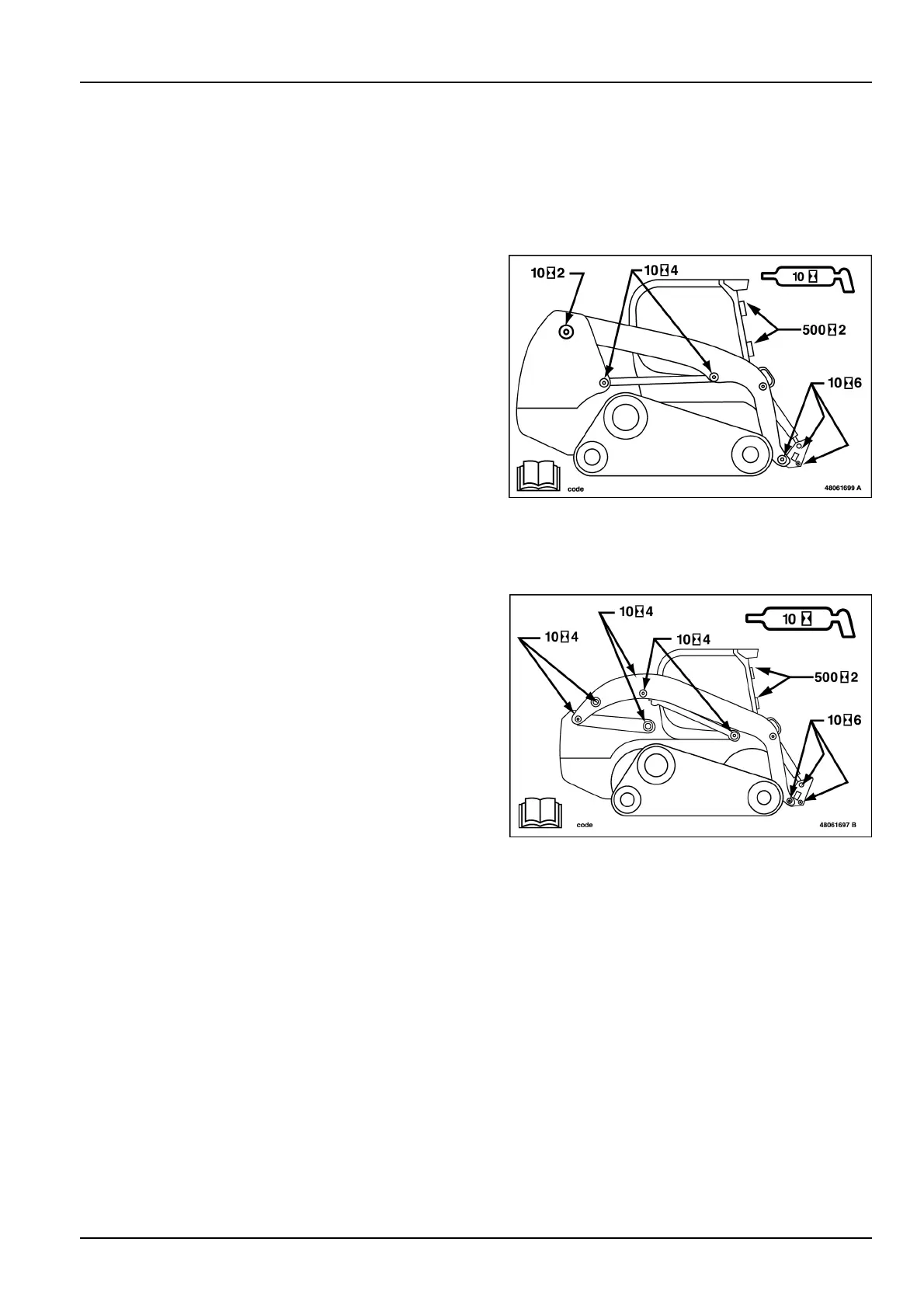

Radialliftmachines
NOTE:Alloftheloaderarmlubricationpointsareeasilyaccessiblewiththeloaderarmdown.
1.Lowertheloaderarmsandtiltthecouplerforward.The
attachmentdoesnotneedtoberemoved.
2.Cleanthegreasettingsbeforegreasing.
3.Greasetheloaderarmpivotpoints,couplerpins,and
cylinderpins.
4.Repeatontheothersideofthemachine.
48061699A1
Verticalliftmachines
NOTE:Alloftheloaderarmlubricationpointsareeasilyaccessiblewiththeloaderarmdown.
1.Lowertheloaderarmsandtiltthecouplerforward.The
attachmentdoesnotneedtoberemoved.
2.Cleanthegreasettingsbeforegreasing.
3.Greasetheloaderarmpivotpoints,couplerpins,and
cylinderpins.
4.Repeatontheothersideofthemachine.
48061697B2
